🧾 Overview

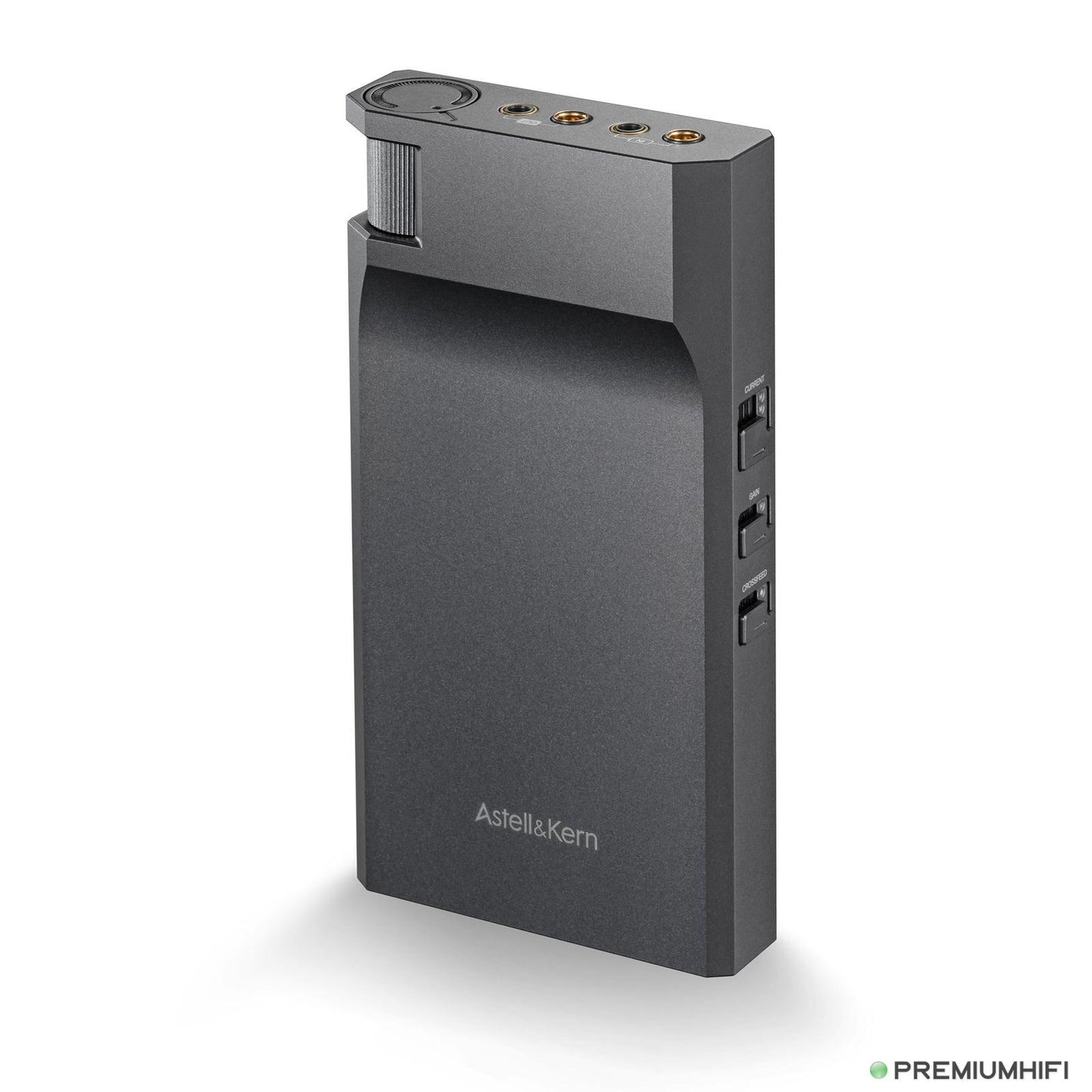

The Astell&Kern AK PA10 is a fully analog portable Class-A headphone amplifier designed to bring the warmth, depth, and natural dynamics of Class-A amplification to portable setups. Featuring both balanced and unbalanced inputs and outputs, it offers exceptional power and musicality for demanding headphones and IEMs — all wrapped in a premium aluminum chassis with soft silicone grip sides for easy stacking with your DAP or DAC.
✅ Key Features
- ✅ True Class-A analog amplifier topology for rich, natural sound
- ✅ Dual inputs and outputs — 3.5 mm unbalanced & 4.4 mm balanced
- ✅ Two-gain levels: up to 6.2 Vrms balanced / 3.1 Vrms unbalanced
- ✅ Precision aluminum body with silicone vibration-damping bands
- ✅ Long battery life: up to 12 hours of playback (low gain)
- ✅ Fast charging via USB-C (9 V / 1.67 A PD)
- ✅ Perfect pairing with A&K DAPs, DACs, or portable sources
📊 Technical Specifications ▼
| Parameter | Value |
|---|---|
| Model | AK PA10 |
| Amplifier Type | Portable Class-A Analog Headphone Amplifier |
| Body Material / Color | Aluminum & Silicone / Graphite Gray |
| Inputs | Unbalanced 3.5 mm / Balanced 4.4 mm |
| Headphone Outputs | Unbalanced 3.5 mm / Balanced 4.4 mm |
| Input Max Level | 2 Vrms (3.5 mm) / 4 Vrms (4.4 mm) |
| Output Level | [Low Gain] 2.1 Vrms SE / 4.2 Vrms Bal • [High Gain] 3.1 Vrms SE / 6.2 Vrms Bal (no load) |
| Frequency Response | ±0.2 dB (Low Gain) • ±0.06 dB (High Gain) 20 Hz – 20 kHz |
| S/N Ratio | 111 dB (SE) • 115 dB (Bal) Low Gain | 114 dB (SE) • 117 dB (Bal) High Gain |
| THD+N | 0.0045 % (SE) • 0.0015 % (Bal) Low Gain | 0.0027 % (SE) • 0.0013 % (Bal) High Gain @ 1 kHz |
| Crosstalk | −83 dB (SE) • −110 dB (Bal) @ 1 kHz (both gain modes) |
| Output Impedance | 3.5 mm 1.1 Ω • 4.4 mm 1.3 Ω |
| Battery Capacity | 4 200 mAh (3.8 V Li-Polymer) |
| Playback Time | ≈ 12 h (Low Gain, Unbalanced, 1 Vrms Input, Vol 30 %) |
| Charging Time | ≈ 3 h (Fast 9 V / 1.67 A) • ≈ 4 h (5 V / 2 A) |
| Charging Port | USB-C |
| Dimensions (W × H × D) | 73 × 140 × 23.3 mm |
| Weight | ≈ 325 g |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Country of Origin | South Korea 🇰🇷 |
📦 What’s in the Box
- 📦 Astell&Kern PA10 Portable Class-A Amplifier
- 🔌 USB-C → USB-A Cable
- 🎧 3.5 mm → 3.5 mm AUX Cable
- 🧩 2 × Silicone Bands (for stacking)
- 📖 Quick Start Guide
- 🧾 Warranty Card
🔄 Compatibility
✔ Pairs with any Astell&Kern DAP or portable DAC for maximum Class-A performance.
✔ Compatible with smartphones, DACs, and DAPs via 3.5 mm or 4.4 mm analog input.
✔ Drives anything from sensitive IEMs to high-impedance planars with power and warmth.
✔ Designed for stacking — secure mount using included silicone bands.
