ASTRAL 16

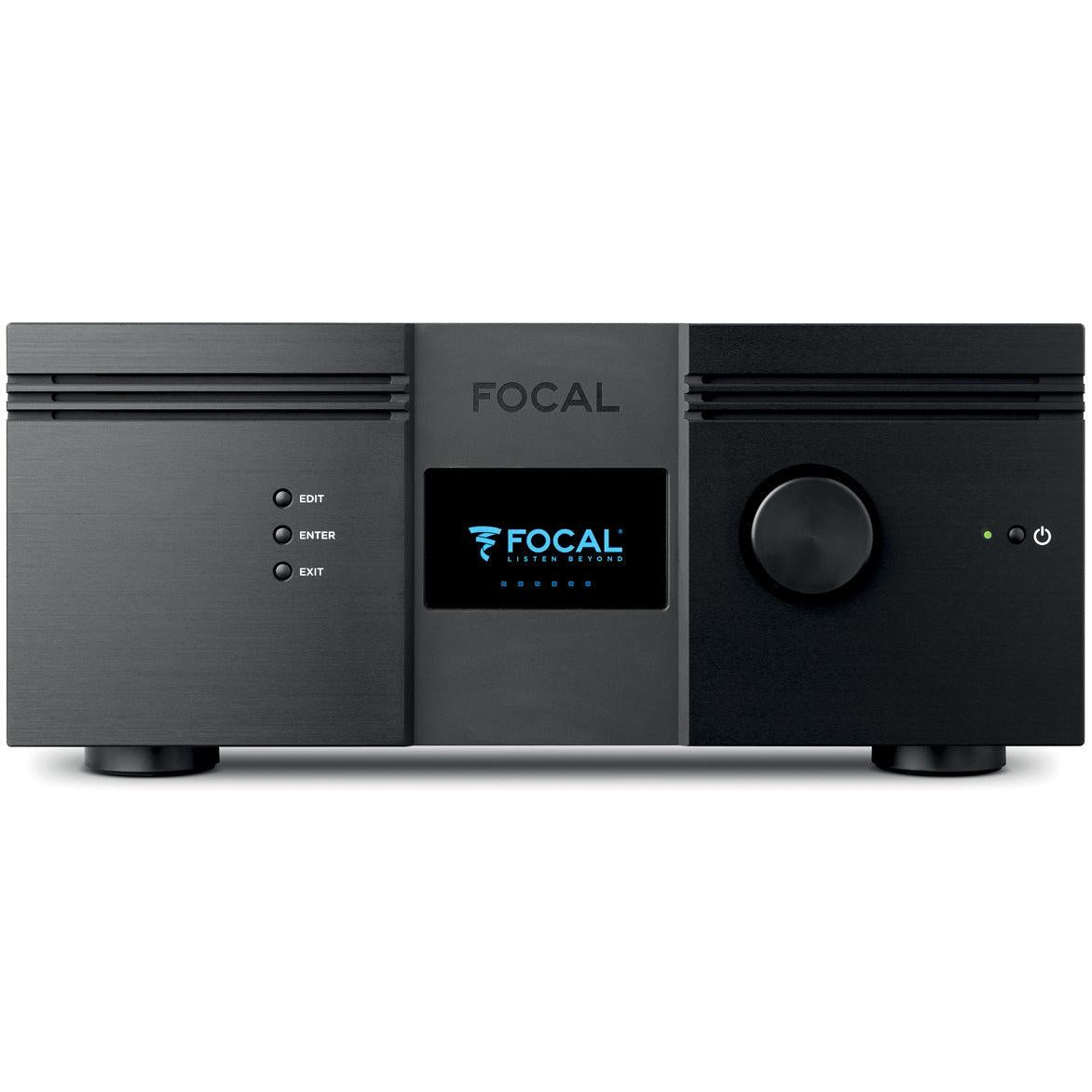

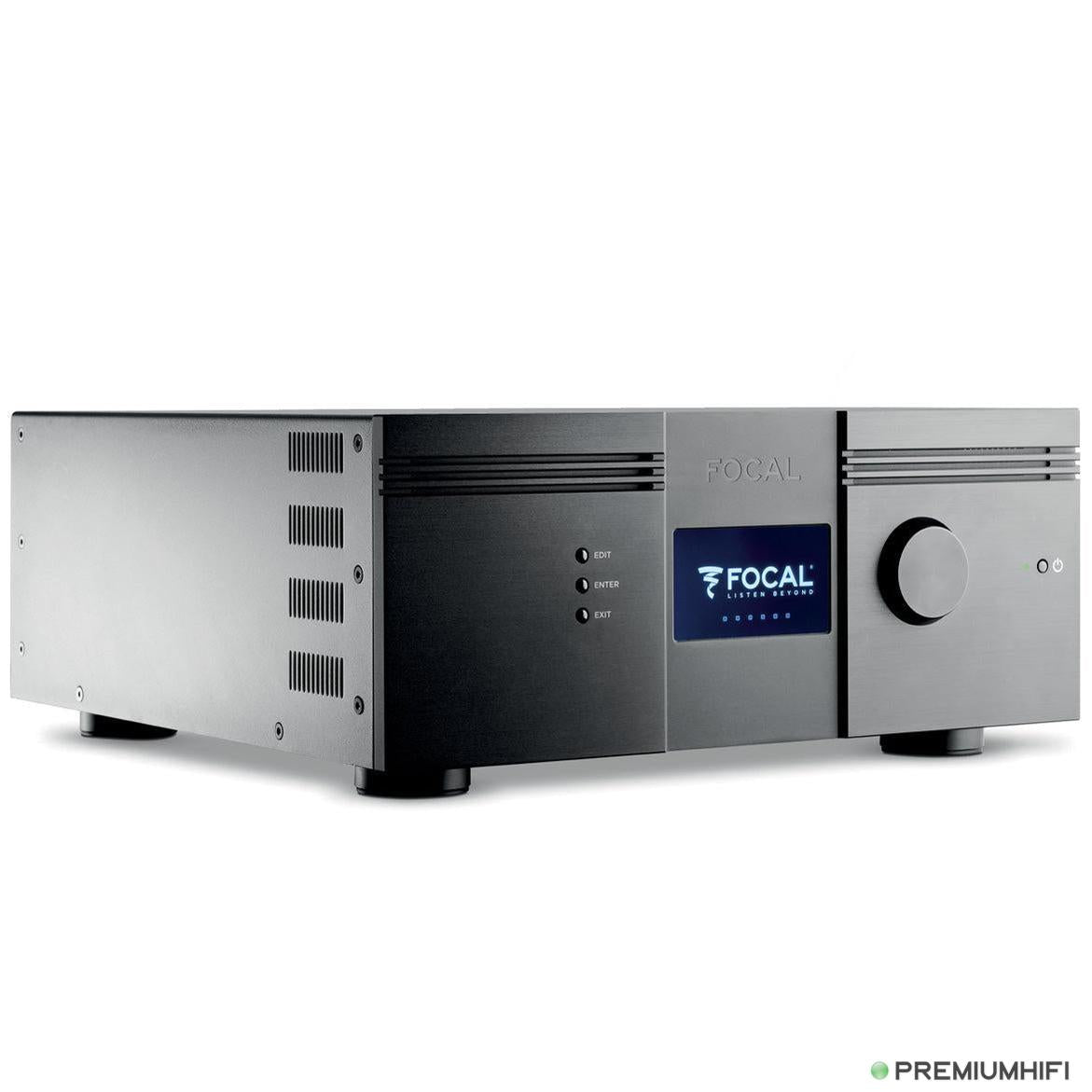

ASTRAL 16 Type 16 channel audio-video processor and amplifier
Main features Compatible formats Dolby Atmos® / DTS:X™ / Auro-3D®
Room Calibration Powered by Dirac Live® : target curve editable from 20Hz
to 20kHz for all channels (including subwoofers), phase
correction full bandwidth 20Hz-20kHz on all channels
(including subwoofers)
"Remote Monitoring" fonction
Multichannel /
Surround Processing
Output channels
Decoding / upmixing channels
Input sampling rate supported
Stereo downmix
Bass management
Multi-subwoofer channels
Multi-way crossover
20 Parametric EQ per channel
16
up to 16 channels
up to 192kHz
fully flexible
Unlimited
(6-12-18-24-36-48dB/oct filter slopes)
HDMI HDMI inputs
HDMI outputs (mirror)
Supported video format
High Dynamic Range
Color Space and Subsampling
Deep Color
Max resolution supported
HDMI
7: HDMI 2.0 / HDCP 2.2
1: HDMI 2.0 / HDCP 2.2 (with eARC)
2: HDMI 2.0 / HDCP 2.2
Up to 4K UHD
HDR10 / HLG
4:4:4, 4:2:2, 4:2:0
12 bpc
4K 60fps 4:4:4 8bpc
3D / 4K / eARC

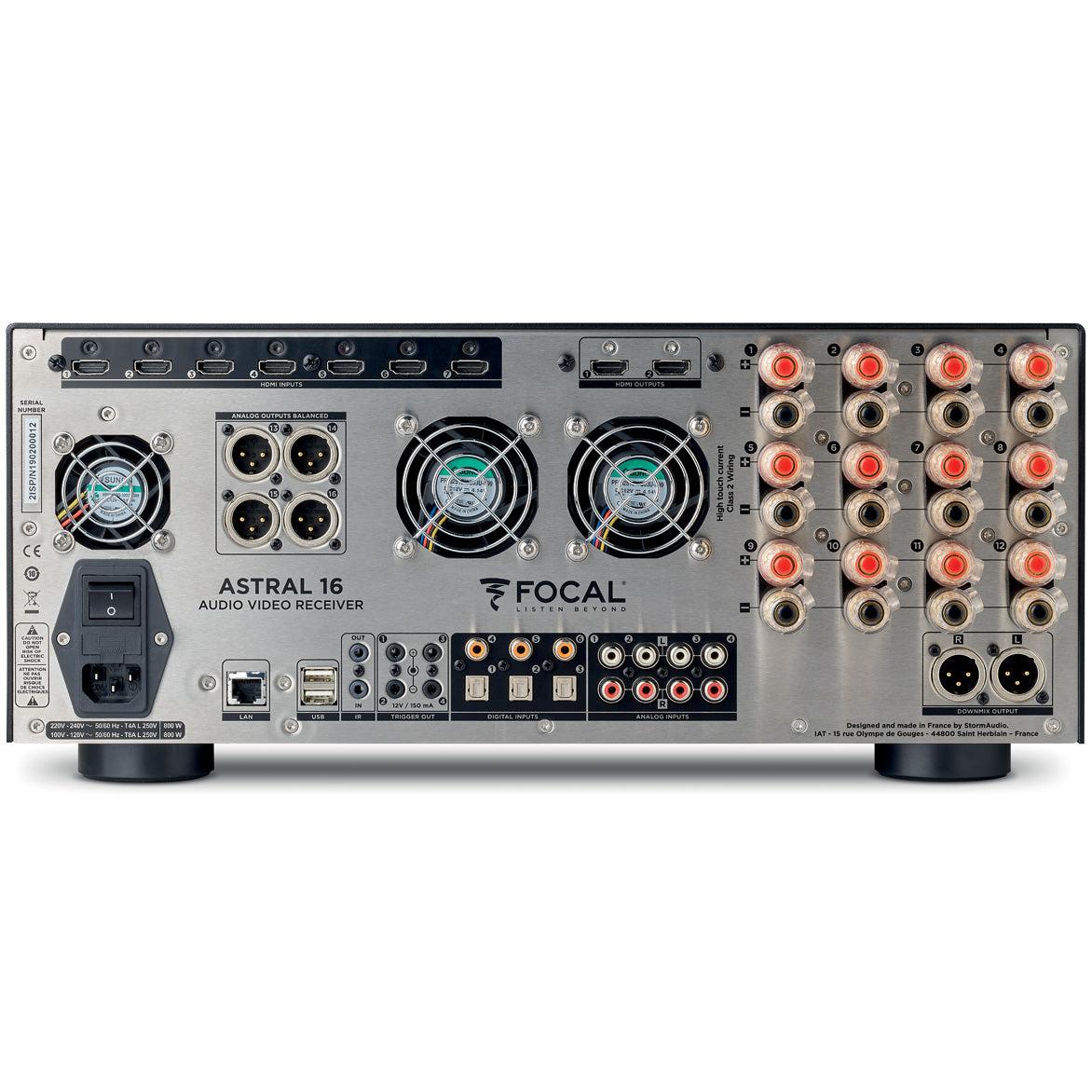

Audio Inputs Digital input
Analog stereo inputs
3 x coaxial, 3 x optical
4 x RCA inputs
Amplified Audio Outputs Amplified main outputs
Analog main outputs, balanced
Stereo downmix outputs, balanced
Technology
Amplified channels
Continuous power output, per channel, à 0.1%THD
3 channels driven simultaneous,
6 channels driven simultaneous,
12 channels driven simultaneous
Continuous power output, per channel, à 1%THD
3 channels driven simultaneous,
6 channels driven simultaneous,
12 channels driven simultaneous,
SNR (P-rated)
THD (from 1W to P-rated -1dB)
12
4 x XLR
2 x XLR
Class D
12
8Ω / 4Ω / 2.7Ω
200W / 400W / 650W
200W / 350W / 350W
200W / 300W
8Ω / 4Ω / 2.7Ω
250W / 500W / 725W
250W / 500W / 500W
250W / 300W
110dB
<0.03%
Set-Up Management Configurable multi-theater management
Configurable audio zones management
Unlimited Theater and audio zones listening presets
Backup and restore of set-up
Firmware update via USB/network
Control Inputs / Outputs USB type A
Ethernet
Output trigger control
IR remote ports, in/out
2
4 (out)
1 / 1
Control / Custom
Installation
Web-based product configurator
TCP/IP API based control
Focal Remote iPad control application
Home automation
Front panel display
Crestron, Control4, Savant, RTI home automation
TFT 4.3"
Power Supply Voltage range
Type
Range selection
100V to 240V
SMPS
Universal

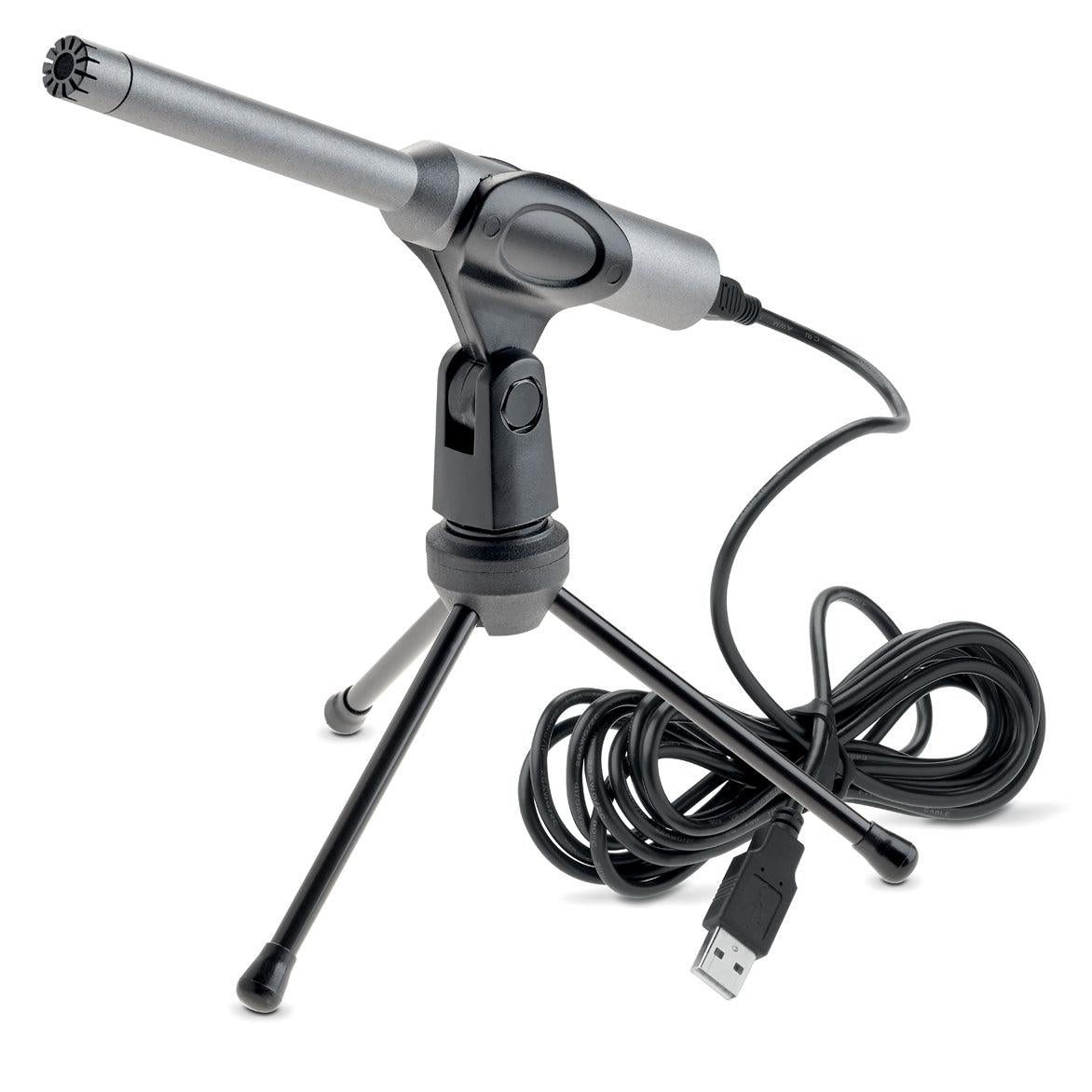

Supplied with Calibrated measurement microphone and tripod, Dirac
Live license, 32.9ft (10m) cable with infra-red captor,
mounting kit.
Dimensions & weight Net weight – with stands (kg/lbs)
Net weight – with accessories for Rack (kg/lbs)
Dimensions with stands (h x w x d) (cm/inches)
20.0 / 44.1
23.0 / 50.7
19.10 x 47.90 x 49 / 7.52 x 18.86 x 19.29
