Audio-Technica
AT33EV
AT33EV
✅Promokodu izmanto pie pasūtījumā noformēšanas
✅Use promocode at checkout
✅Промокод используй при оформлении заказа
Couldn't load pickup availability
📞 Premium HIFI contacts
📞 Premium HIFI contacts
+37129541259
arkadijs.zenins@outlook.com
Demo Room: Augusta Dombrovska 13-34, Riga (call before visiting)
Shipping Terms
Shipping Terms
- Shipping method: Standard
Shipment cost: - EU 20€
- LT, EST 5€
- LV 2€
- RU, USA 200€
- Other countries 200€
- Dispatched usually 2 - 5 business days after order placement
- Some times, dispatched up to 20 business days, we will inform additional, after order placement.

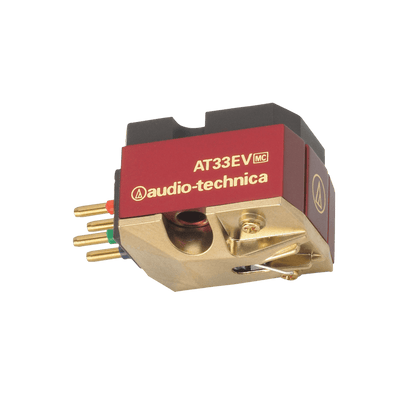

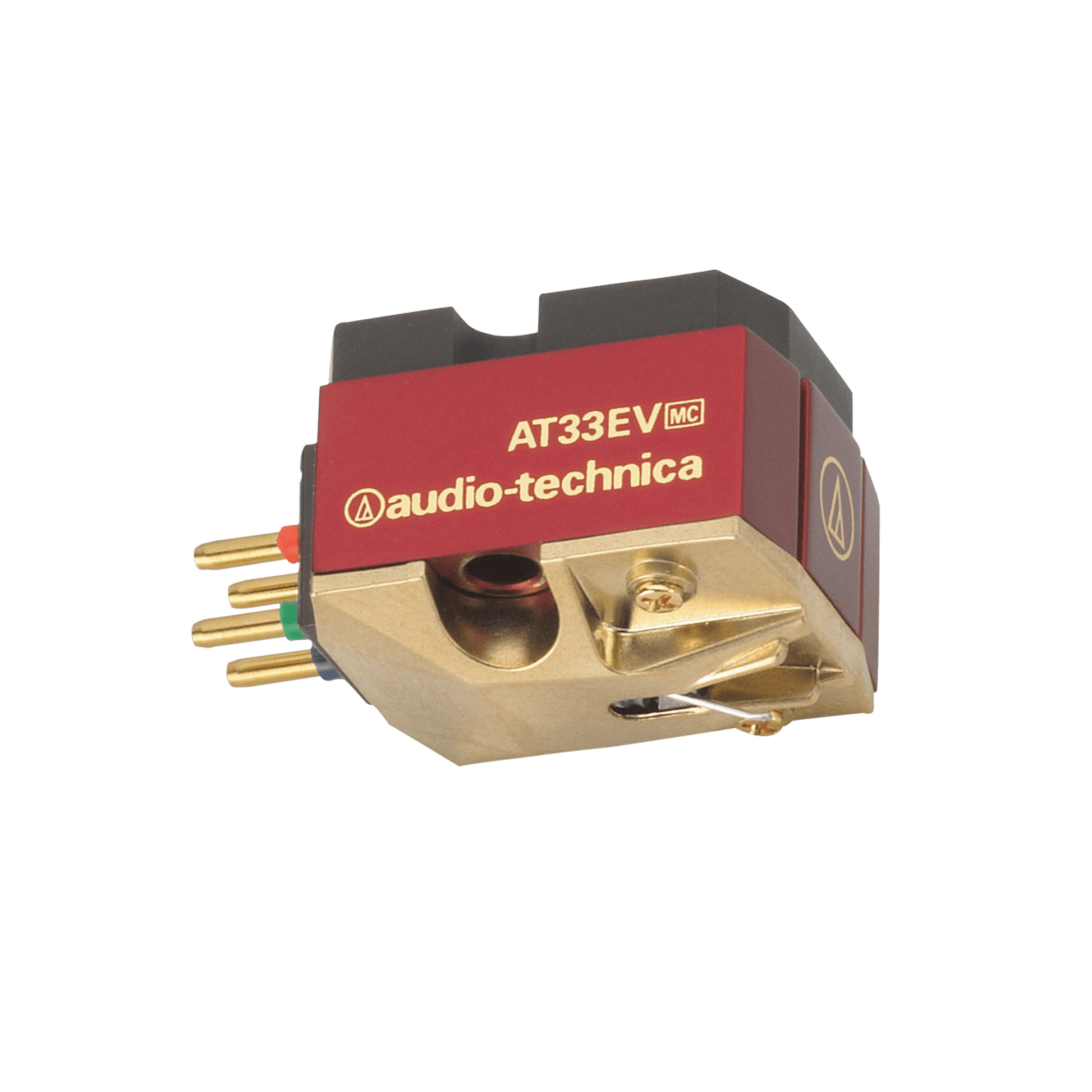

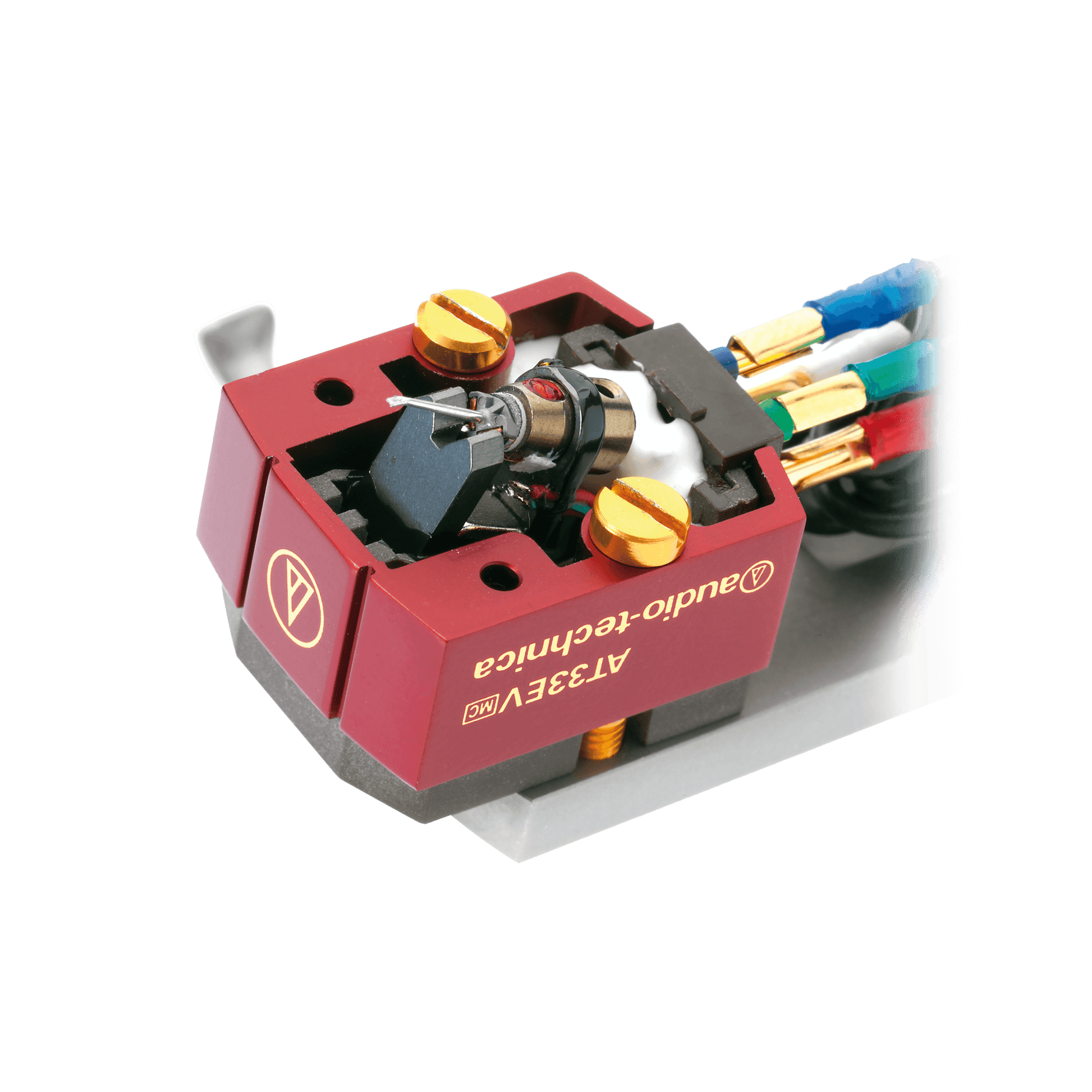

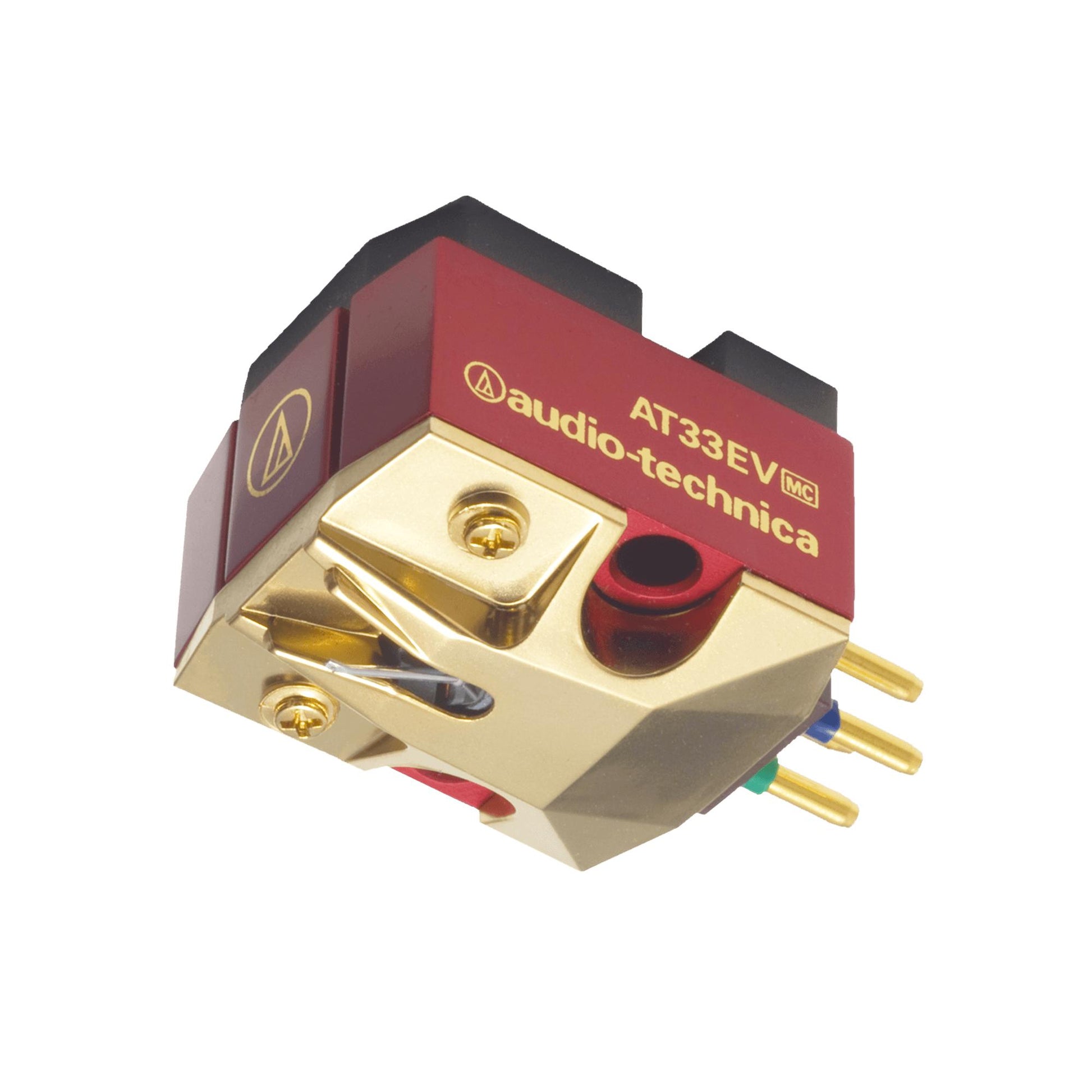

Audio-Technica AT33EV Stereo Moving Coil Cartridge Cartridge & Stylus
Frequency Response 15 - 50,000Hz
Channel Separation 30dB (1kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Stylus Construction Nude Square Shank
Recommended Load Impedance More than 100Ω (when head amp connected)
Coil Impedance 10Ω (1kHz)
DC Resistance 10Ω
Coil Inductance 22µH (1kHz)
Output Voltage 0.3mV (1kHz and 3.54cm/sec.)
Output Channel Balance 0.5dB (1kHz)
Stylus Shape Elliptical
Cantilever Duralumin
Static Compliance 40×10-6cm/dyne
Dynamic Compliance 10×10-6cm/dyne (100Hz)
Mounting 1/2" Centers
Dimensions H16×W16.6×D26.5mm
Accessories Included Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body Material Aluminium/Synthetic Resin
Stylus Curvature Radius 0.3 x 0.7 mil
Terminal Pins Brass
Type Dual Moving Coil
Weight 6.9g
