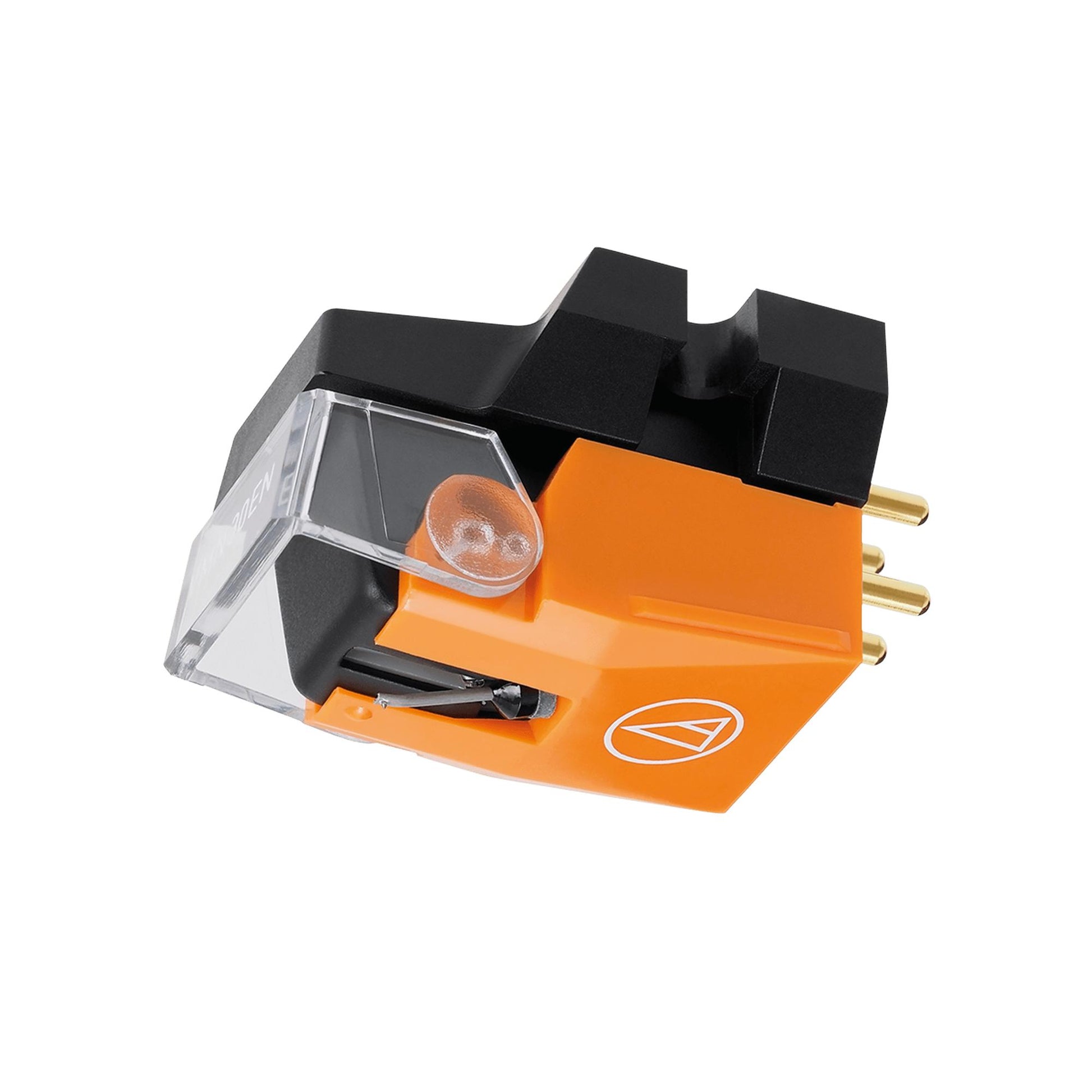

Audio-Technica VM530EN Moving Magnet Cartridge Cartridge & Stylus
Frequency Response 20 - 25,000Hz
Channel Separation 27dB (1kHz)
Vertical Tracking Angle 23˚
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Nude Round Shank
Recommended Load Impedance 47,000Ω
Coil Impedance 2,700Ω (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Output Channel Balance 1.5dB (1kHz)
Stylus Shape Elliptical Nude
Cantilever Aluminium Pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
Mounting 1/2” centres
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm

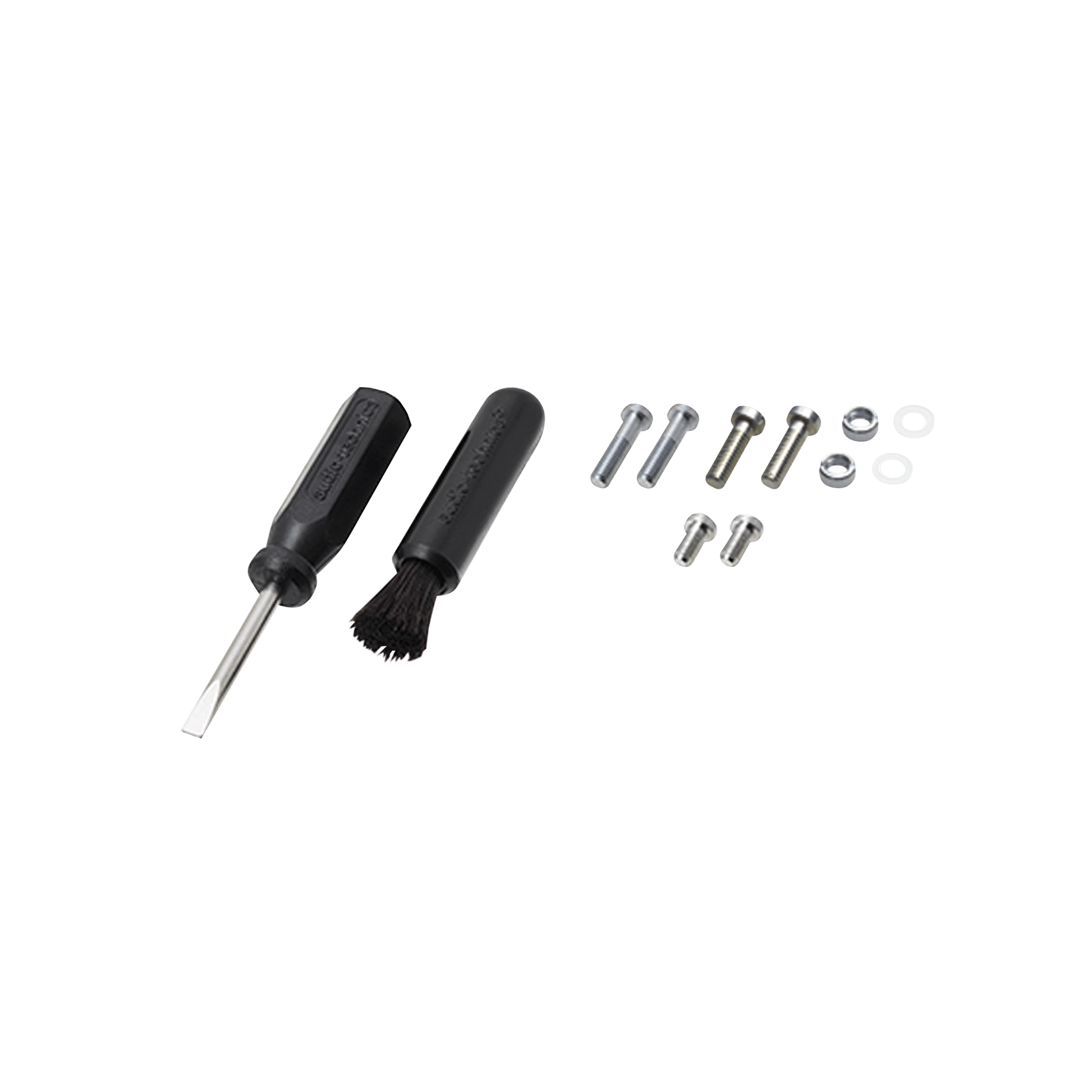

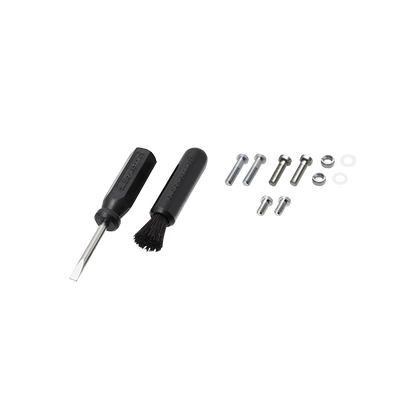

Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1
Recommended Load Capacitance 100 – 200pF
Replacement Stylus VMN30EN
Stylus Size 0.3 x 0.7 mil
Type VM Type
Weight 6.4g
