Big Sur

AudioQuest Big Sur

Specifications

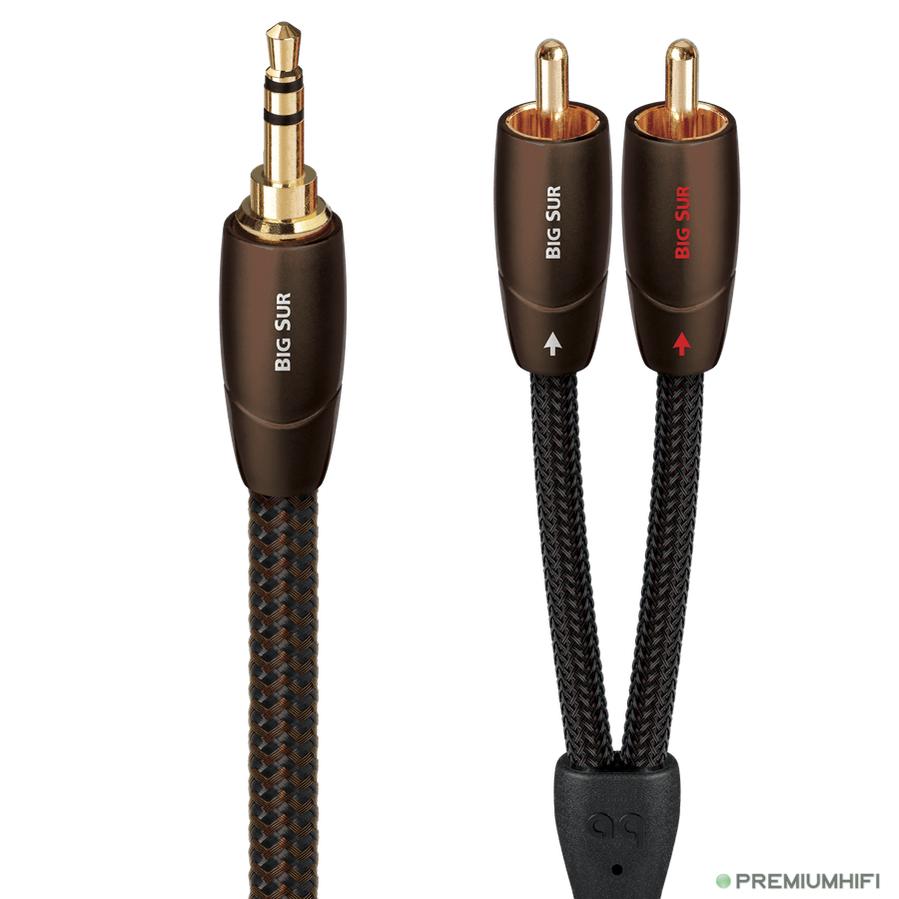

Specifications for product Big Sur 3.5mm Mini > RCA
Metal
Solid Perfect-Surface Copper+ (PSC+)
Noise Dissipation
Metal-Layer
Geometry
Asymmetrical Double-Balanced
Insulation
Foamed-Polyethylene
Terminations
Cold-Welded, Gold-Plated Purple Copper
Signal Type
Analog
Cable Length
0.6 m = 1 ft 11 in
Jacket
Brown on Black Braid
Sold As
1 Single Cable - 1 x 3.5mm > 2 x Male RCA
Weight
0.3 lb
Description
Solid Perfect-Surface Copper+ (PSC+) Conductors
Solid conductors prevent electrical and magnetic strand-interaction. PSC+ Solid-Copper minimizes distortion caused by grain boundaries and maximizes linear RF Noise-Dissipation.

Metal-Layer Noise-Dissipation
It's easy to accomplish 100% shield coverage. Preventing captured radio-frequency interference (RFI) from modulating the equipment's ground reference requires AQ's Noise-Dissipation. Traditional shield systems typically absorb and then drain noise/RF energy to component ground, modulating and distorting the critical "reference" ground plane, which in turn causes a distortion of the signal. Noise-Dissipation "shields the shield," absorbing and reflecting most of this noise/RF energy before it reaches the layer attached to ground.

Foamed-Polyethylene Insulation
Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy. Some of this energy is stored and then released as distortion. Because air absorbs next to no energy and Polyethylene is low-loss and has a benign distortion profile, Foamed-PE, with its high air content, causes much less of the out-of-focus effect common to other materials.

Asymmetrical Double-Balanced Geometry
Purpose designed for single-ended applications, Asymmetrical Double-Balanced Geometry offers a relatively lower impedance on the ground for a richer, and more dynamic experience. While many single-ended cable designs use a single path for both the ground and the shield, Double-Balanced designs separate the two for cleaner, quieter performance.

Cold-Welded, Gold-Plated Pure Purple Copper Terminations
