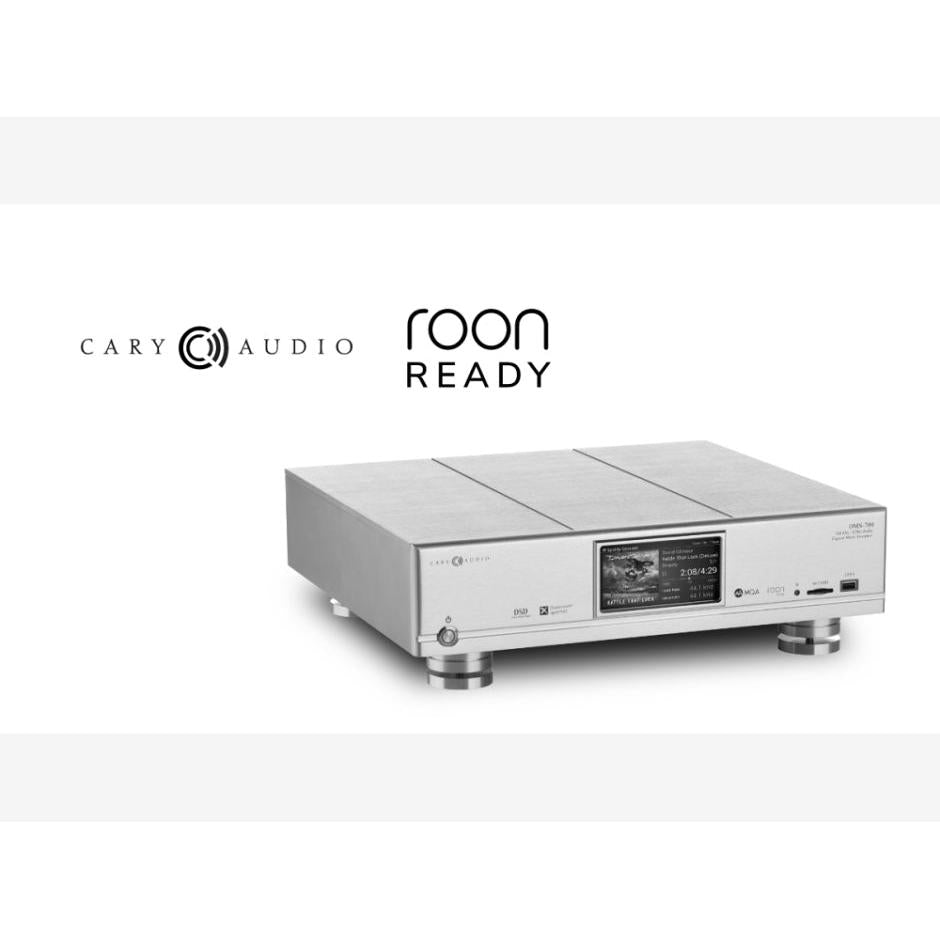

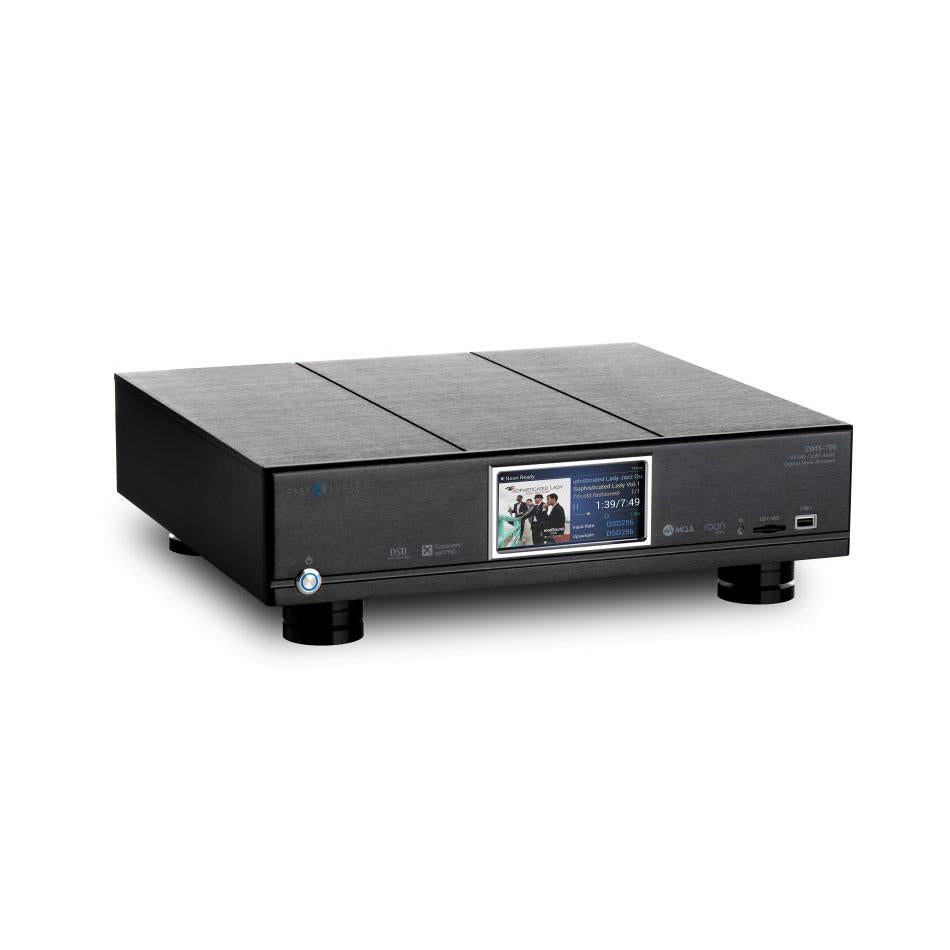

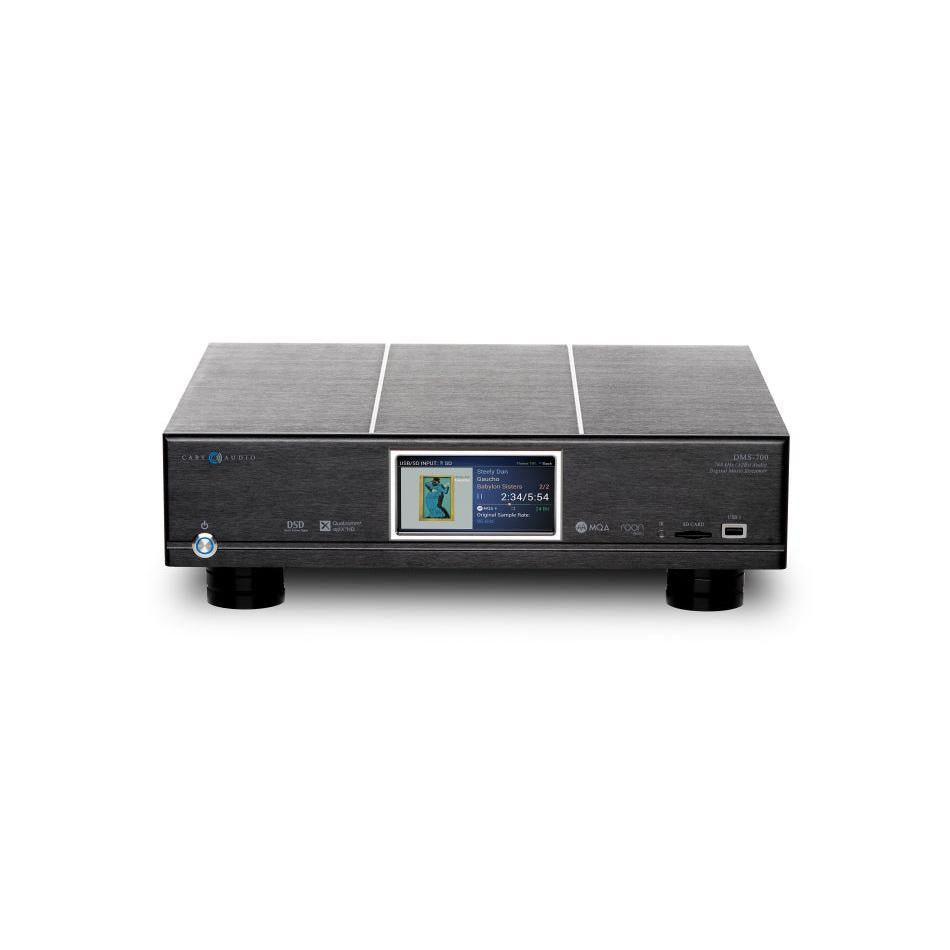

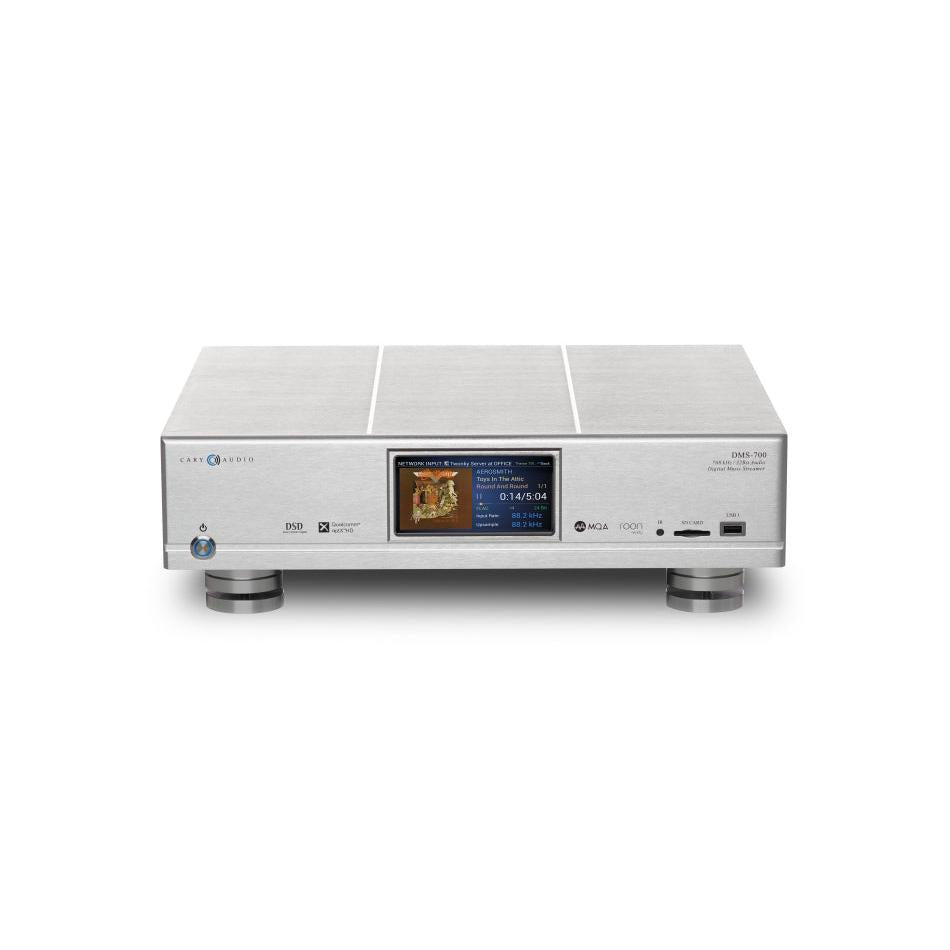

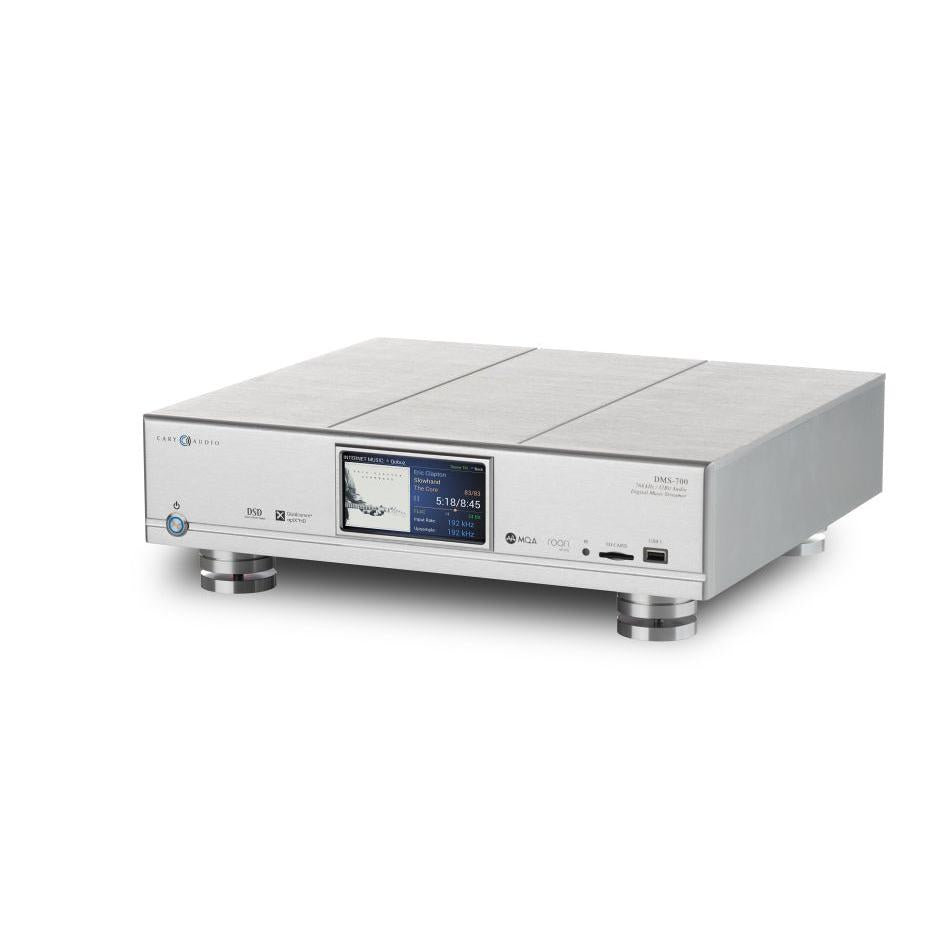

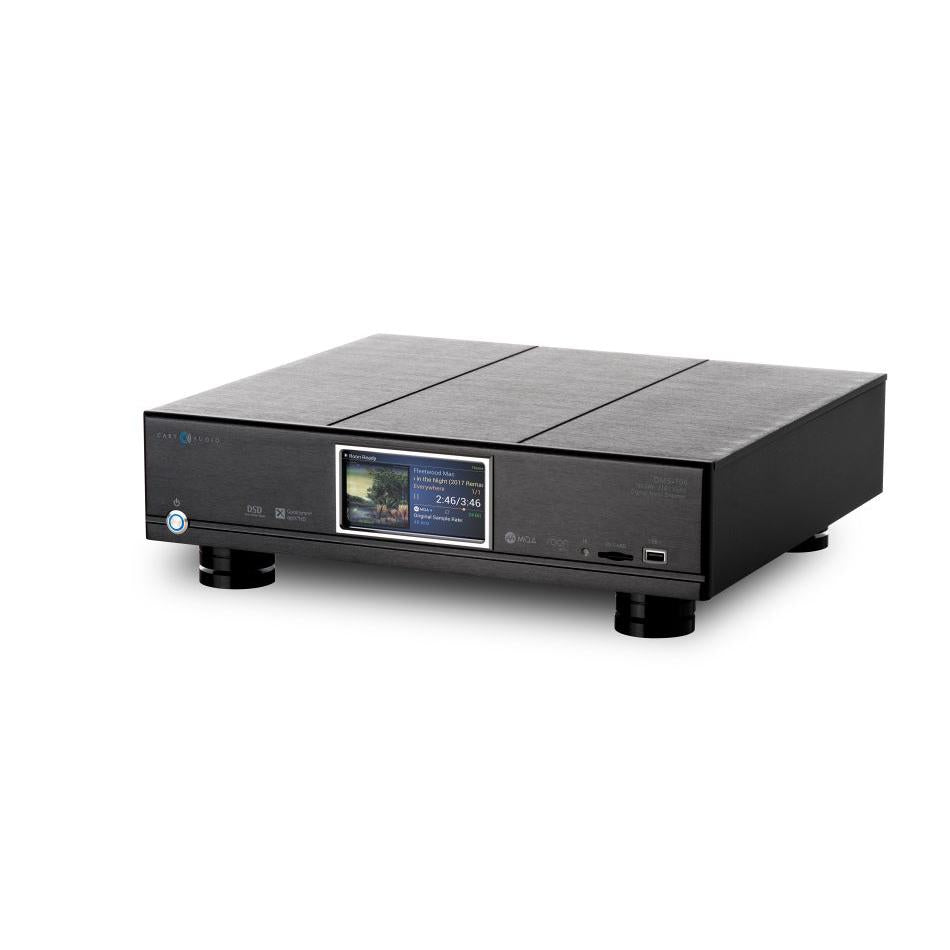

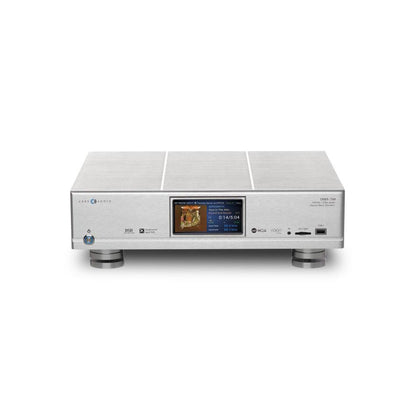

Caryaudio DMS-700

ABOUT THE DMS-700 NETWORK AUDIO PLAYER
DMS-700 is a third generation high resolution streaming music player in Cary Audio line up. DMS-700 offers stable and mature digital network audio technologies and straightforward firmware updates to keep it state-of-the-art for many years to come.

Practically limitless and endless supply of high quality music for your hi-fi system — that’s the mission of DMS-700 network player. Sophisticated networking technologies for MU-MIMO 5 Ghz Wi-Fi and wired LAN connections go hand in hand with refined analogue amplification, super stable power supplies and a very unusual DAC.

Digital-to-analogue conversion inside DMS-700 is based on a multibit 4-channel chip from Asahi-Kasei (AK4499EQ) but with an important twist. Low level linearity, exemplar signal-to-noise ratio and temporal domain fidelity is assured by custom coding in a FPGA. This is a novel approach not possible in the early years of digital audio when passive multibit DAC chips were praised for natural sound and good tone colour while being criticized by some audiophiles for harshness and electronic glare. Cary Audio approach refreshes the passive multibit resistor ladder (R2R) conversion technology and streamlines it into high resolution audio of 2021 and beyond.

The digital circuitry alone does not account for the overall sound. Cary Audio is renowned for designing spectacularly musical analog circuits. Rather than using a simple analog buffer stage post DAC chip, we designed a full no compromise in-house analog stage coupled to massive power supplies for both the digital and analog stages. Any DAC audio component is a sum of its parts. As important as the DAC chips themselves are, it’s the designed pre and post DAC chip that gives our Cary Audio DMS products their famous signature sound.

Cary Audio is not known for change for the sake of change alone. The new DMS-700 represents a significant step forward in network and internet music streaming sound reproduction, while further solidifying the Cary Audio DMS platform and range of products as the absolute best there is for network audio.

DMS-700 is Roon Ready device and is bit-to-bit transparent for Roon playback. When used in Roon ecosystem it’s controlled via Roon App.

Otherwise DMS-700 has an IR-remote, control app for iOS and Android devices, trigger remote on/off, or can be a networked audio endpoint for your favourite UPnP/DLNA app.

Music sources for DMS-700 include but are not limited to: TIDAL (with MQA 16x hardware decoder), Qobuz, Spotify and Spotify Connect, vTuner internet music subscriptions; network streaming from NAS or servers; file playback from 3 USB-A & 1 SD Card slots; digital sources connected to DMS-700 inputs (USB, coaxial, optical), AirPlay and Bluetooth AptX HD wireless.

With USB-drives or SD-card, attached to DMS-700 host slots, the player can also provide NAS duties for your home network. Other notable features include innovative Crystek Oscillator Clock for low phase error, Multisource playlist creation, Pure Audio mode, Sleep timer and a new LCD screen with twice the resolution of previous DMS models, at 1600 x 1200 dpi.
Master Clock Jitter Below measurable levels
Digital Sampling Rates (Fs) 44.1 kHz to 768 kHz
Digital Filter 32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters 1 – 4 channel AK4499EQ for true balanced output
BLUETOOTH CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Analog Filter 3rd Order Bessel

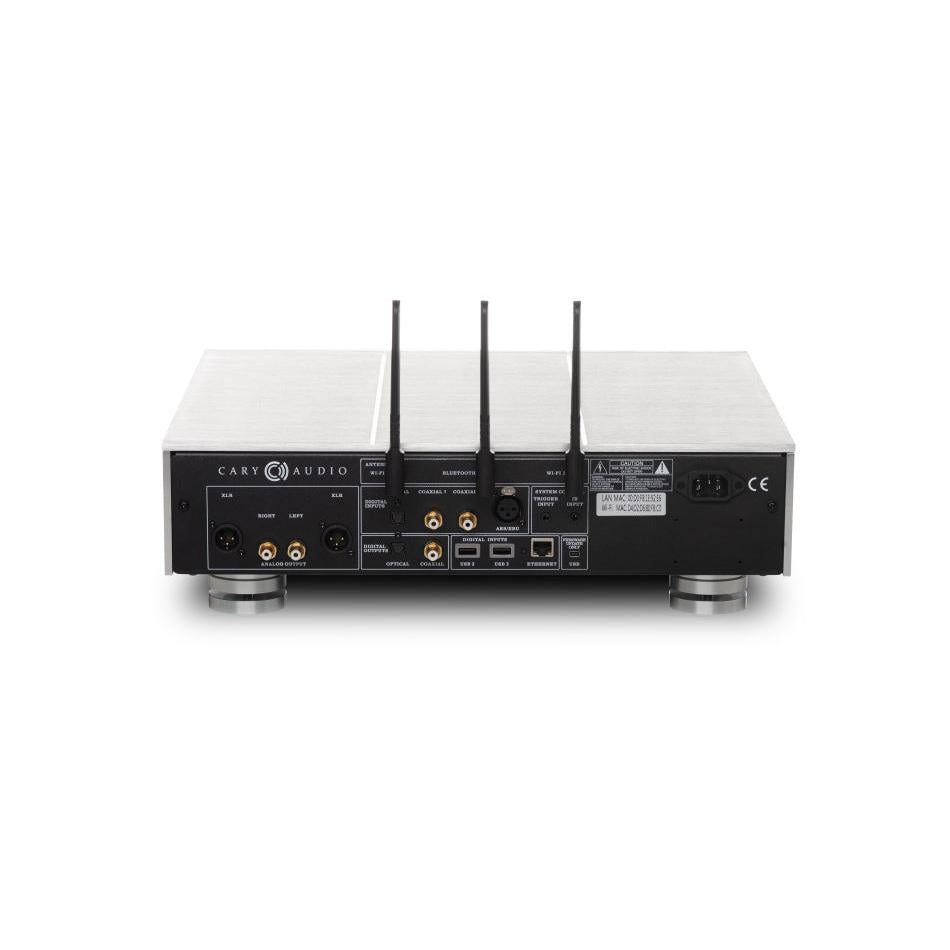

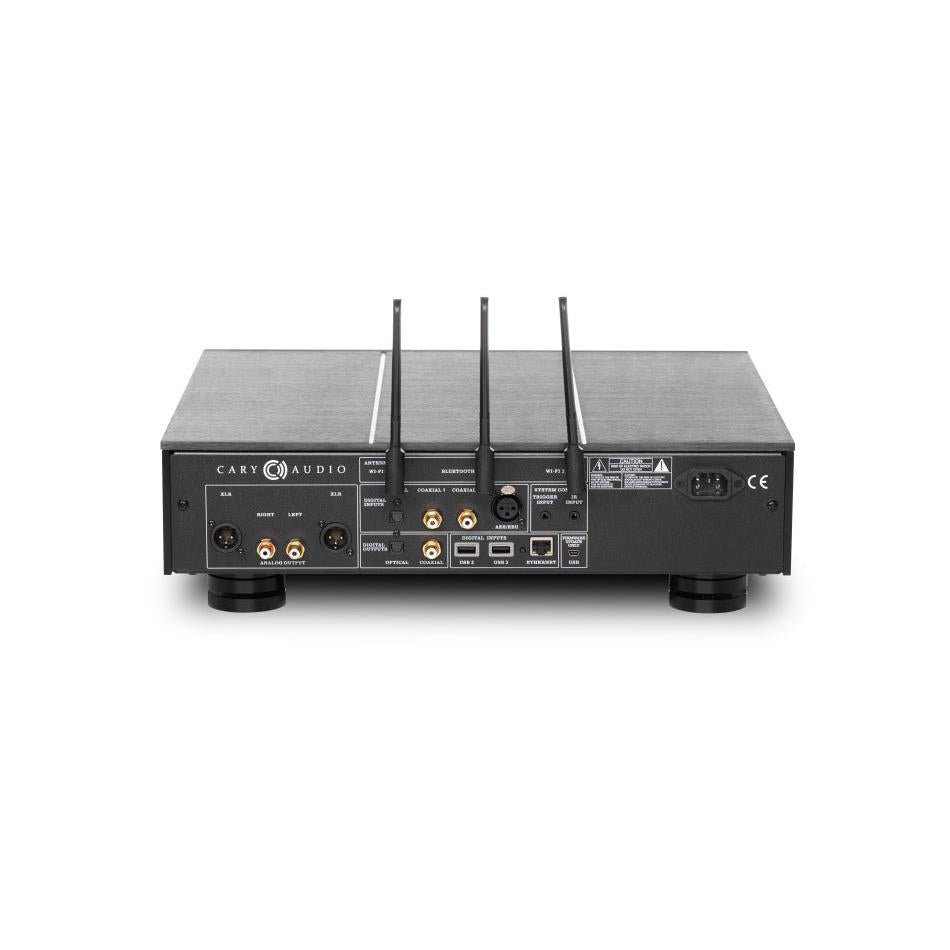

Analog Outputs Balanced XLR, Single – Ended RCA
Digital Outputs Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 24 bit, DSD64, DSD128
Digital Inputs USB x 3, SD Card x 1
BLUETOOTH x1
AES/EBU x1, Coaxial x2, Toslink x1
Digital Input Sample Rate USB operating at Sample Frequency (Fs) from 44.1 kHz to 705.6 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512.
BLUETOOTH Sample Frequency (Fs) 48 kHz, 24bit.
AES/EBU, Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 24 bit, DSD64, DSD128
Control Trigger input 12VDC x1
IR control x1
Communication Ethernet RJ45 full remote configuration interface
Wi-Fi 802.11 b/g/n/ac support MU-MIMO
Power Input Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements 45 Watts
Finish Custom aluminum chassis and faceplate available in either Silver or Black anodized finish
Weight 28 lbs
Dimensions 3.75″ H x 17.25″ W x 16.25″ D
AUDIO (LPCM)

Frequency Range 2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity 0.1 dB (20 Hz – 20 kHz)
Phase Linearity 3 degrees (20 Hz – 20 kHz)
Dynamic Range 124 dB (1 kHz)
Signal-to-Noise Ratio 127 dB (1 kHz)
Channel Separation 107 dB (1 kHz)
Total Harmonic Distortion 0.0001% (1 kHz)
Audio Output Level 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
NETWORK, USB, SD CARD PLAYBACK

Playback Format Supply .dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range 2 Hz – 100 kHz
Signal System 16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency 44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD
Dynamic Range 124 dB
DSD System Clock Frequency 22.5792 MHz
Signal-to-Noise Ratio 127 dB
Audio Output Level 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (lPCM)

Frequency Range 2 Hz – 100 kHz
Signal System 16, 20, and 24 bit
Sampling Frequency 44.1 kHz to 384 kHz PCM, DSD64, DSD128
Dynamic Range 124 dB
System Clock Frequency 22.5792 MHz
Signal-to-Noise Ratio 127 dB
Audio Output Levelb 2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
