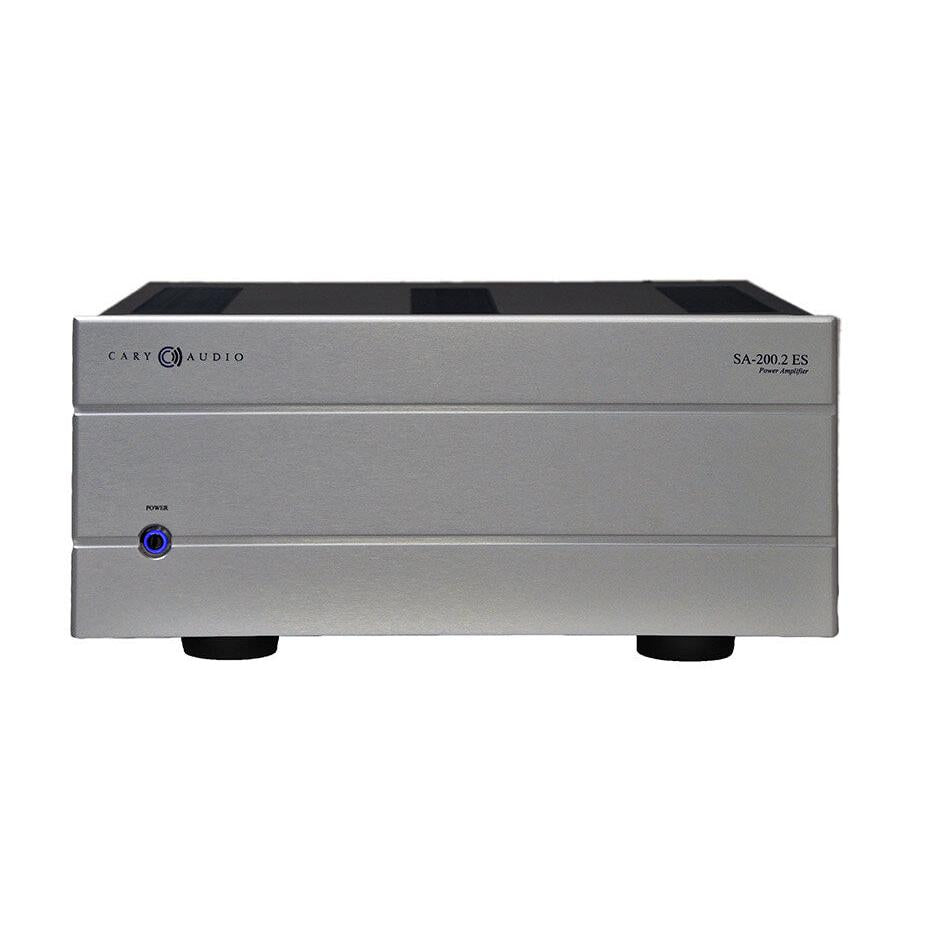

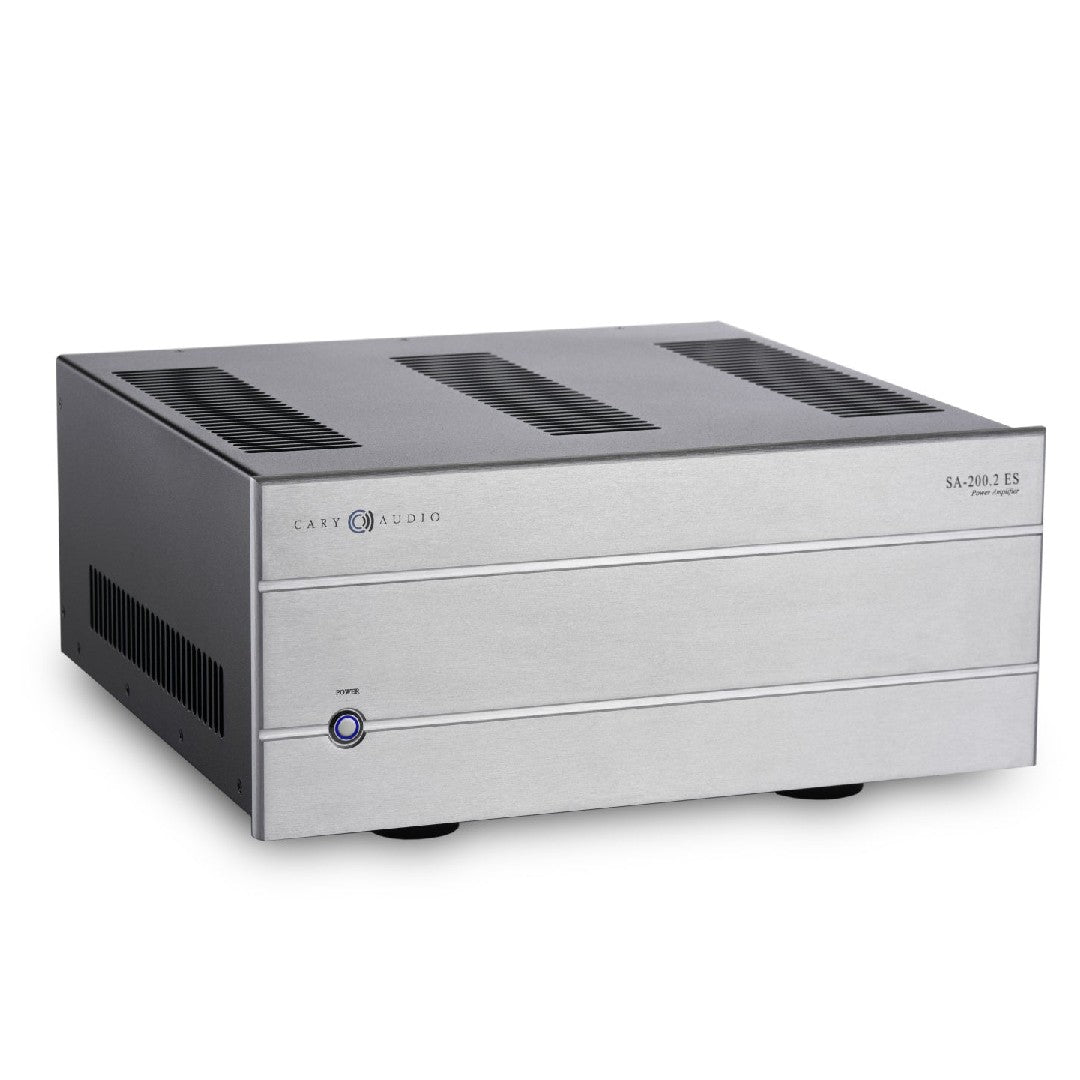

Caryaudio SA-200.2 ES

ABOUT THE SA-200.2 ES AMPLIFIER
The introduction of the SA-200.2 ES solid-state power amplifier represents the next generation of the SA-200.2 design. It embodies a modular approach that ensures consistency in performance, and ease of manufacture and serviceability. In implementing the new design, we have dramatically improved performance and current-handling capacity over the previous model while still maintaining the highest levels of sonic quality.

The SA-200.2 ES is a 200 watt stereo amplifier into 8 ohms, (350 watts into 4 ohms), with balanced and single ended inputs. The amplifier exhibits very high current capability, is stable into low impedance loads, and features 3 dB of dynamic headroom.

When we designed the SA-200.2 ES power amplifier, one of our primary goals was to create a product that would give years of consistent and reliable use without any maintenance. To achieve that goal, we took a hard look at the design and choice of components. For example, we use high-precision metal film resistors in almost all our circuitry, even in places where their use is not required. We have overbuilt the output stage and increased the heat dissipating capabilities of the amplifier by as much as 50% over previous designs. The changes encompass almost every part of the design, down to the choice of thickness of the chassis sheet metal. The monolithic front end brought major advantages to the amplifier design with improved temperature stability, low offset, and a substantial reduction of all types of distortion across the full frequency spectrum.
Circuit Type Solid State, Class A/B
Power Output 2 x 200 watts @ 8 Ohms from 20Hz to 20KHz
2 x 350 watts @ 4 Ohms from 20Hz to 20KHz
Frequency Response 10Hz – 50KHz +/- 0.1 dB
Signal-to-Noise Ratio >100dB, “A” Weighted
Input Impedance 22K Ohms RCA-unbalanced
22K Ohms – Balanced (XLR)
Voltage Gain 28 dB
AC Power Requirements 117/234 Volts AC @ 50/60 Hz
Break-In Time 100 hours of playing time
Audio Input 2 RCA, 2 XLR
Audio Output 2 pairs of heavy-duty, gold-plated binding posts
THD Less than 0.05% at rated output
Damping Factor Greater than 400 from 10Hz to 400Hz
Remote Trigger 3.3-24v DC at 5mA or greater
Finish Black powder coated matte chassis with silver or black aluminum faceplate
Weight 65 lbs
Dimensions 7.75” H x 17.7”W x 19.5 ”D
