CS-429

Dual

CS 429

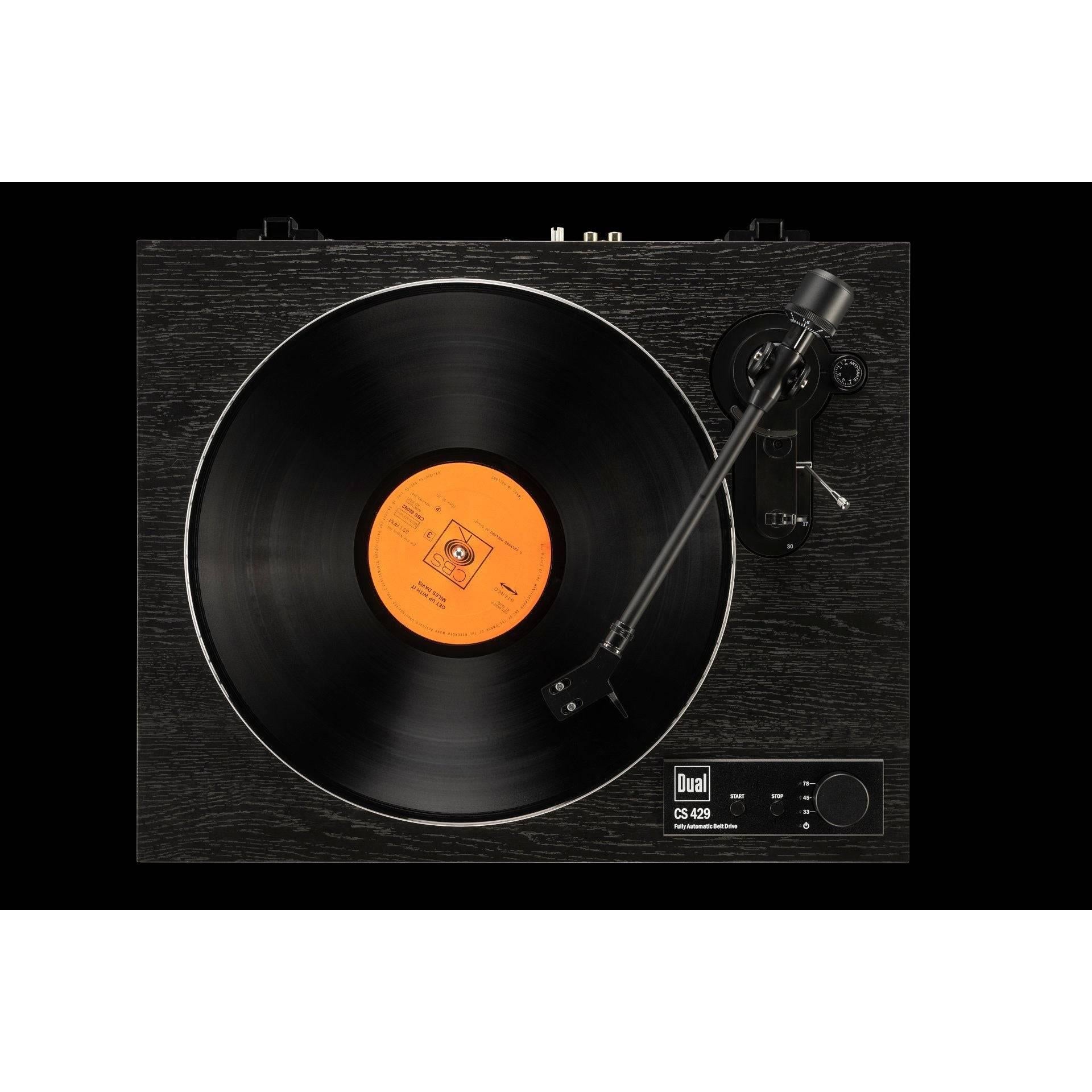

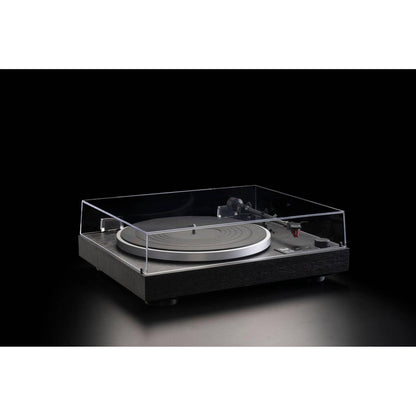

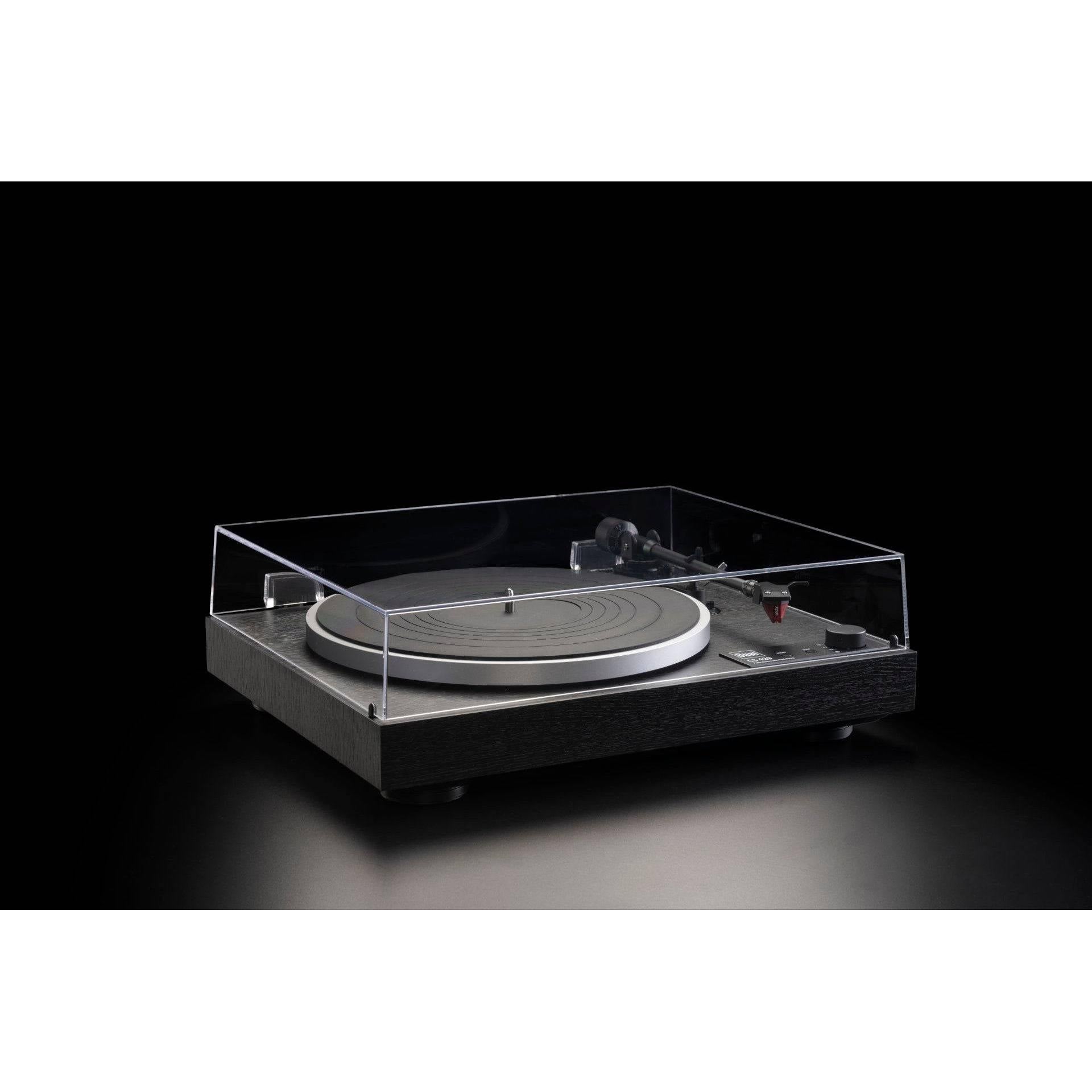

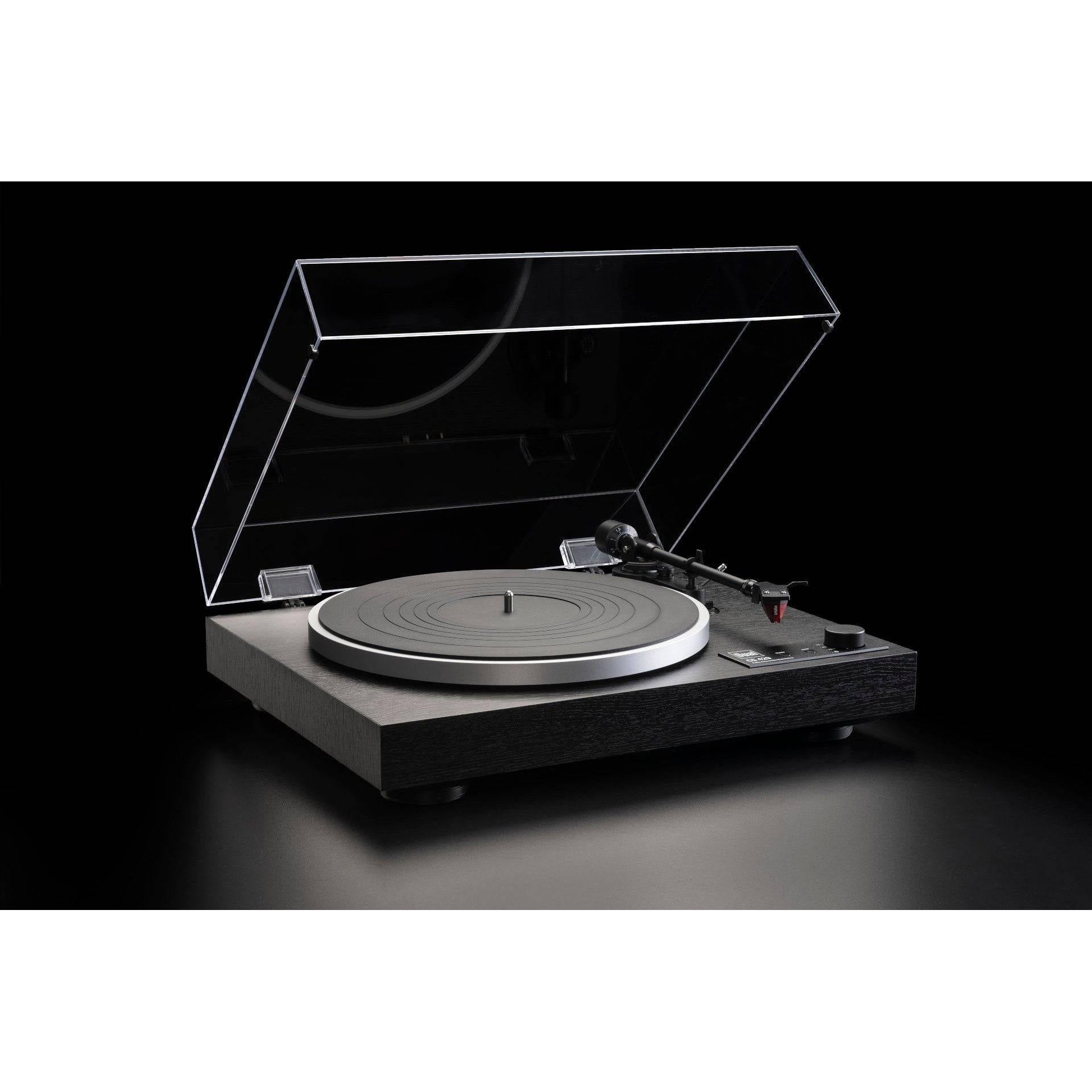

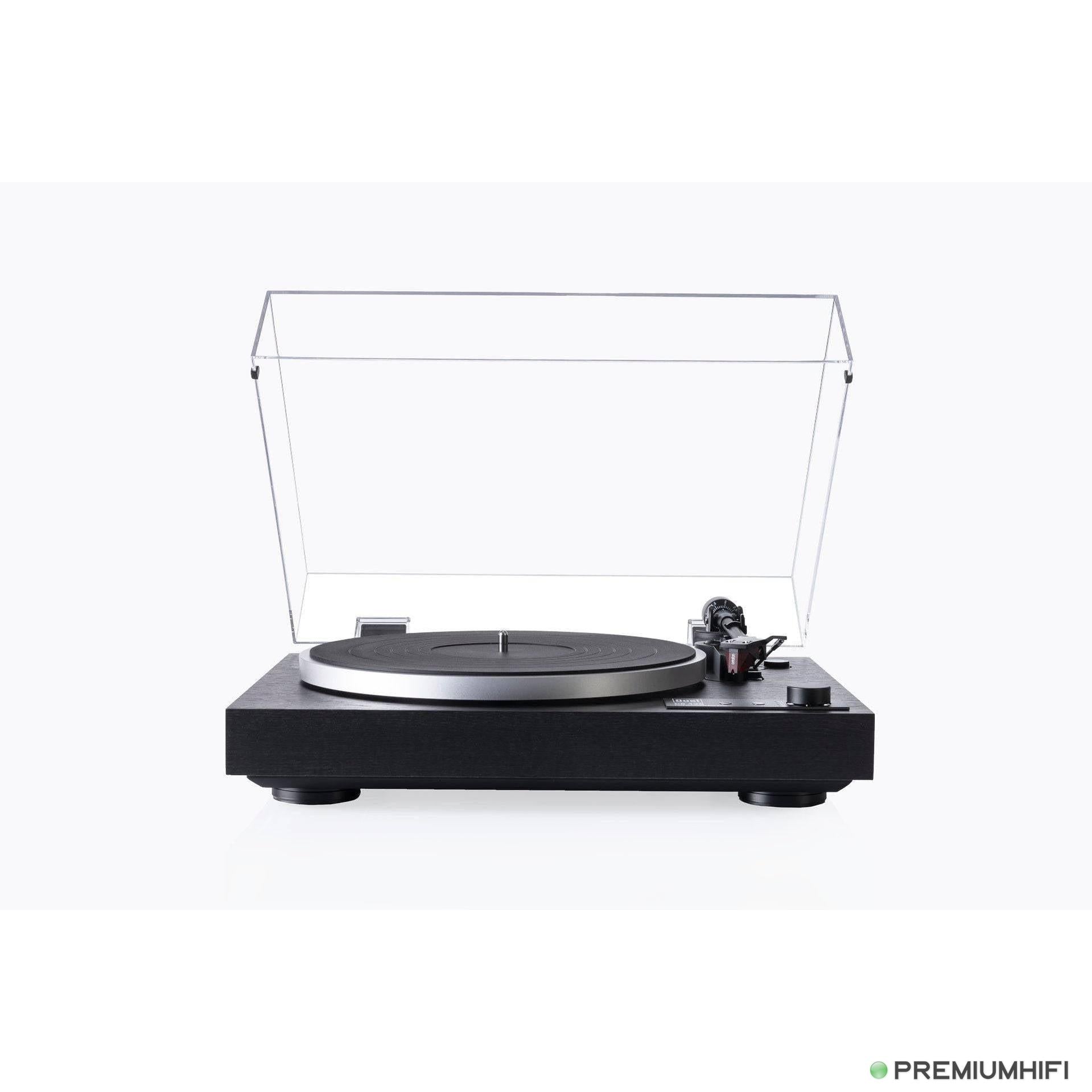

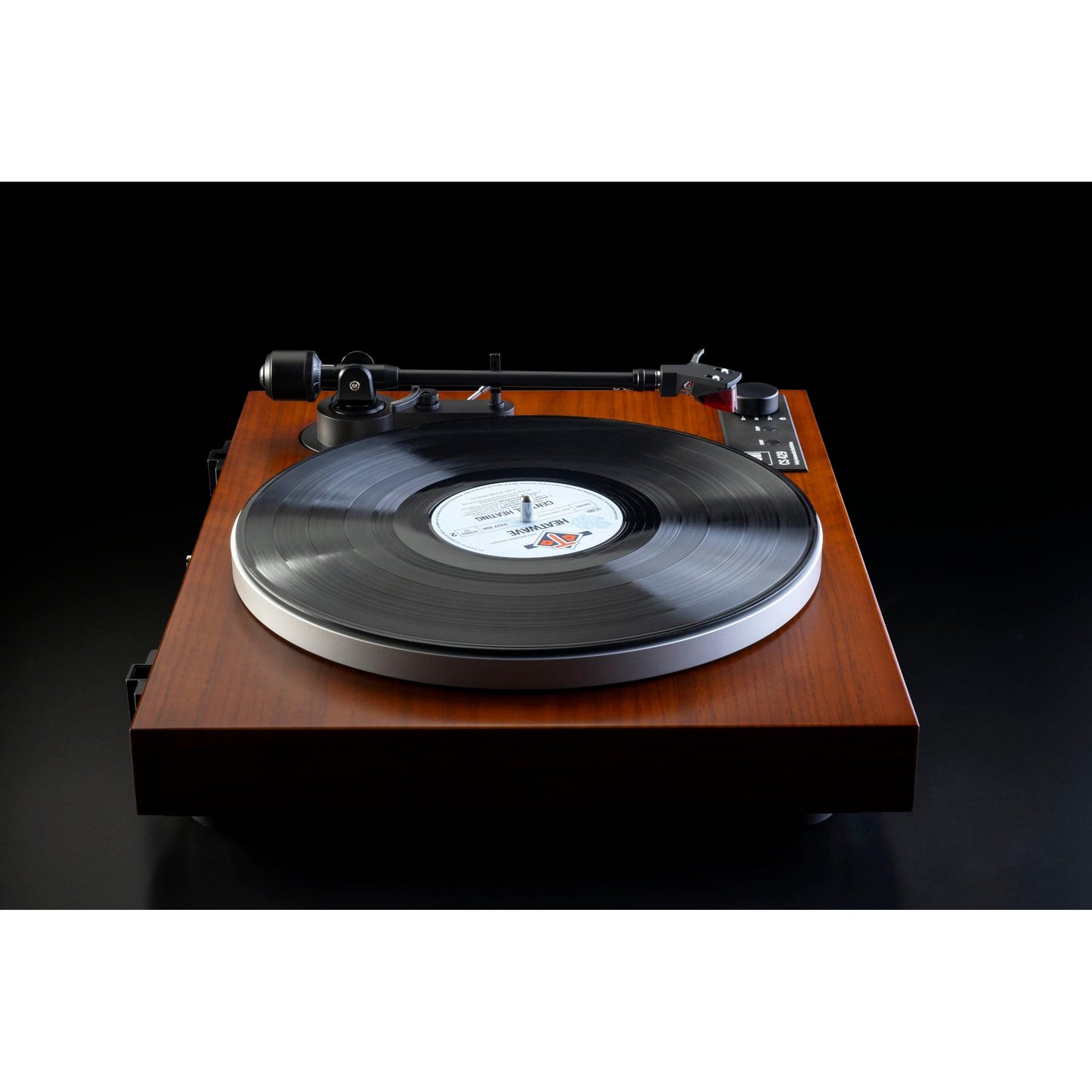

FULLY AUTOMATIC HIFI-TURNTABLE
The fully automatic function of the CS 429 provides maximum ease of use. The tonearm automatically lifts, shifts across and drops with the push of a button. Simply place the vinyl record on the platter and push the start button.

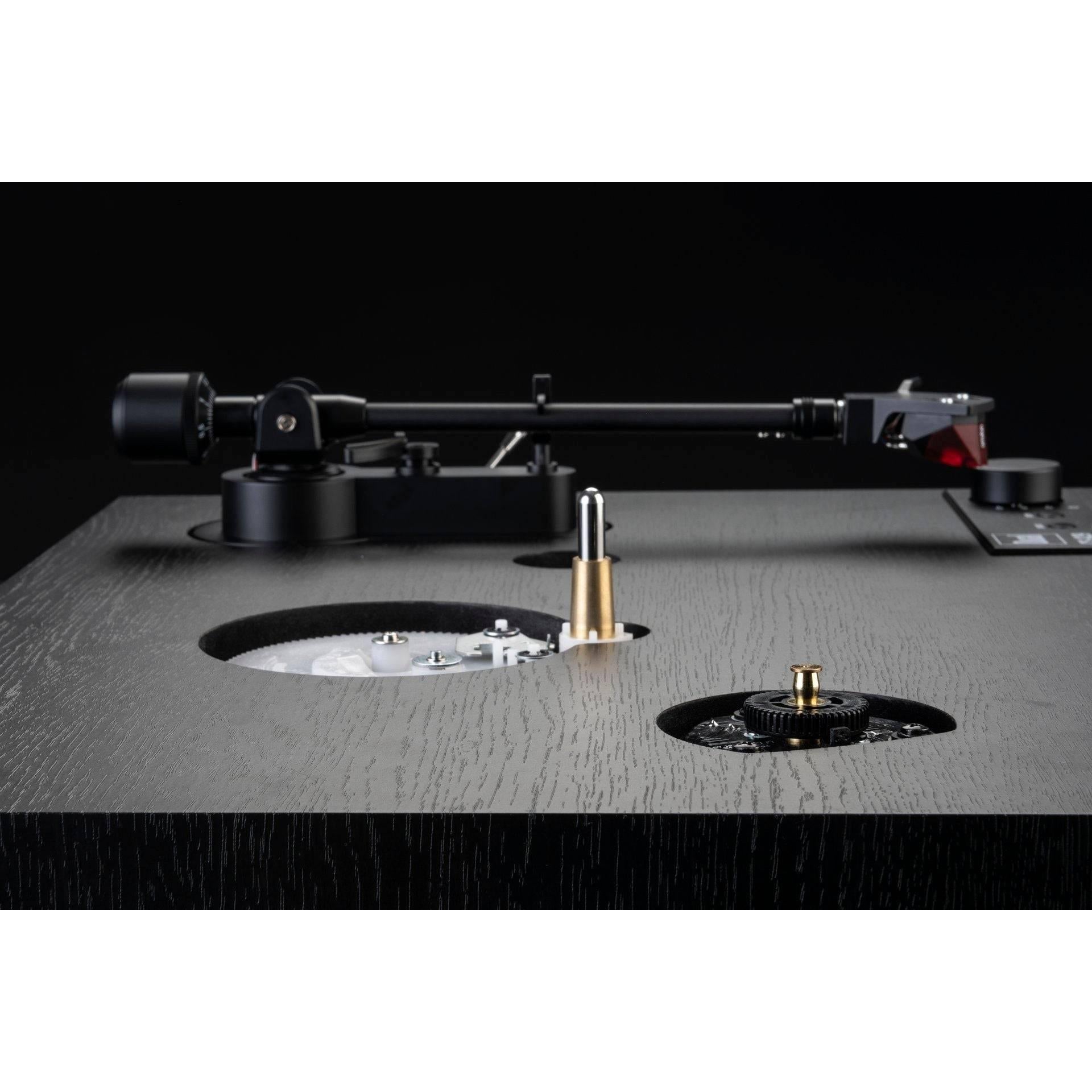

The CS 429 has a fully adjustable tonearm. This provides the option to change the pickup in the future and to alter the trackingforce and anti-scating accordingly.

The internal rubber damping construction decouples the tonearm and platter from external vibrations. This very quiet platform pro-vides an excellent sound performance combined with precise, optical speed control.

Drive:

Belt

Speed settings

33/45/78

Wow & Flutter

< ±0,08 % (DIN WTD)

Auto-Start/-Stop-Function:

Automatic

Bearing:

Ball-bearing

Effective length:

221,5 mm

Offset Angle:

25,6°

Overhang:

19 mm

Type:

statically balanced

Stylus Pressure Range:

0 g bis 4 g

Cartridge Weight Range:

5 g bis 9 g

Factory installed pick up:

Ortofon 2M Red

Material:

Aluminium die-cast

Mat:

Rubber 2,5 mm

Bearing:

Hardened steel spindle Brass bushing

Diameter:

305 mm

Weight (incl. Mat):

850 g

Material:

MDF, folded

Surface finish:

Vinyl veneer / Black

Feet:

Ø 62 mm / Elastomer

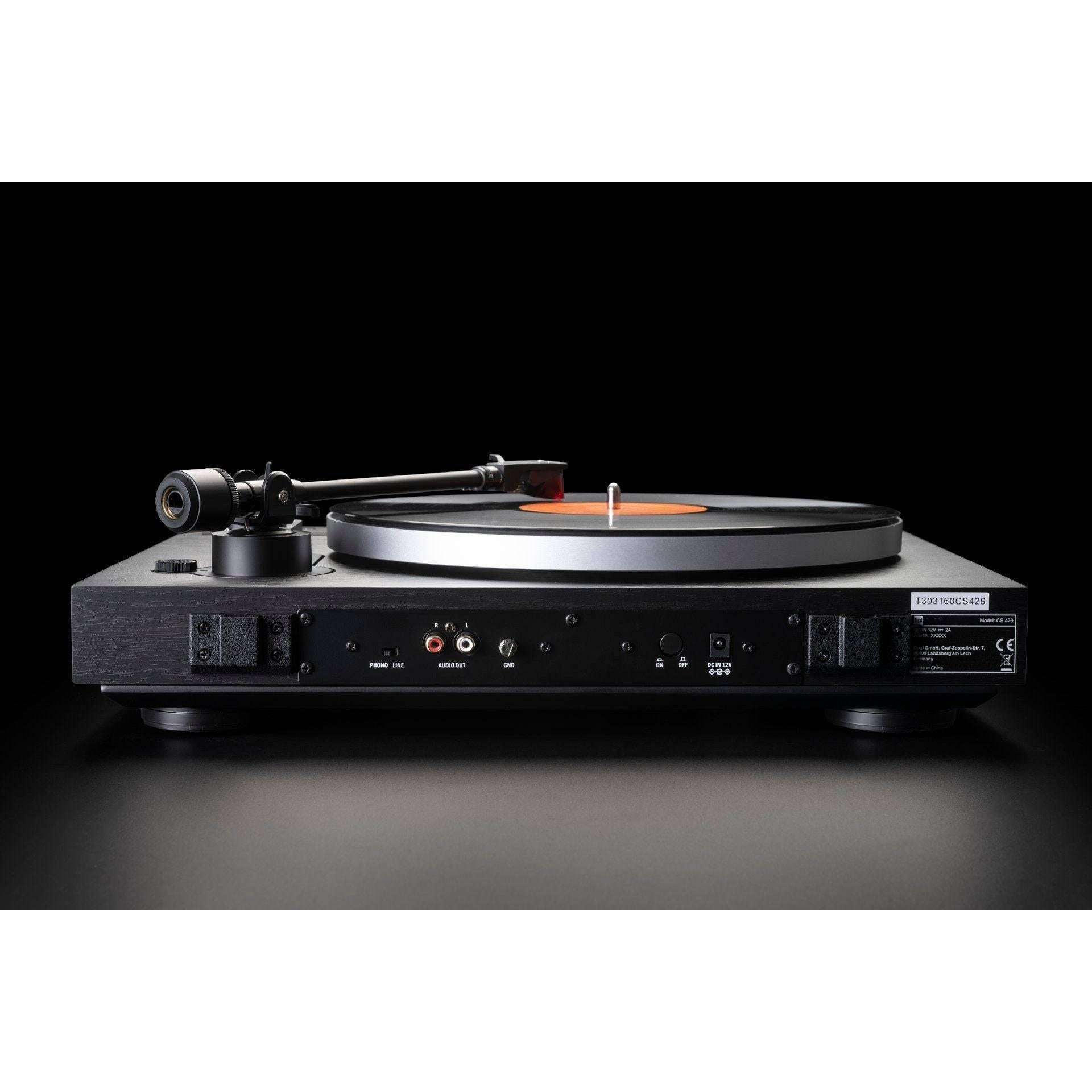

Connection:

RCA socket

Connection to Phono Input:

✓

Connection to Line Input:

✓

Digital Output:

✕

Dimension, closed dustcover:

435 x 367 x 145 mm

Dimension, open dustcover:

D: 415 mm / H: 400 mm

Weight:

6,2 KG

Power plug AC / DC:

External power supply

• DUAL CS 429 Manual V4 DE EN
• DUAL CS 429 Manual V3 FR
• DUAL CS 429 Manual V2 KR
