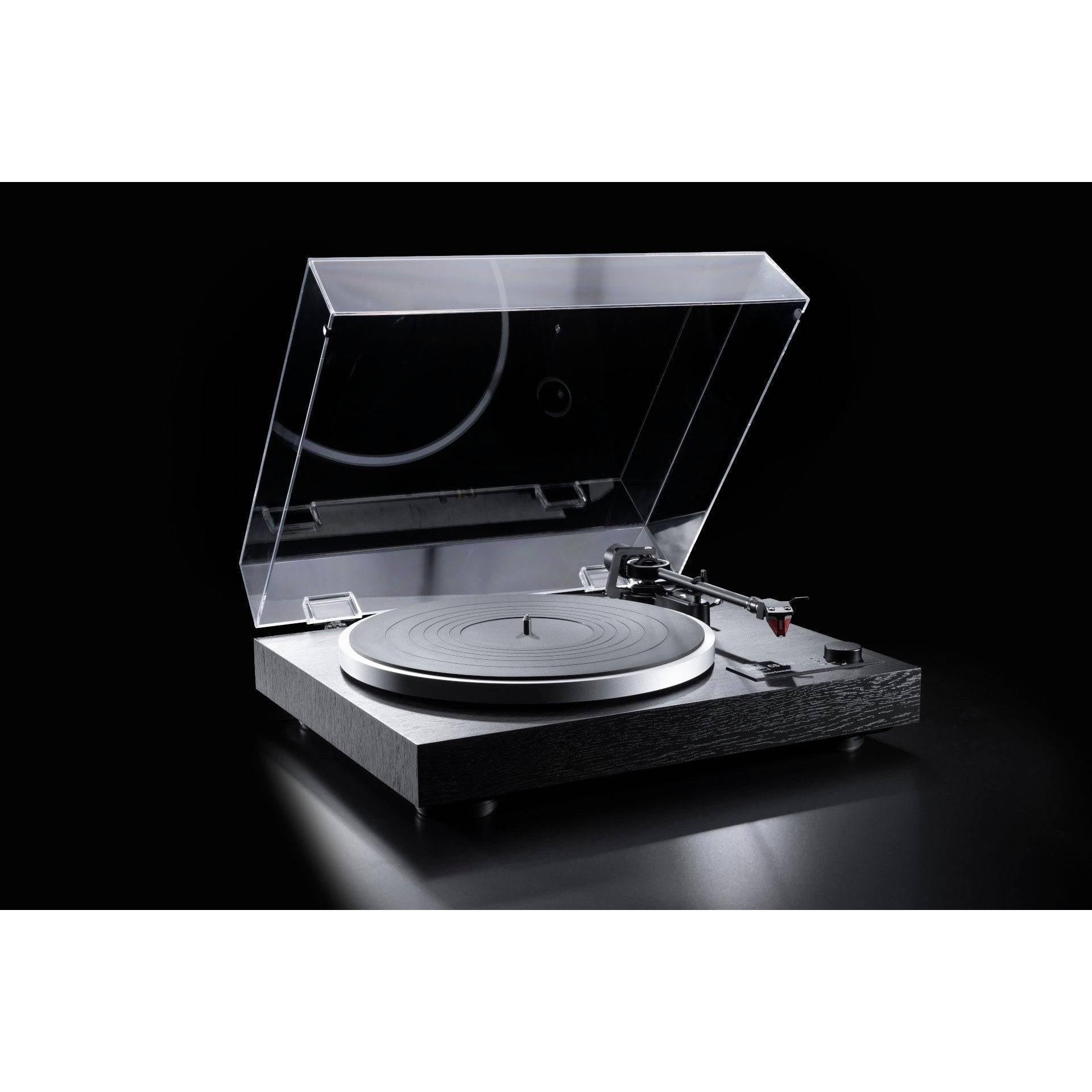

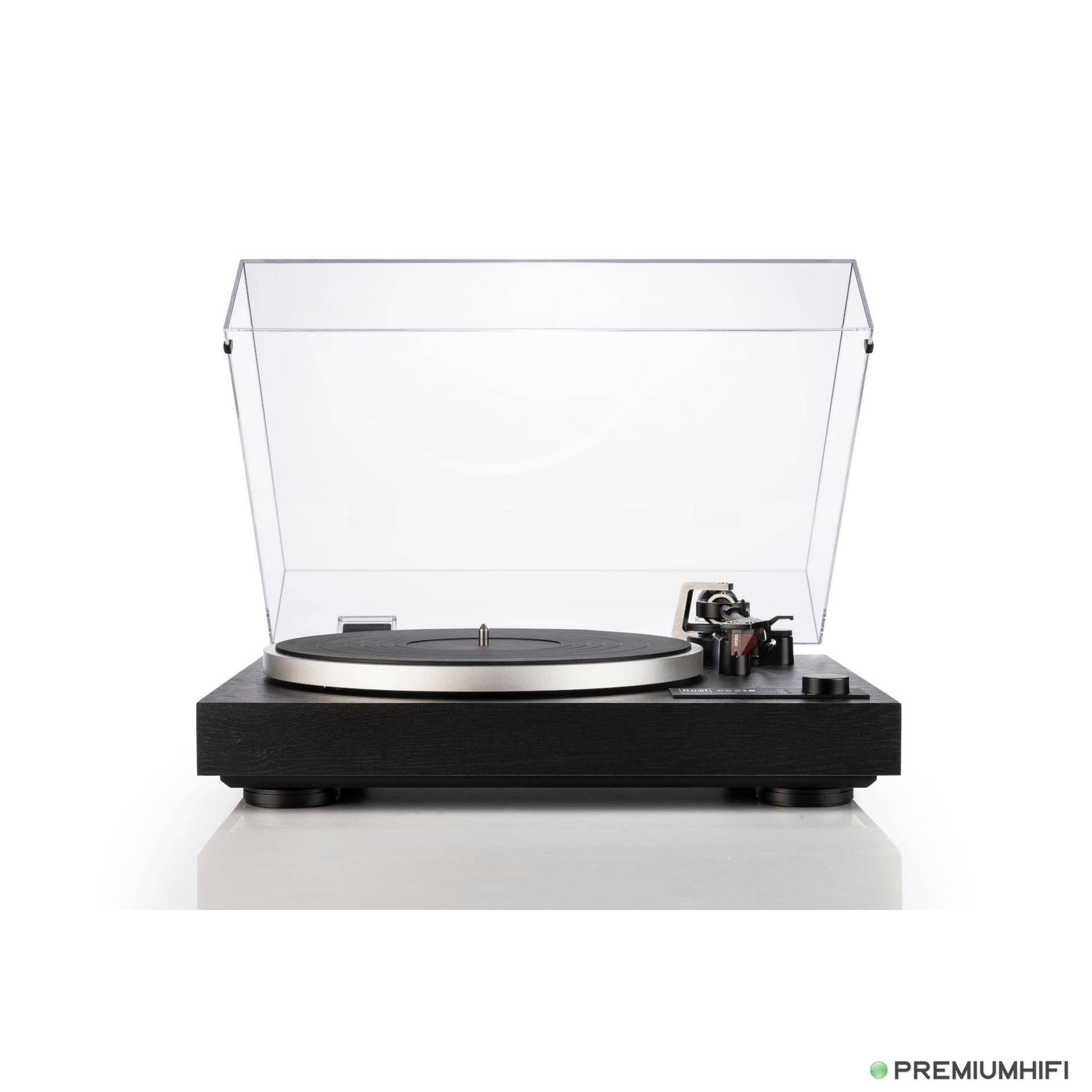

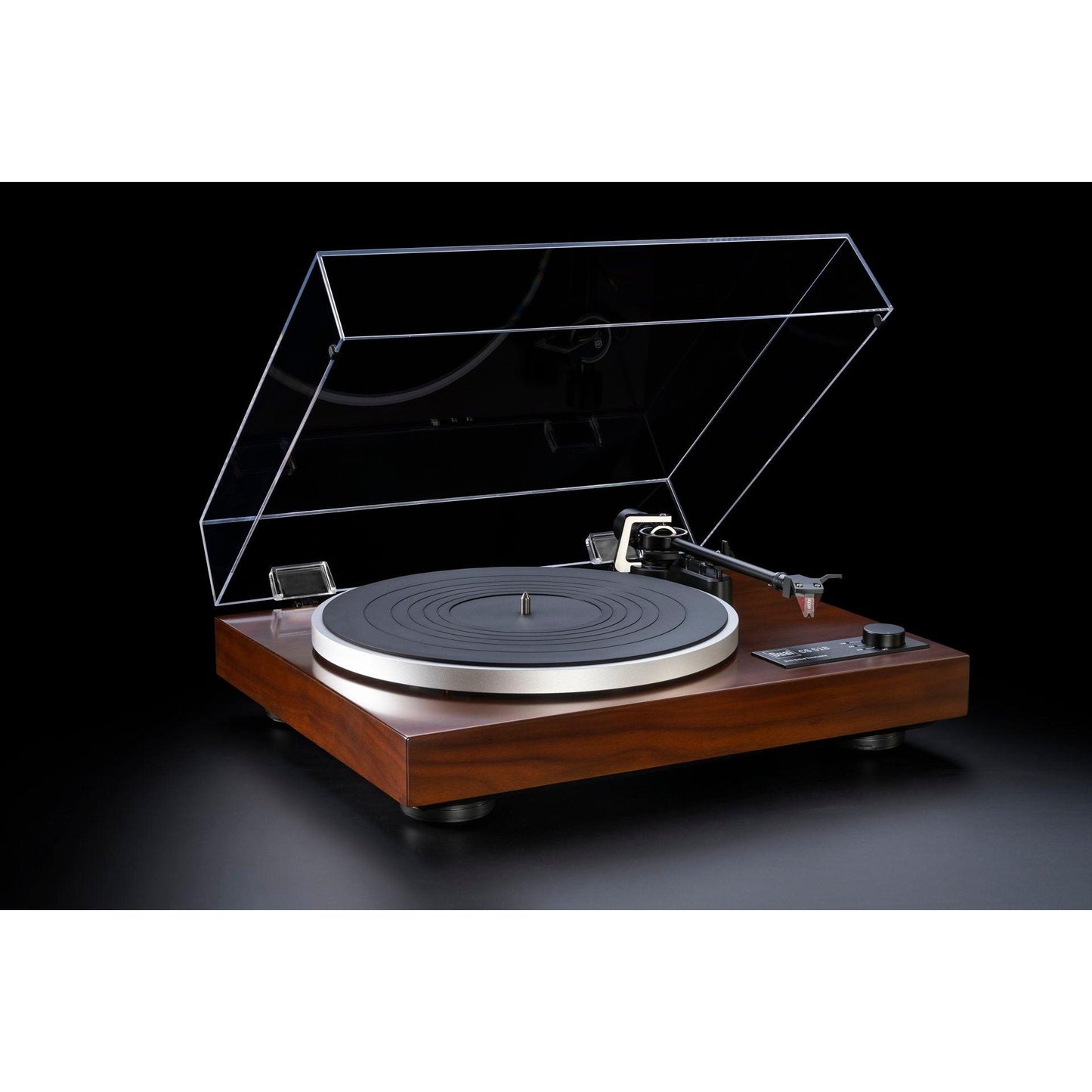

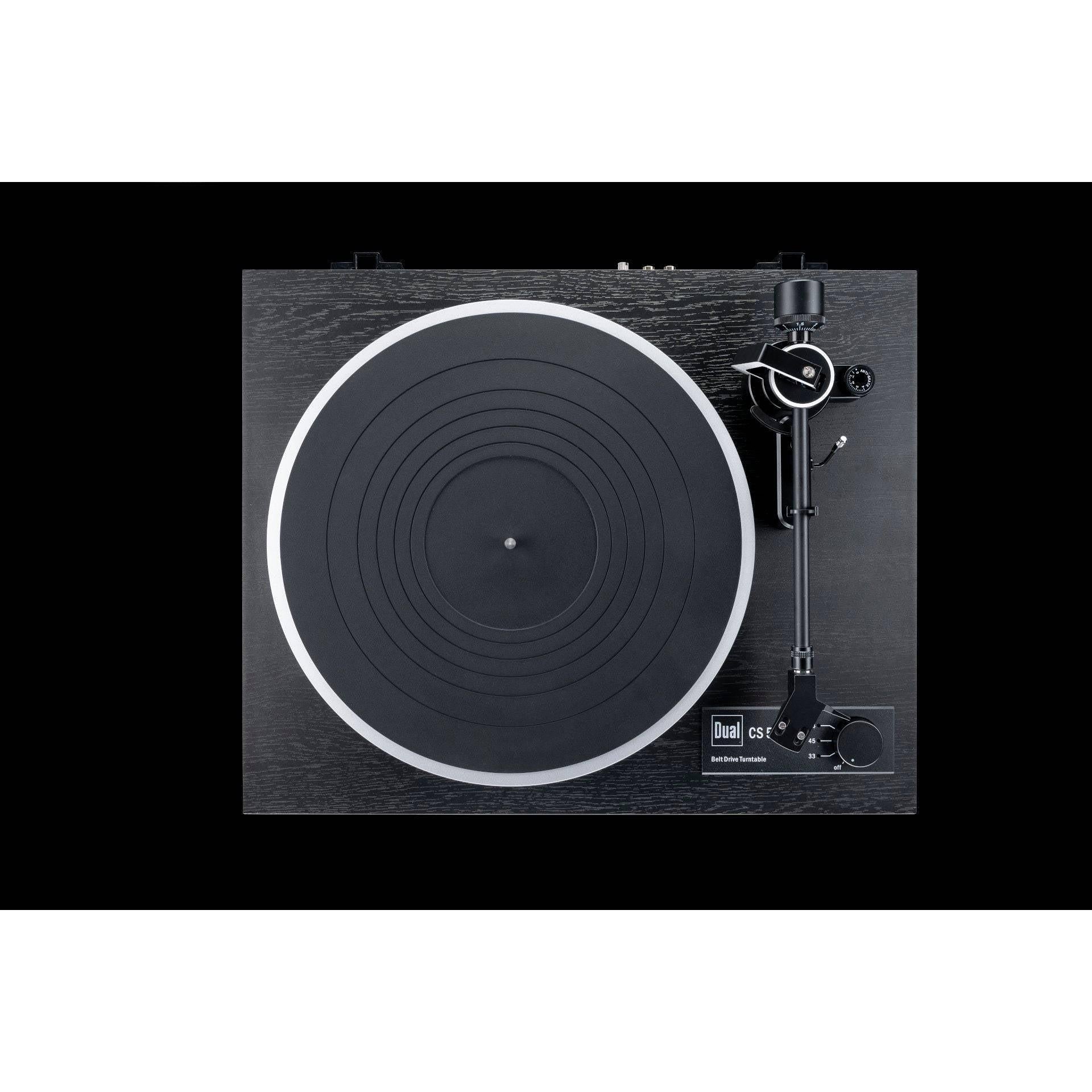

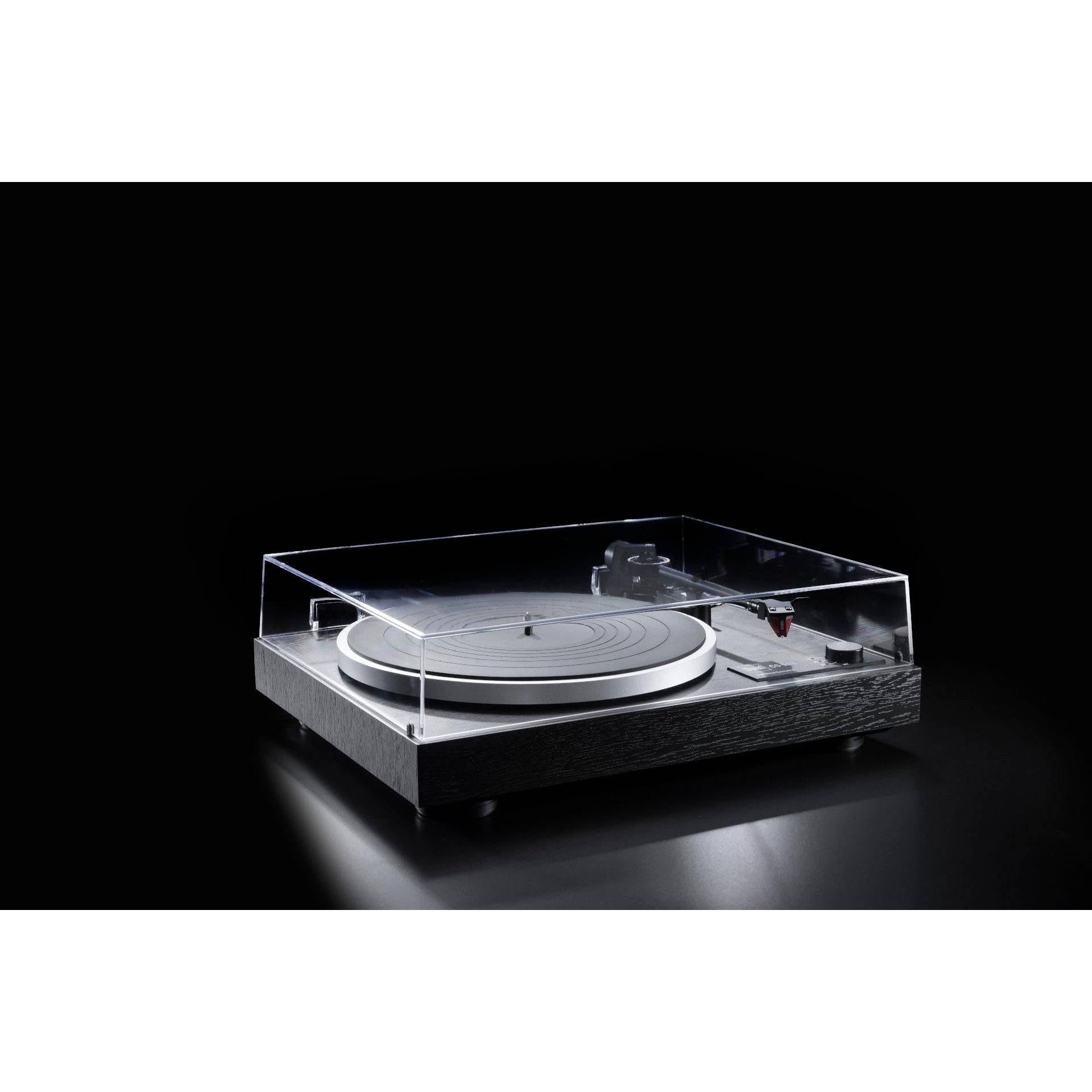

CS-518

CS 518
WITH FULL CARDAN TONEARM

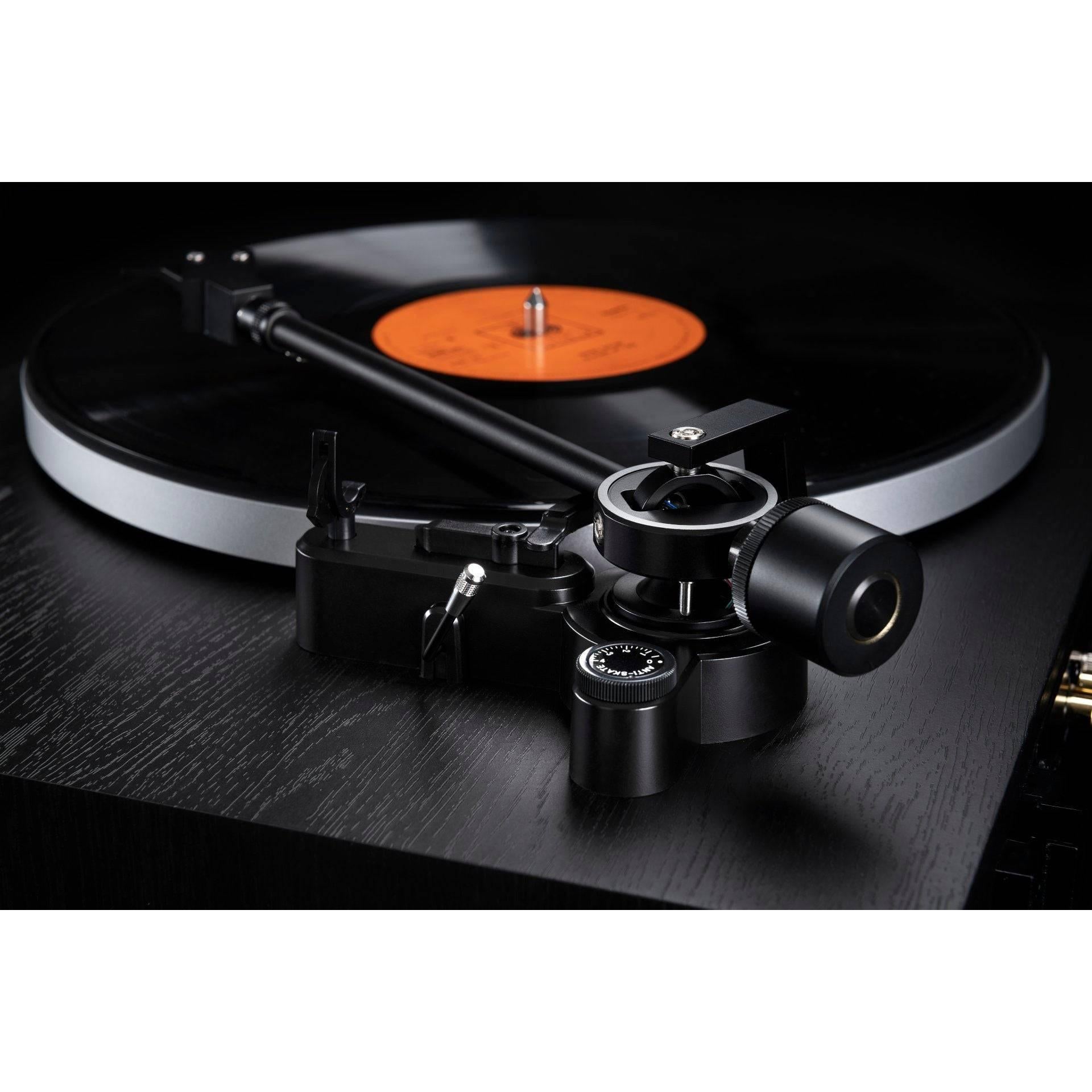

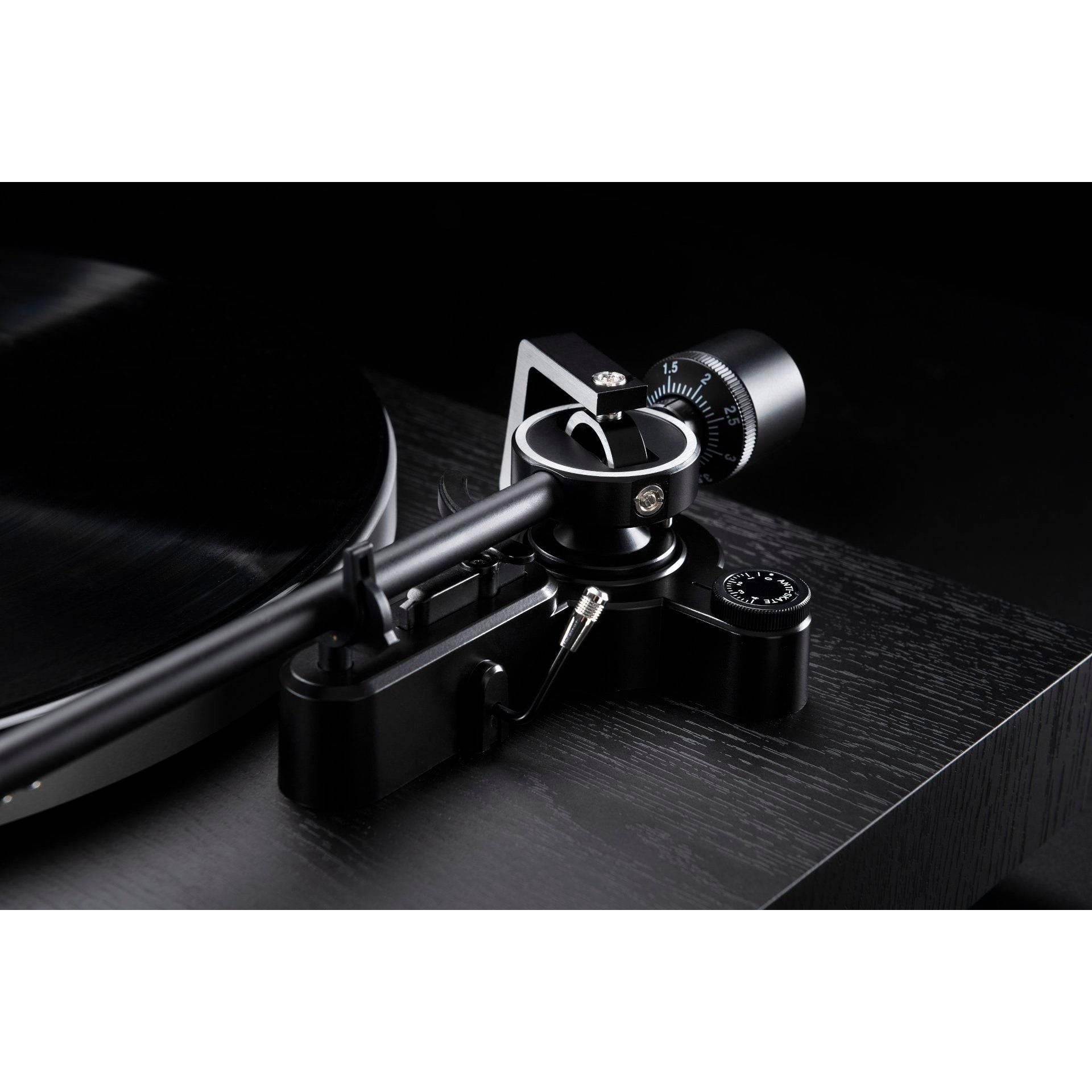

For the true Vinyl Enthusiast, the CS 518 is equipped with a twin gimbal tonearm design using pivot ball-bearings for optimal precision.

This superior tonearm has the ability to guide even high end pickups with the greatest degree of precision and reliability.

The Ortofon 2M Red pickup and a switchable MM-phonopreamplifier are an integral part of this ready to run package.

TECHNICAL DATA:
Motor:
Drive:

Belt

Speed settings:

33/45/78

Wow & Flutter:

< ±0,1 % (DIN WTD)

Tonearm:
Auto-Start/-Stop-Function:

✕

Bearing:

4 x Pivot ball-bearing / twin gimbal mounting

Effective length:

221,5 mm

Offset Angle:

25,6°

Overhang:

19 mm

Type:

statically balanced

Stylus Pressure Range:

0 g bis 4 g

Cartridge Weight Range:

5 g bis 9 g

Factory installed pick up:

Ortofon 2M Red

Platter:
Material:

Aluminium die-cast

Mat:

Rubber 2,5 mm

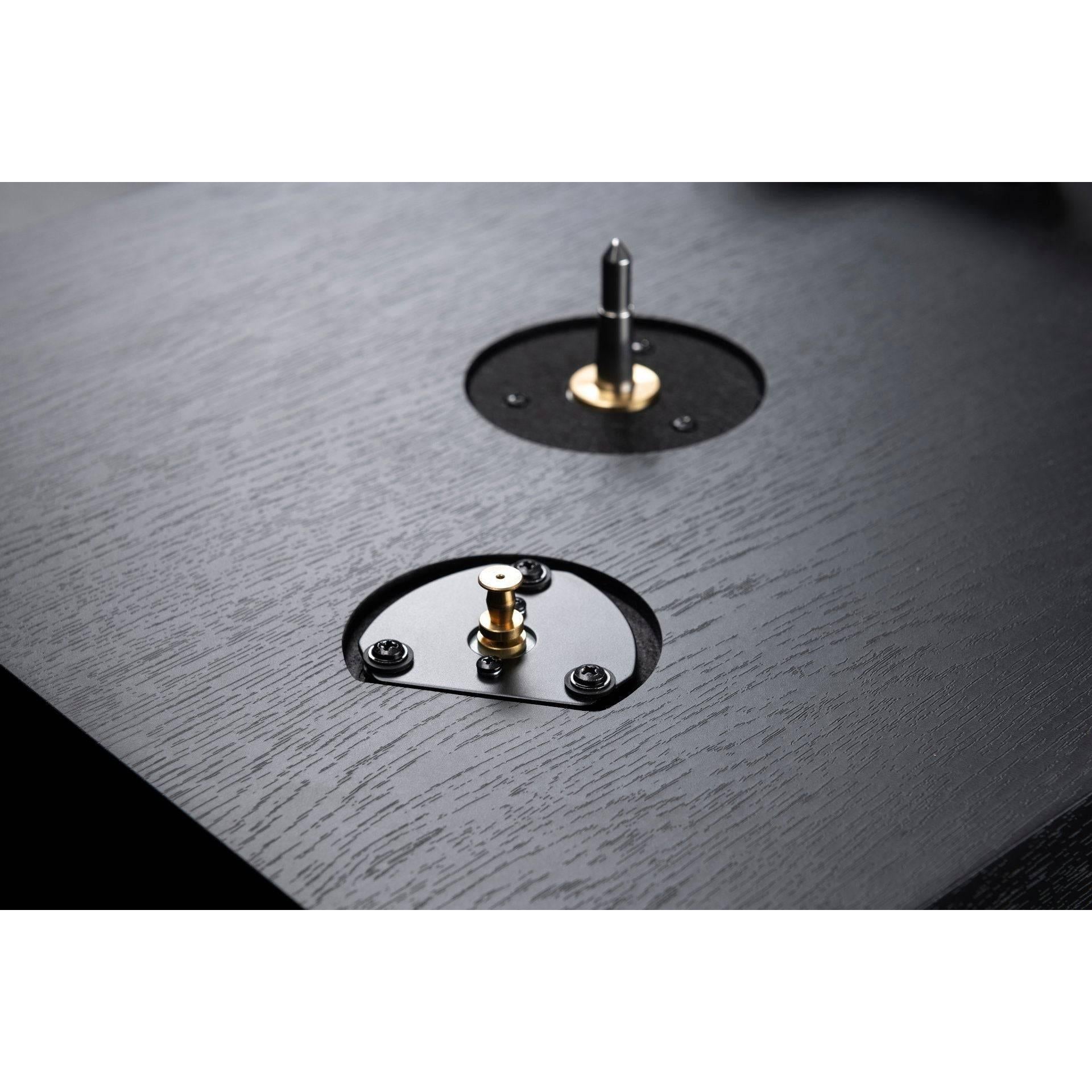

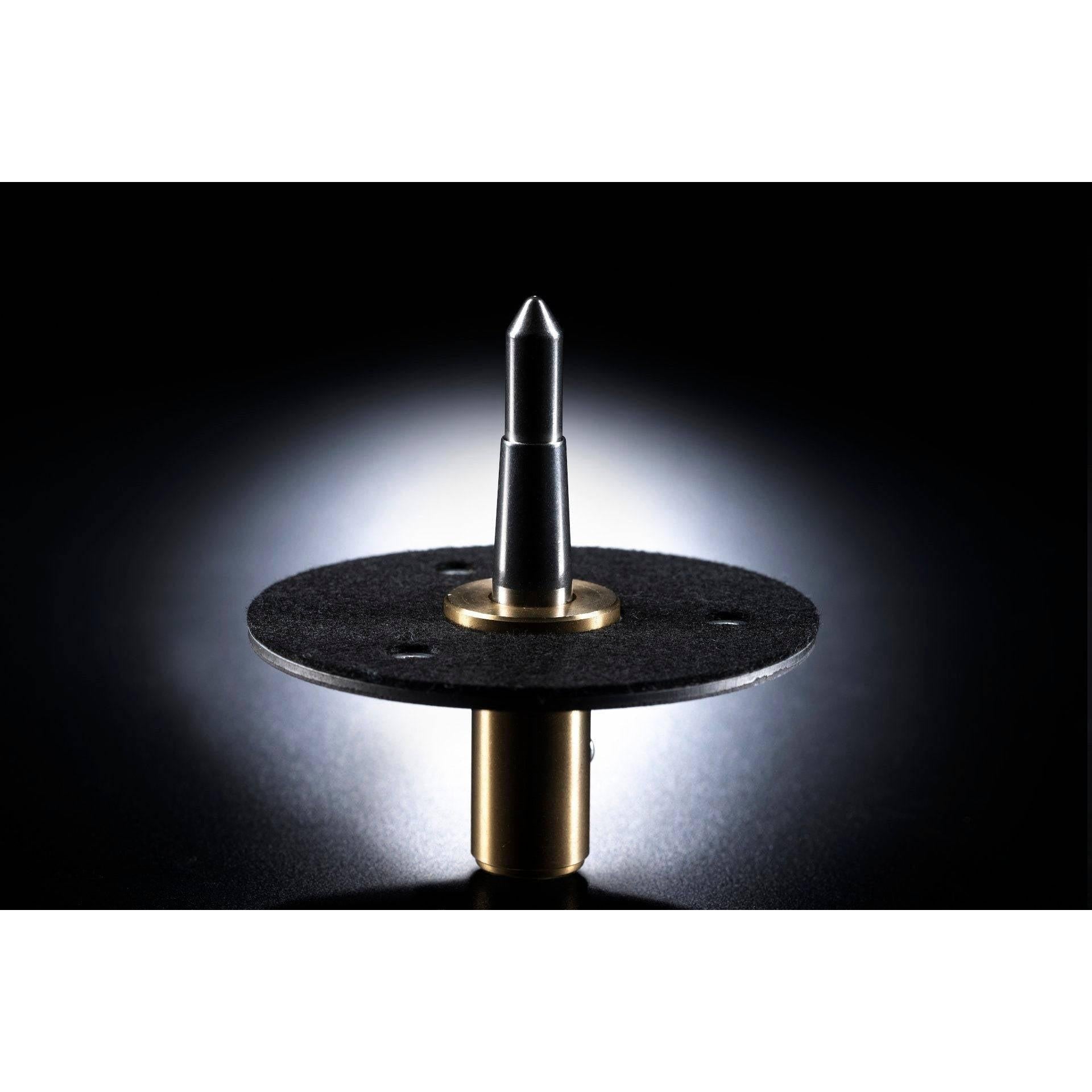

Bearing:

Hardened steel spindle Brass bushing:

Diameter:

305 mm

Weight (incl. Mat):

850 g

Plinth:
Material:

MDF, folded

Surface finish:

Vinyl veneer / Black

Feet:

Ø 62 mm / Elastomer

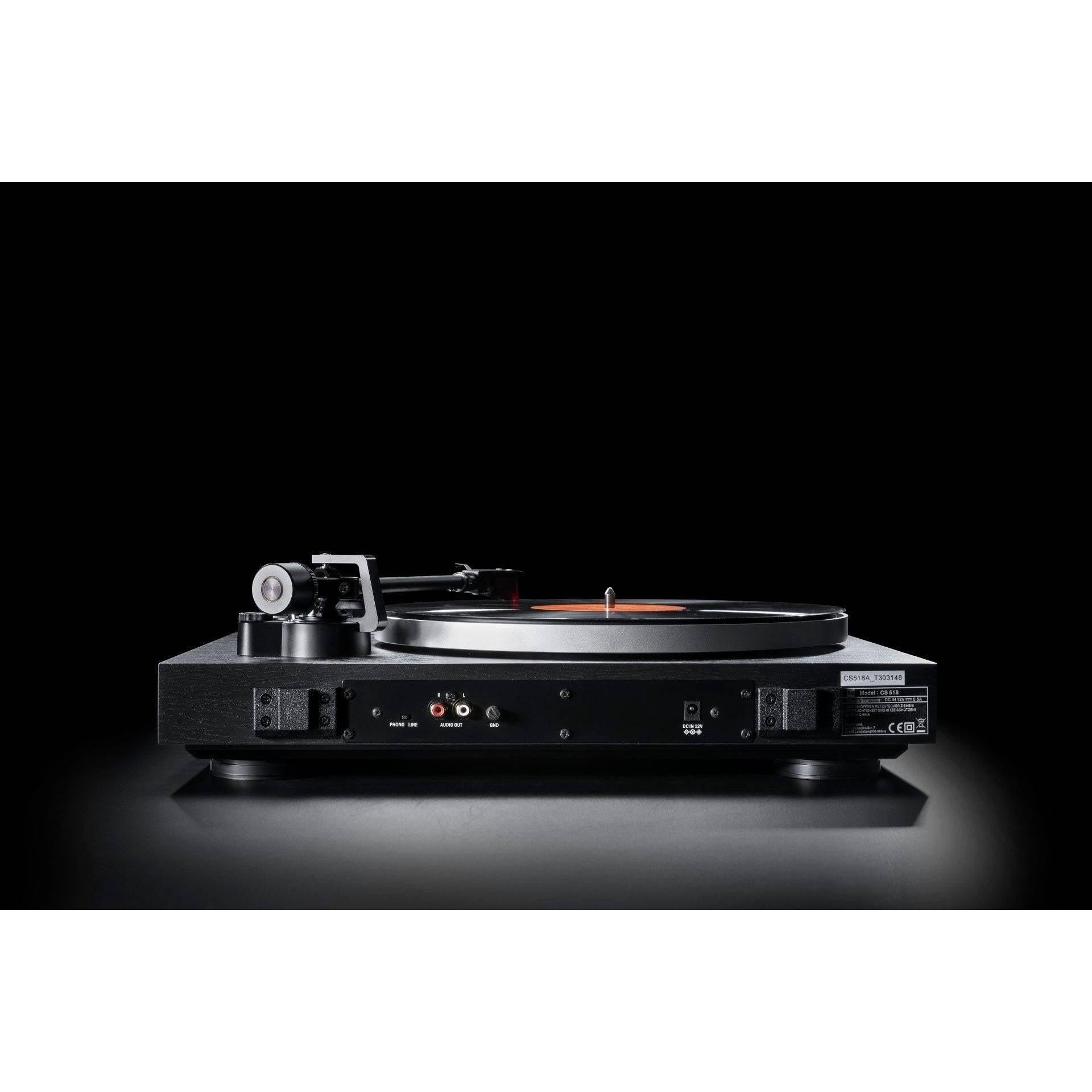

Connection:

RCA socket

Connection to Phono Input:

✓

Connection to Line Input:

✓

Digital Output:

✕

Dimension, closed dustcover:

435 x 367 x 145 mm

Dimension, open dustcover:

D: 415 mm / H: 400 mm

Weight:

5,9 kg

Power plug AC / DC:

External power supply
