🧾 Overview

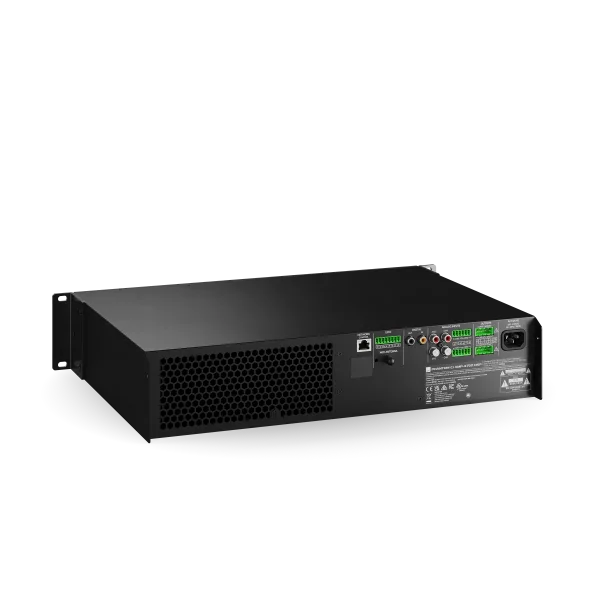

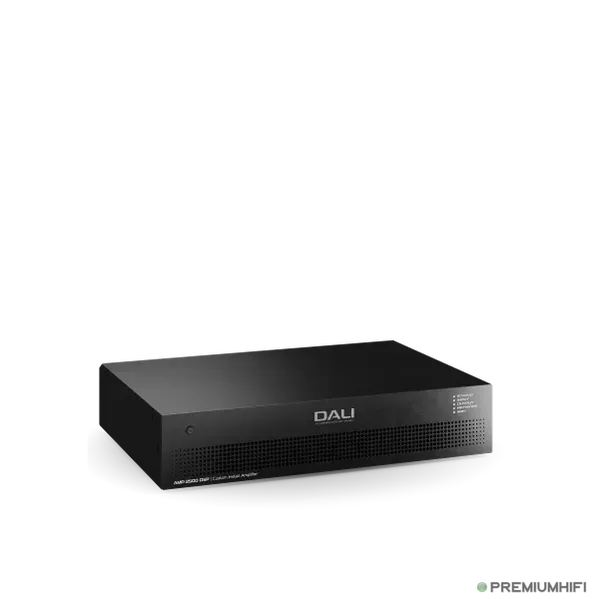

The DALI PHANTOM CI AMP‑4750 DSP is a professional‑grade, rack‑mountable, 4‑channel power amplifier delivering up to 750 W per channel (Lo‑Z) or 1500 W in bridged mode (BTL). Designed for DALI PHANTOM custom install loudspeakers and subwoofers, it also powers conventional passive hi‑fi speakers with exceptional clarity and control. Equipped with a powerful DSP engine and the DALI AMP CONFIGURATOR interface (Ethernet/Wi‑Fi), it allows precise loudspeaker preset assignment, flexible routing, EQ, and system tuning — making it perfect for high‑end home cinema, multi‑zone audio, and professional installations.
✅ Key Features
- ✅ 4 × 750 W (4 Ω) Class D UMAC™ amplification with ultra‑low distortion
- ✅ Drives up to 8 matched DALI speakers or subwoofers
- ✅ DSP with factory loudspeaker presets and custom EQ
- ✅ 4 × balanced/unbalanced analogue inputs + 1 × S/PDIF digital input
- ✅ Ethernet & Wi‑Fi control via DALI AMP CONFIGURATOR
- ✅ Lo‑Z, Hi‑Z (70/100 V), and BTL output modes
- ✅ Advanced functions: crossover, FIR filters, compression, limiter, delay
- ✅ Comprehensive protection circuits for reliability in demanding installs
📊 Technical Specifications ▼
| Parameter | Value |
|---|---|
| Frequency Range | 12 Hz – 20 kHz (±1 dB, 8 Ω) |
| Inputs | 4 × Analogue unbalanced (RCA), 4 × Analogue balanced (Euroblock), 1 × S/PDIF (RCA) |
| Outputs | 4 × Lo‑Z (4–16 Ω), 2 × Hi‑Z (70 V/100 V), 1 × S/PDIF digital out (RCA) |
| Max Speaker Cable Size | 2.5 mm² / AWG 14 |
| Output Power @ 4 Ω | 4 × 750 W (SE) / 2 × 1500 W (BTL) |
| Output Power @ 8 Ω | 4 × 400 W (SE) / 2 × 1500 W (BTL) |
| Output Power @ 70 V | 2 × 1200 W (BTL) |
| Output Power @ 100 V | 2 × 1500 W (BTL) |
| Total System Power | 3000 W |
| Power Consumption | 1100 W |
| Output Voltage | SE: 85 Vp / 170 Vpp — BTL: 170 Vp / 340 Vpp |
| Amplifier Technology | UMAC™ Class D full‑bandwidth PWM modulator |
| Signal‑to‑Noise Ratio | >106 dB (A‑weighted) |
| THD+N | <0.05 % (20 Hz–20 kHz, 8 Ω) |
| Protection | Short circuit, DC, under‑voltage, temperature, overload |
| Mounting | 2U rack mount or free‑standing |
| Power Supply | UREC™ universal mains SMPS with PFC |
| Operating Voltage | 100–240 V AC, 50/60 Hz |
| Standby Consumption | <0.5 W |
| Dimensions (H × W × D) | 88 × 440 × 332 mm |
| Weight | 7.22 kg |
| Shipping Weight | 9.34 kg |
| Accessories | 2 × balanced input connectors, 2 × speaker output connectors, GPIO connector, mains cable, 4 × rubber feet, rack ears |
📦 What’s in the Box
- 📦 DALI PHANTOM CI AMP‑4750 DSP amplifier
- 🔌 Mains power cable
- 🎚 Balanced input connectors (×2)
- 🔊 Speaker output connectors (×2)
- ⚡ GPIO socket connector
- 🛠 Rack mount ears (pre‑installed)
- 🦶 Adhesive rubber feet
🔄 Compatibility
✔ Compatible with all DALI PHANTOM CI loudspeakers & subwoofers ✔ Powers up to 8 matched speakers/subwoofers ✔ Supports Lo‑Z, Hi‑Z (70/100 V), and BTL configurations
