Denon

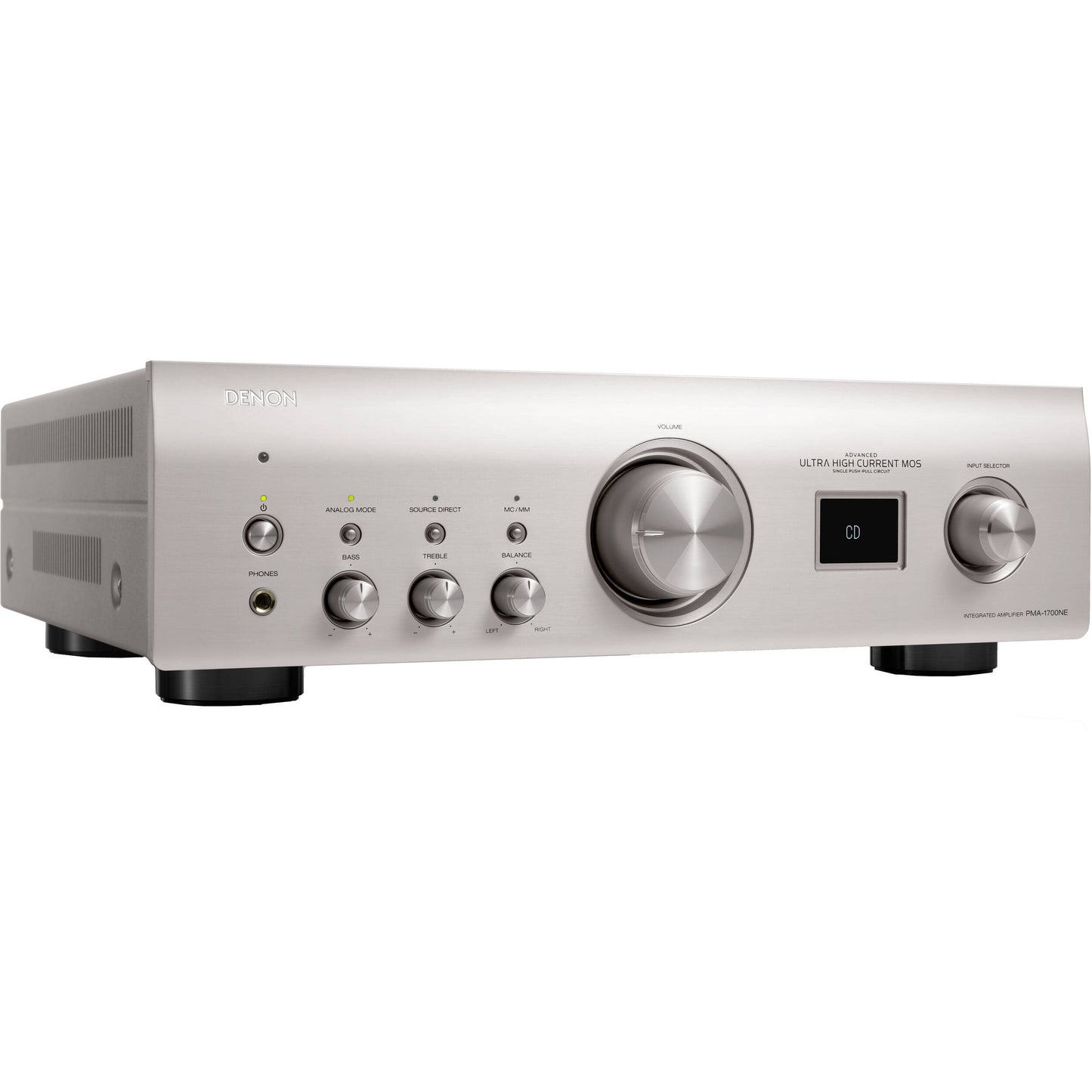

Denon PMA-1700NE HI-FI amplifier with DAC
Denon PMA-1700NE HI-FI amplifier with DAC
Regular price
€2.099,00 EUR
Regular price
Sale price
€2.099,00 EUR
Unit price
per
Shipping calculated at checkout.
✅Promokodu izmanto pie pasūtījumā noformēšanas
✅Use promocode at checkout
✅Промокод используй при оформлении заказа
Couldn't load pickup availability
📞 Jauta par preču esamību pirms pasūtījumā veikšanas
📞 Ask about the availability of goods before placing an order
📞 Спрашивайте о наличии товара перед оформлением заказа
📞 Premium HIFI contacts
📞 Premium HIFI contacts
+37129541259
arkadijs.zenins@outlook.com
Shipping Terms
Shipping Terms
- Shipping method: Standard
Shipment cost: - EU 20€
- LT, EST 5€
- LV 2€
- RU, USA 200€
- Other countries 200€
- Dispatched usually 2 - 5 business days after order placement
- Some times, dispatched up to 20 business days, we will inform additional, after order placement.
General
| Unit (W x D x H) | 434 x 410 x 135mm 17.1 x 16.1 x 5.3in |
| Cabinet Size (W x D x H) | 434 x 374 x 135mm 17.1 x 14.7 x 5.3in |
| Net weight | 17.6kg 38.8lb |
| Packaging Dimensions (W x D x H) | 548 x 520 x 249mm 21.6 x 20.5 x 9.8in |
| Packaging gross weight | 20.4kg 45lb |
| Carton Color | 2 Color |
| Cushion / Packing | 4 Separate / Sheet |
| Panel Color | SP / BK |
| Front (Center) Panel | Aluminum |
| Side cover | SECC with 4 straight emboss |
| Side screw | SP: Nickel / BK: Black |
| Rear Panel | SECC t1.0mm |
| Chassis Material | SECC t1.2mm |
| Bottom Layer | Single |
| Volume Knob | Aluminum |
| Input Selector | Aluminum |
| Bass/Treble/Balance/ Phono Sel knobs | Aluminum |
| Power button | Aluminum |
| Other knob/button (LOUDNESS, SOURCE DIRECT etc) | Mold (Source Direct,Analog Mode,MM/MC) |
| Foot | ABS resin with rigid rib w/Hot stamp (H : 20mm) |
| Heatsink for Power Amplifier | Extruded Aluminum |
Specifications
| Rated Output Power | 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%) |
| Speaker Impedance | A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm |
| Frequency Response | 5Hz - 100kHz (0~ -3dB) |
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Dumping Factor | 100 and over |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 |
| RIAA Deviation | 20 Hz - 20 kHz ±0.5 dB (MM/MC) |
| Phono Maximum Input | MM : 130mV / 1kHz MC : 10mV / 1kHz |
| Input Sensitivity: CD/LINE/RECORDER | 125 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.85V / 47kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB) |
| Tone Control | BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB |
| Power Consumption | 295W |
| at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
Audio Feature
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Power Trans | Dual El Core |
| Pre Amplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Volume | Electric (MUSES 72323) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Type of Tone Control | Electric Controlled by Potentiometer |
| Headphone Circuit | Use Poweramplifier |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| Other | 70 |
| DAC Circuit | PCM1795 |
| Digital Filter | Fixed |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
| Asyncronous mode (for USB-B input) | yes |
| Isolator (for USB-B input) | Yes Full Isolation |
Connectivity
| Phono Input | Yes (MM / MC) *default=MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER) |
| Optical input / output (Maximum Support) | 2 / 0 (192kHz/24bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192kHz/24bit) |
| Ext. Pre Input (Power Amp Direct) | Yes(Ext.Pre) |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Speaker Terminal | Gold Plated |
| Headphone Output | 1 (Turn off the speaker when inserting headphone) |
| Remote Control Bus Terminal | Yes (mini) |
| AC Inlet | Yes |
| Wi-Fi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| Module or Main Device | New XMOS (XU210-256-TQ128 ) |
| PCM Sample Rate | ~384kHz/32bit |
| DSD Audio Streaming (DoP) | ~11.2MHz |
| Roon Certificaton | Yes(Roon Tested) TBD |
Control
| Remote Controller | System Remote (w/CD Player Control) |
| Unit control (Button) | Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC |
| Unit control (Knob) | 5 VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE |
| LED | POWER: 1 Red / Green ANALOG MODE: 1 Green SOURCE DIRECT: 1 Green MM / MC :1 Green |
| Front Panel Display | Yes (OLED 128 x 100 dot) MXS4036-A |
| Display Language | Alphabetical |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| TV Auto-play (Opt/Coax digital-in detecter) | Yes |
| Last Function Memory | Yes |
| Auto Standby Mode | Yes |
| Owner's Manual | Web Manual E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) Paper JP: (Japanese) |
| Quick Start Guide | Paper E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) |
| Remote Controller | Yes |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
