Lehmannaudio / Headphone Amplifier stationary

Drachenfels

Drachenfels

Regular price €599,00 EUR
Regular price Sale price €599,00 EUR
Sale Sold out
Taxes included.
🟢Insured Shipping from:  €3,00
🚚Estimated insured delivery:  10 Dec 2025 – 12 Dec 2025 LV · LT · EE
  • 🚚 Delivery in 1-4 days in the Baltics. 2-8 days EU
  • 💰 14 days return
  • 🔒 Secure payment: PayPal, 💳card, invoice
  • 🛡️Shipping insurance
  • 🟢 2 years warranty
  • 🧱 Installation service

💲Seen a better price? Let us know and we'll match it.

In stock

Shipping Terms

  • Shipping method: Standard
    Shipment cost:
  • EU 25€
  • LT, EST 6€
  • LV 3€
  • RU, USA 200€
  • Other countries 200
  • Dispatched usually 2 - 5 business days after order placement
  • Some times, dispatched up to 20 business days, we will inform additional, after order placement.

https://premiumhifi.lv/policies/shipping-policy

🟠 Taxes 🟠


Prices include VAT for EU countries. For non-EU countries, prices are shown without tax. Additional customs duties may apply. Please check with your local customs office for details.

Information
Specifications

Input impedance: 47 kOhms

Maximum gain: 12 dB with maximum potentiometer setting

Frequency Response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)

Signal to noise ratio: > 85 dB at gain 0 dB

THD: < 0,006 % at 18 mW/330 ohms

Channel separation: > 80 dB at 10 kHz

Output power: 330 ohms/110 mW 33 ohms/180 mW

Output impedance: pre-out 105 ohms phones out 5 ohms

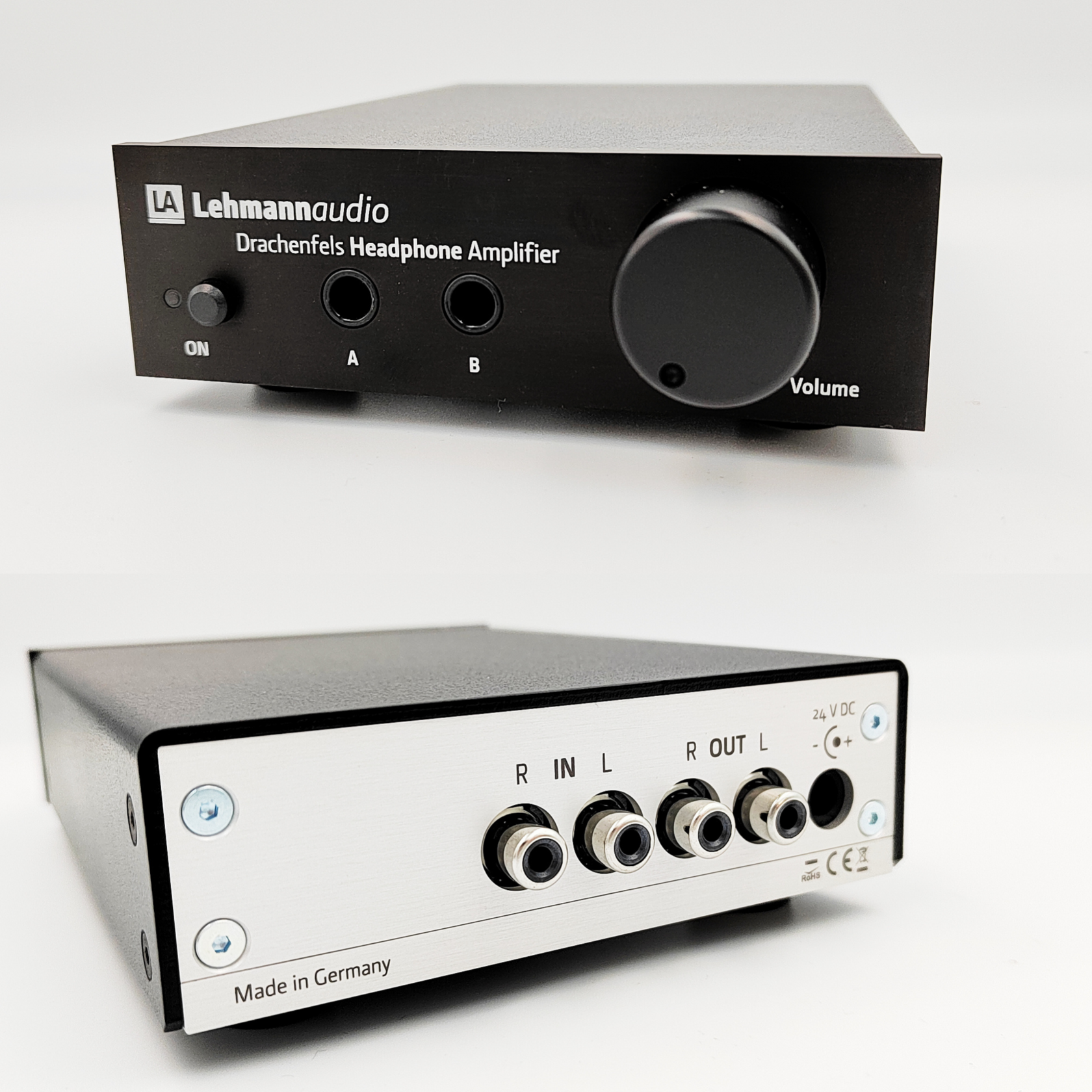

Connectors audio: Neutrik headphone sockets with gold-plated contacts 1 x pre-out 2 x phones out Line in/pre-out: RCA

Power consumption: app. 4 W through external wide range wall power supply (without any optional pc board)

Product Type: Headphone amplifier

LxWxH: 160x120x43 mm

Weight: 500 g
