🧾 Overview

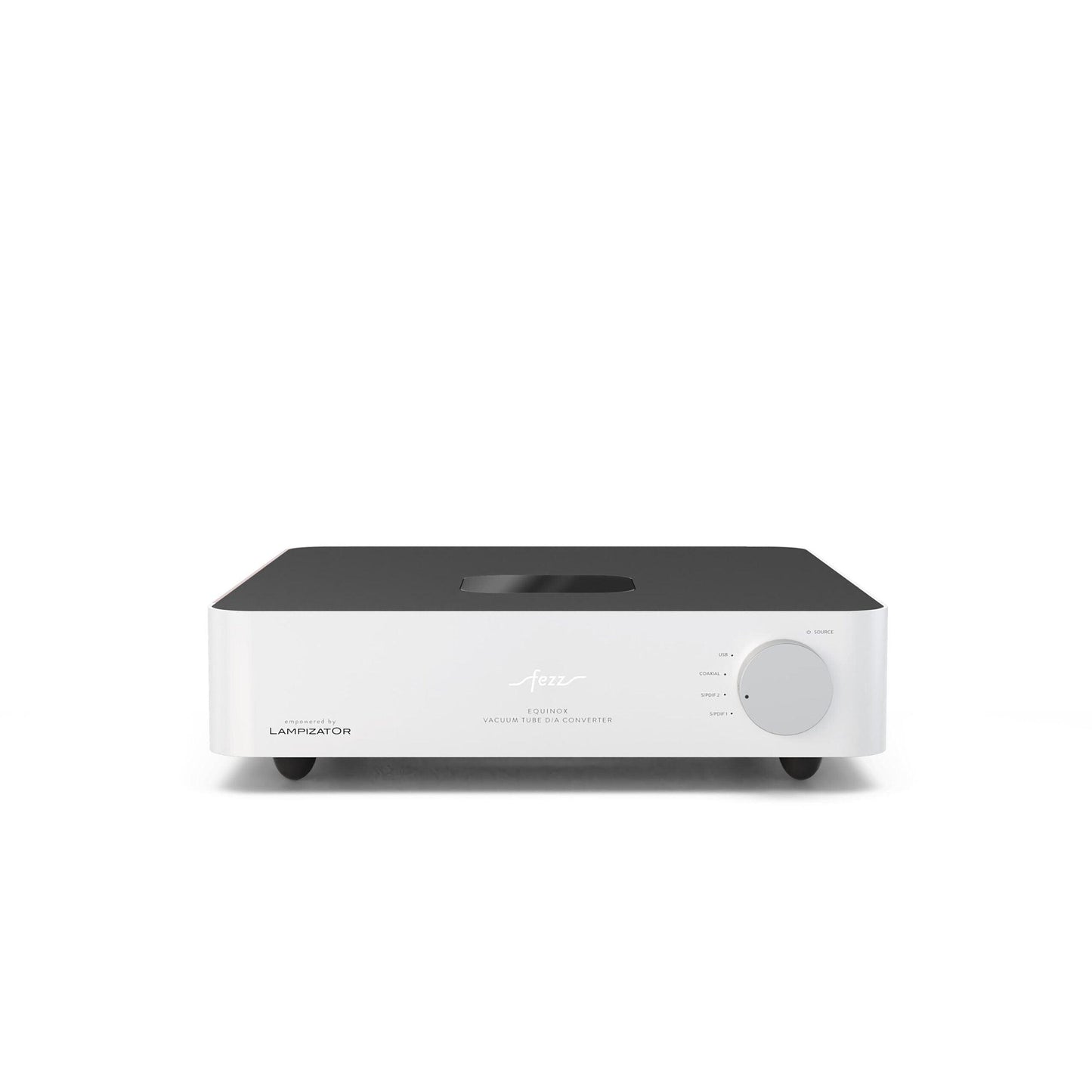

The Fezz Audio Equinox EVO is a Lampizator-licensed vacuum-tube D/A converter using a Burr-Brown PCM1794 DAC stage and a single ECC82/12AU7 output tube. With no oversampling, wide PCM support, and Toroidy.pl Supreme-grade toroidal power transformer, it delivers rich, natural timbre with excellent microdetail — a perfect bridge between digital sources and analog amplifiers.
✅ Key Features
- ✅ Licensed by Lampizator; analog stage with 1 × ECC82/12AU7
- ✅ PCM up to 24-bit/192 kHz on S/PDIF; up to 32-bit/384 kHz via USB
- ✅ “No oversampling” architecture for a purist signal path
- ✅ Inputs: USB-B, 2 × Toslink S/PDIF, 1 × Coaxial S/PDIF
- ✅ Outputs: 2 × RCA (stereo)
- ✅ Ultra-low distortion: THD < 0.05%
- ✅ Toroidy.pl Supreme-class power transformer; AKM4118 S/PDIF receiver
- ✅ Easy tube rolling via sliding top window
📊 Technical Specifications ▼
| Parameter | Value |
|---|---|
| Type | Vacuum tube D/A converter |
| Model | Equinox EVO (empowered by Lampizator) |
| DAC / Op-amp | Burr-Brown PCM1794 |
| S/PDIF Receiver | AKM4118 |
| Tube | 1 × ECC82 / 12AU7 |
| Digital Inputs | USB type-B, 2 × S/PDIF (Toslink), 1 × S/PDIF (Coaxial) |
| Analog Outputs | 2 × RCA (stereo) |
| PCM Support | S/PDIF: 32–192 kHz, 16–24 bit; USB: up to 384 kHz, 32 bit |
| Oversampling | No |
| THD | < 0.05% |
| Power Consumption | 10 W |
| Dimensions | 355 × 380 × 100 mm |
| Net Weight | 9.0 kg |
📦 What’s in the Box
- 📦 Fezz Audio Equinox EVO DAC
- 🔌 Power cable
- 📖 User’s manual
🔄 Compatibility
✔ Works with any integrated amp or preamp via stereo RCA outputs.
✔ USB class driver support: Windows 7/8/8.1/10/11 (requires Amanero driver), macOS 10.6+, Android 12+.
✔ Digital sources via USB, Coax, or Toslink; analog out to amplifiers, receivers, or active speakers.
