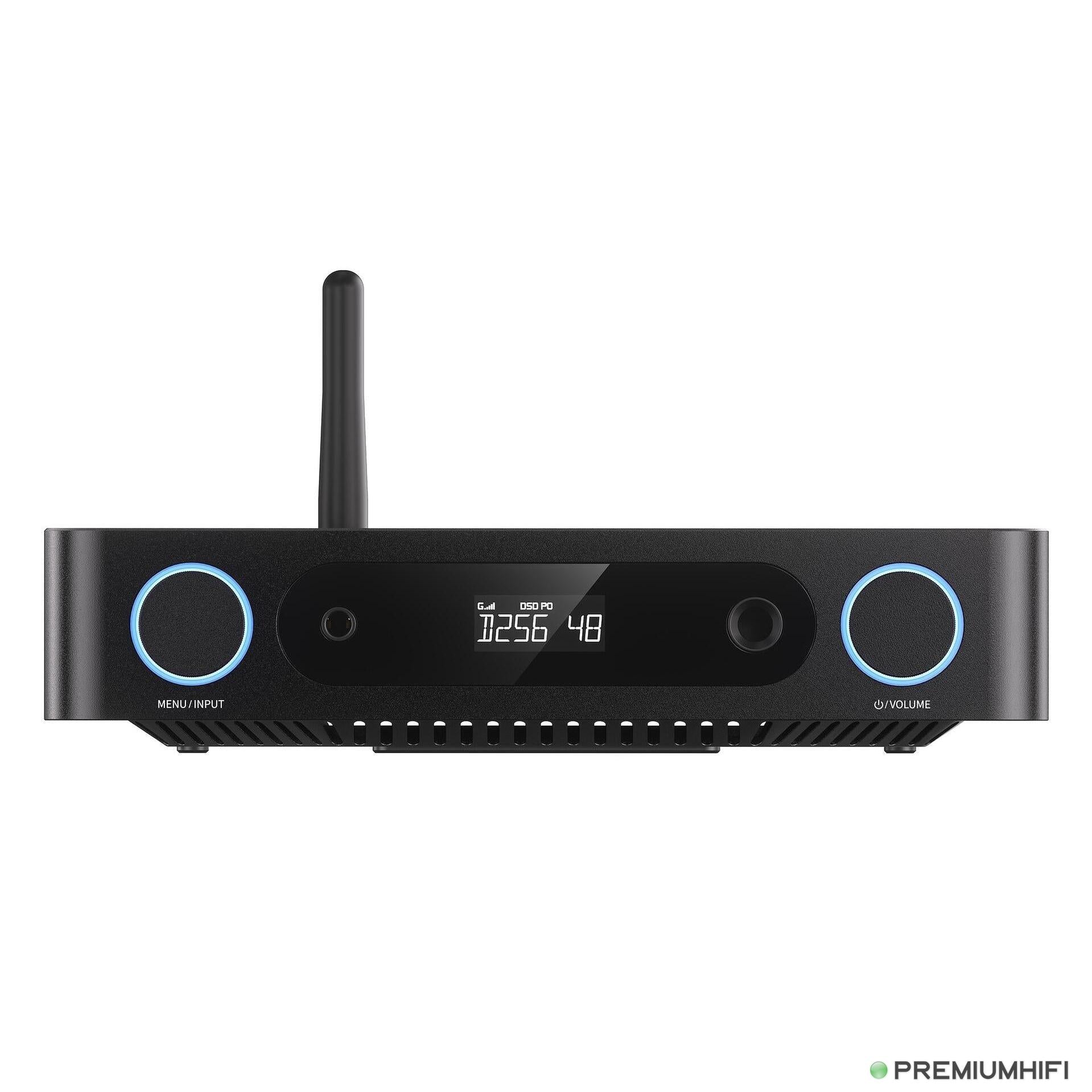

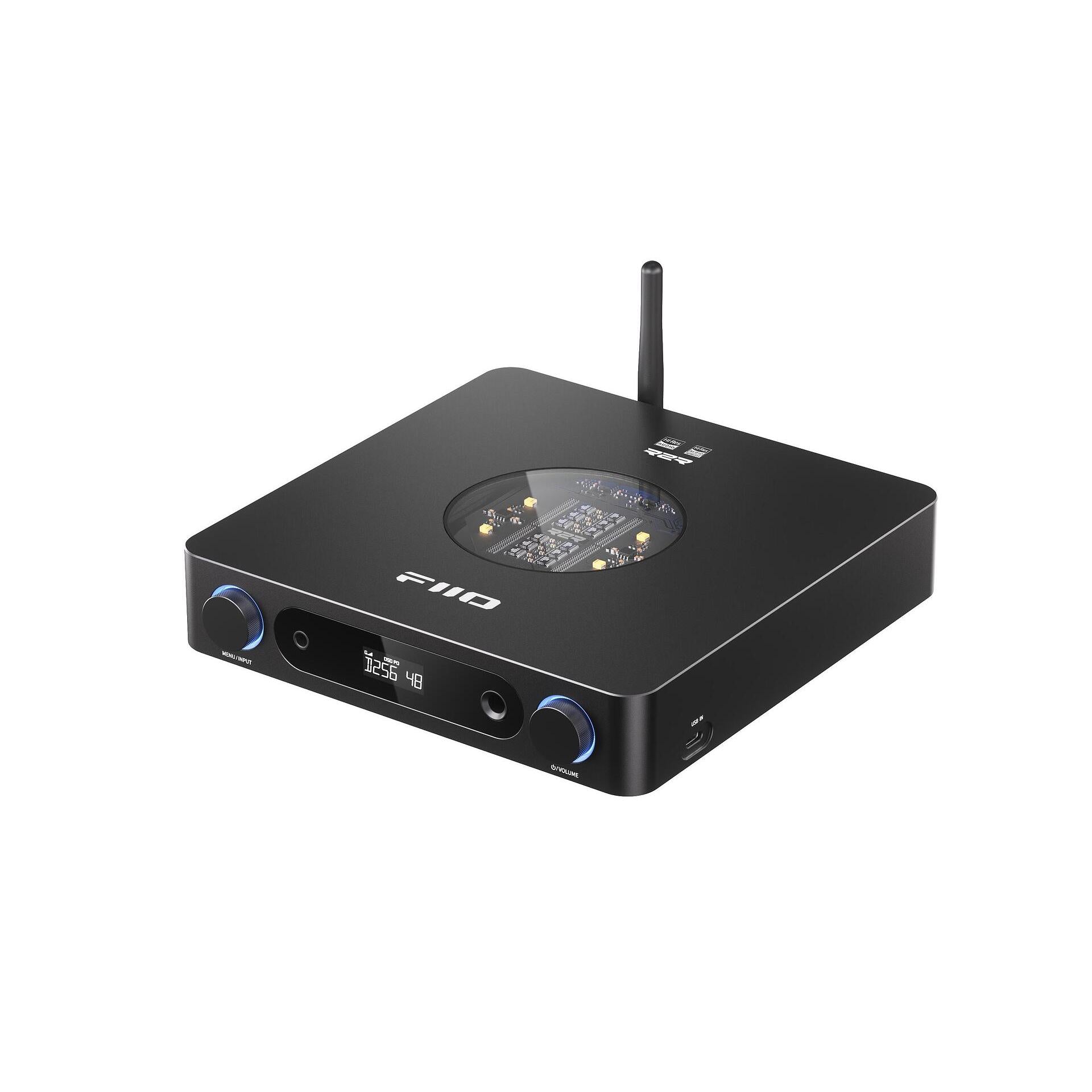

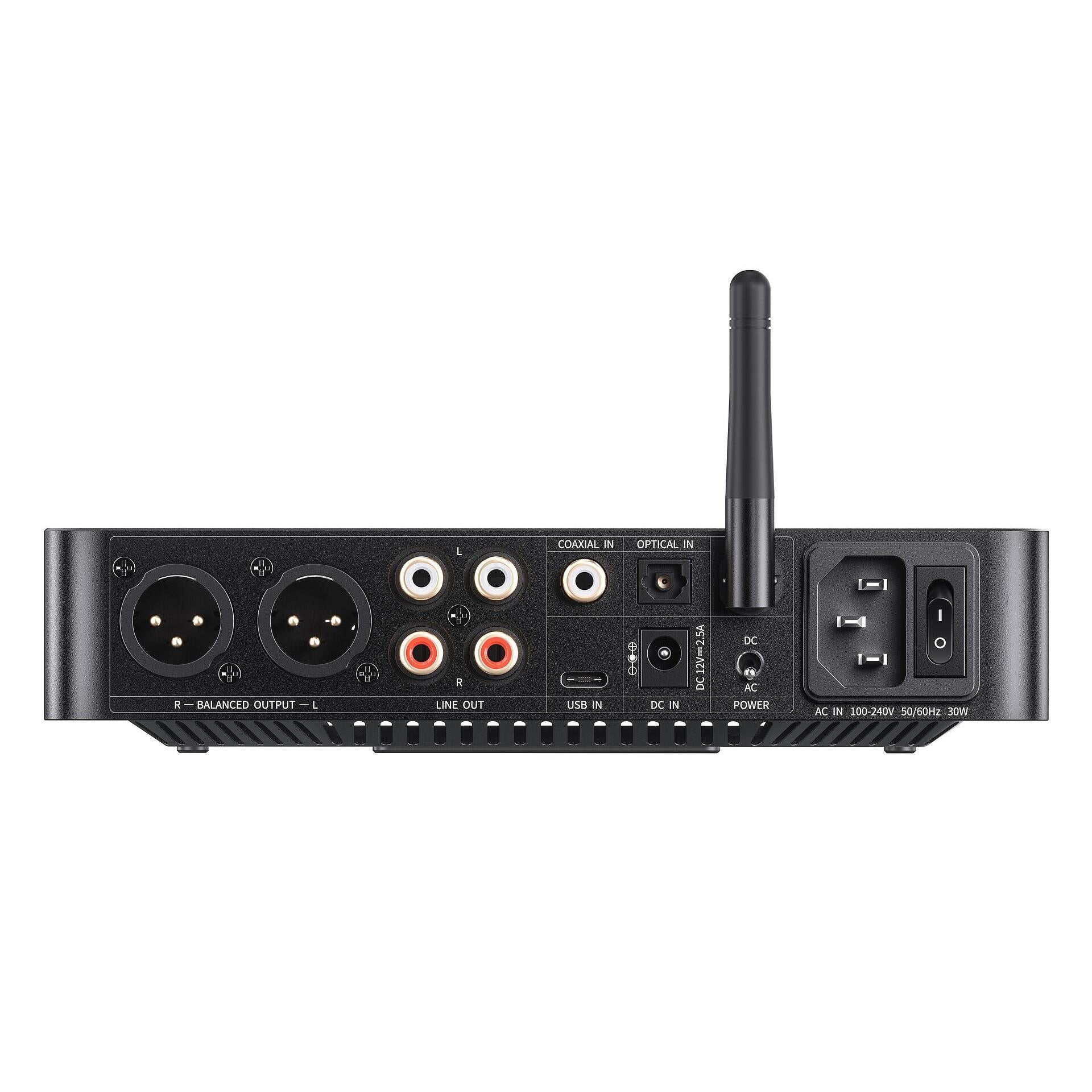

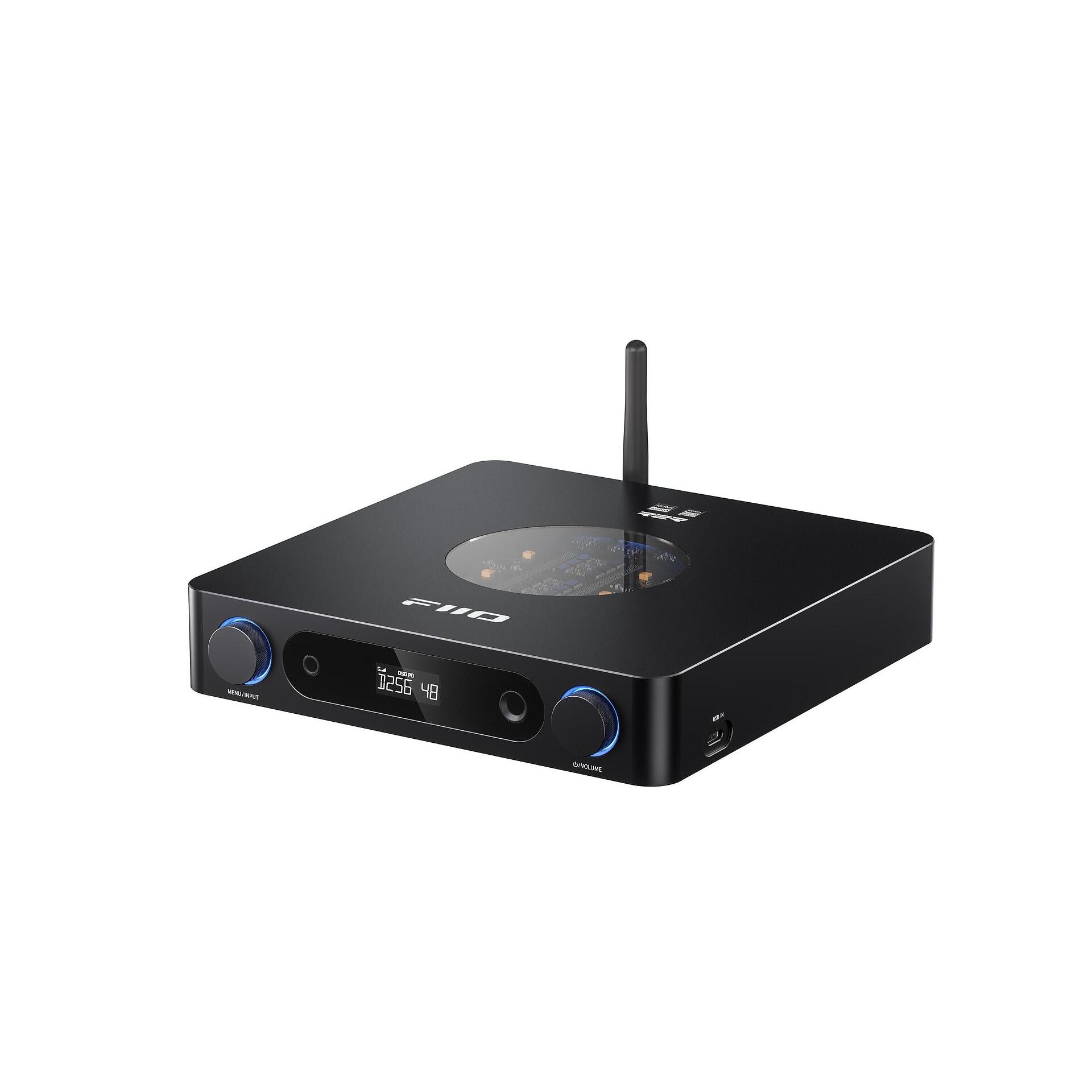

FiiO K13 R2R Desktop DAC/Headphone Amplifier
FiiO K13 R2R Desktop DAC/Headphone Amplifier
🚚 Delivery in 1-4 days in the Baltics. 2-8 days EU
💰 14 days return
🔒 Secure payment: PayPal, 💳card, invoice
🛡️Shipping insurance
🟢 2 years warranty
🧱 Installation service
💲Seen a better price? Let us know and we'll match it.
Couldn't load pickup availability
In stock
Shipping Terms
Shipping Terms
- Shipping method: Standard
Shipment cost: - EU 25€
- LT, EST 6€
- LV 3€
- RU, USA 200€
- Other countries 200€
- Dispatched usually 2 - 5 business days after order placement
- Some times, dispatched up to 20 business days, we will inform additional, after order placement.
🟠 Taxes 🟠
🟠 Taxes 🟠
Prices include VAT for EU countries. For non-EU countries, prices are shown without tax. Additional customs duties may apply. Please check with your local customs office for details.
🧾 Overview
The FiiO K13 R2R is a compact desktop DAC & headphone amplifier that brings true 24-bit fully differential R2R conversion to your desk. With an XMOS XU316 USB interface, custom HD display, and powerful balanced/SE headphone outputs, it delivers high headroom, low noise and a natural, musical presentation.
✅ Key Features
- ✅ True 24-bit R2R DAC with fully differential resistor arrays
- ✅ High-performance USB: 384 kHz/32-bit, DSD256 (XMOS XU316)
- ✅ Powerful headphone stage: up to 2.4 W + 2.4 W @ 32 Ω (BAL)
- ✅ Low noise floor: PO < 5 µV (A-weighted, M gain)
- ✅ Precise volume with NJW1195AV; OPA1642/LTA8092 op-amp array
- ✅ Multiple digital inputs: USB-C (dual ports), Coax, Optical
- ✅ Wideband response 20 Hz–80 kHz (atten. < 2.9 dB)
- ✅ Clean desktop form factor: 210 × 188 × 42 mm, ~0.98 kg; black or silver
📊 Technical Specifications ▼
| Parameter | Value |
|---|---|
| Device type | Desktop DAC & headphone amplifier |
| Colors | Black, Silver |
| Main control (MCU) | ESP32-S3 |
| USB interface | XMOS XU316 |
| DAC architecture | Fully differential true 24-bit R2R resistor arrays |
| Volume control | NJW1195AV |
| R2R & LPF op-amps | OPA1642 ×4 |
| Line-out buffer op-amps | LTA8092 ×2 |
| Headphone amplification | OPA1642 ×2 + TPA6120A ×2 |
| USB input | PCM up to 384 kHz/32-bit; DSD256 |
| Coaxial input | PCM up to 192 kHz/24-bit; DSD64 |
| Optical input | PCM up to 192 kHz/24-bit |
| USB connectors | Dual Type-C |
| Display | Custom HD LCD |
| SE power output 1 | L+R ≥ 1220 mW + 1220 mW (32 Ω, THD+N < 1%) |
| SE power output 2 | L+R ≥ 150 mW + 150 mW (300 Ω, THD+N < 1%) |
| Balanced power output 1 | L+R ≥ 2400 mW + 2400 mW (32 Ω, THD+N < 1%) |
| Balanced power output 2 | L+R ≥ 600 mW + 600 mW (300 Ω, THD+N < 1%) |
| Frequency response | 20 Hz–80 kHz (attenuation < 2.9 dB) |
| SNR | ≥ 116 dB (A-weighted) |
| Noise floor | PO < 5 µV; BAL < 8 µV (A-weighted, M gain) |
| Output impedance | PO < 0.7 Ω (32 Ω load); BAL < 1 Ω (32 Ω load) |
| THD+N | ~0.0173% (1 kHz / −6 dB @ 32 Ω) |
| Power input | AC 100–240 V, 50/60 Hz; DC 12 V / 2.5 A |
| Dimensions (W × D × H) | 210 × 188 × 42 mm |
| Weight | ~0.98 kg |
| Verified from | Manufacturer specifications provided |
📦 What’s in the Box
- 📦 FiiO K13 R2R unit
- 🔌 AC power adapter / DC 12 V supply
- 🔗 USB-C cable
- 📖 User manual & warranty
🔄 Compatibility
Works with Windows/macOS/Linux via USB-C (up to 384 kHz/32-bit, DSD256) and with digital sources (CD transports, streamers, TVs) via optical/coaxial. Drives a wide range of headphones from low-impedance dynamics to high-impedance studio cans via SE and balanced outputs.
