🧾 Overview / Summary

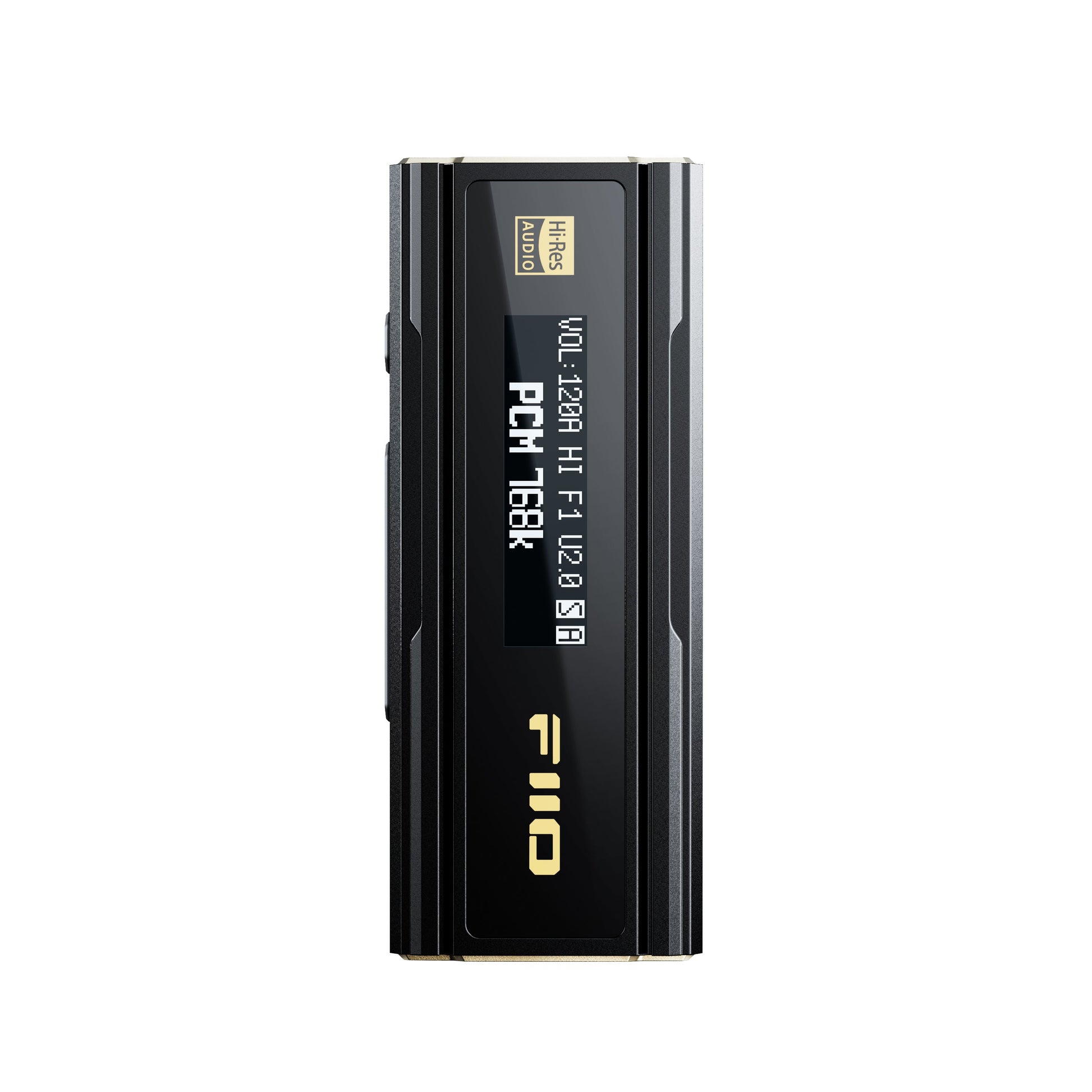

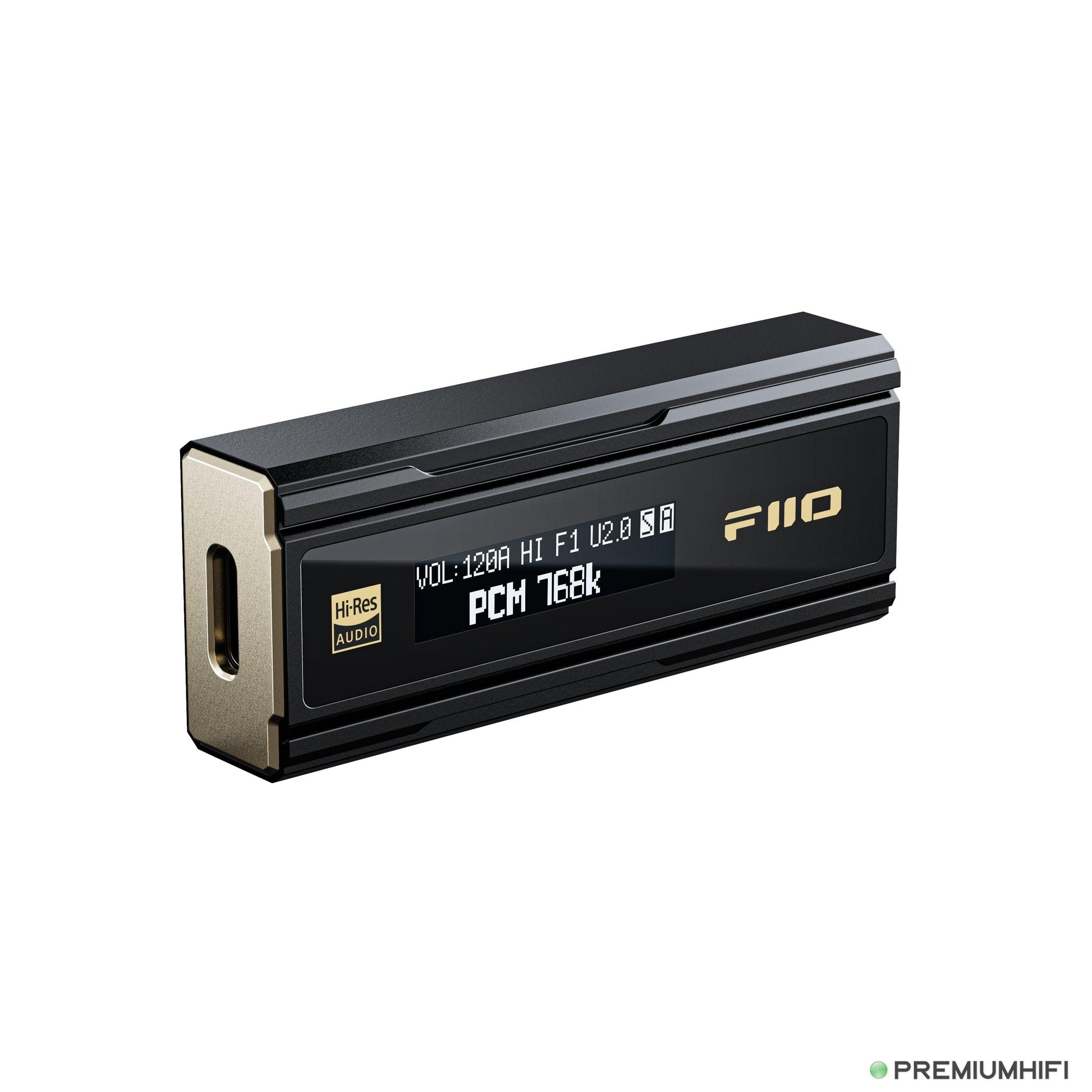

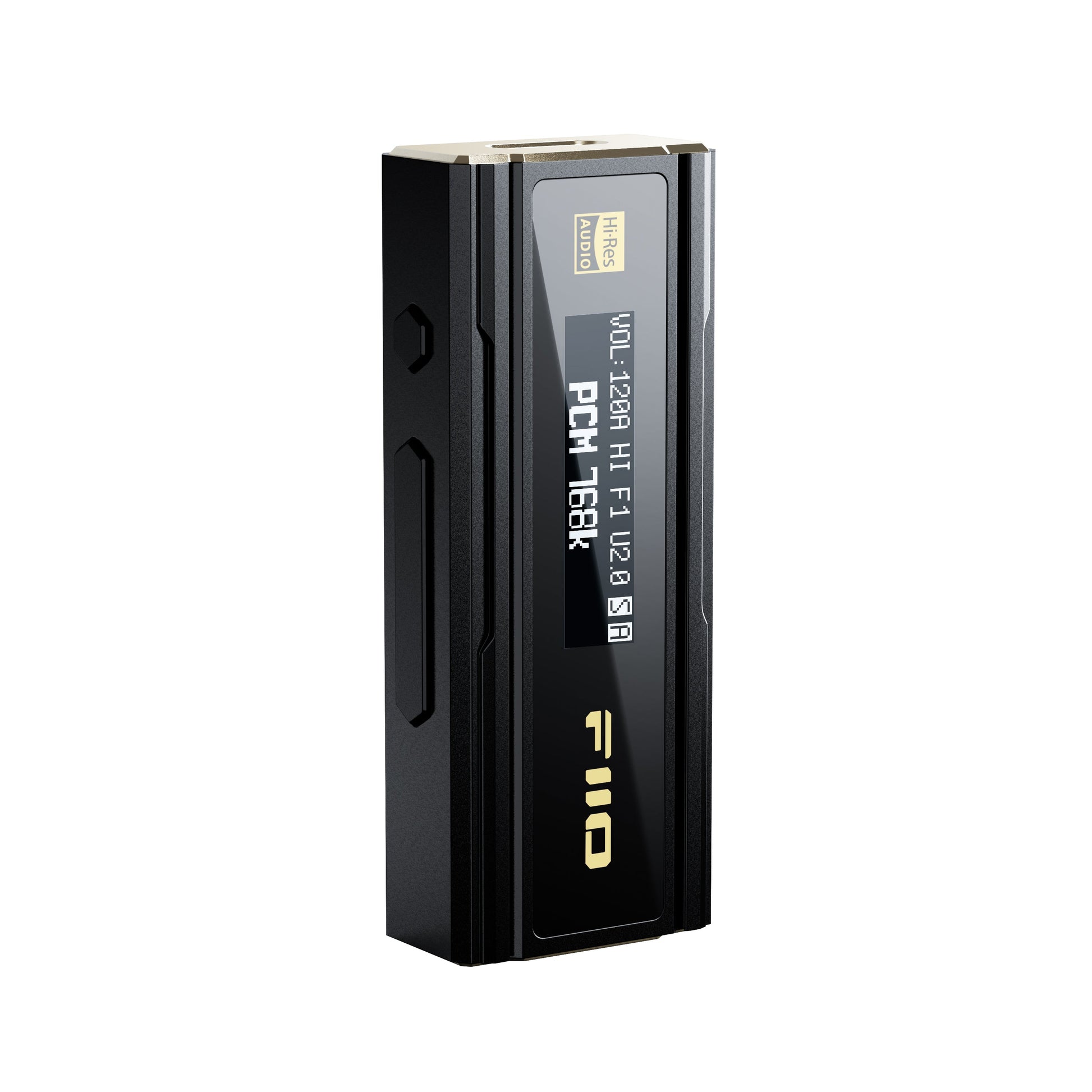

The FiiO KA5 is a high-performance portable USB DAC and headphone amplifier with flagship dual Cirrus Logic DACs, balanced and single-ended outputs, and an OLED screen.
It delivers robust, detailed, high-res audio in a compact, all-metal body — compatible with PCs, phones, consoles, and more.
✅ Key Features
✅ Dual CS43198 DACs for superior sound and efficiency
✅ Supports up to 32‑bit/768 kHz PCM and native DSD256 decoding
✅ Ultra‑low noise op amps and 6‑layer gold‑plated PCB

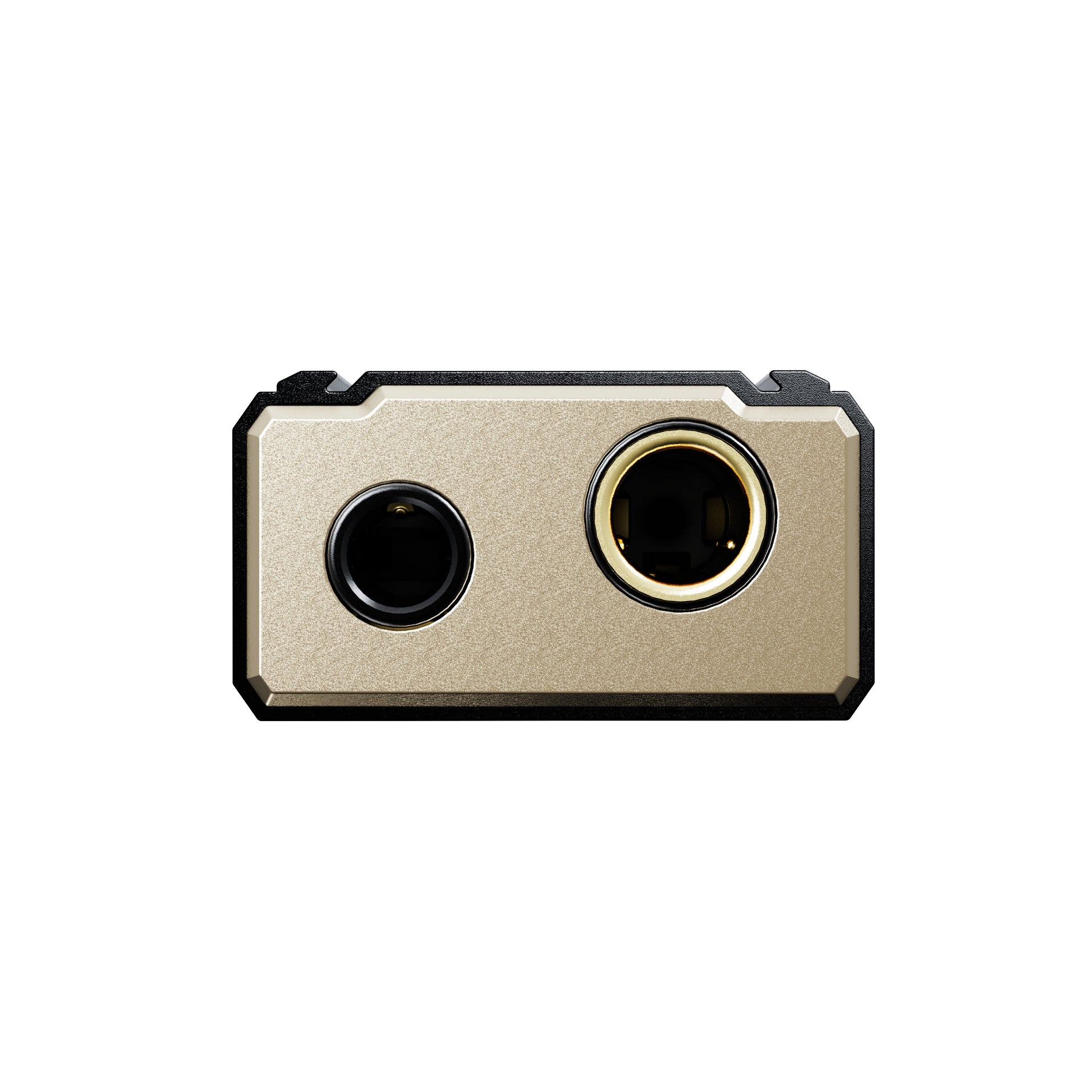

✅ 3.5 mm single‑ended + 4.4 mm balanced outputs, with SPDIF support
✅ OLED screen with intuitive menu navigation and multifunction button
✅ Supports UAC 1.0 for Switch, PS5, and other gaming devices
✅ High & low gain, selectable filters, L/R balance, screen flip
✅ FiiO Control app support for detailed configuration
📊 Technical Specifications
Parameter Value
DAC Dual Cirrus Logic CS43198
Decoding PCM up to 32‑bit/768 kHz, DSD256
Outputs 3.5 mm single‑ended, 4.4 mm balanced, SPDIF
Output power (single‑ended) ≥122 mW + 122 mW @ 32 Ω (THD+N < 1 %)
Output power (balanced) Higher (not explicitly specified)
SNR (single‑ended) ≥124 dB (32 Ω, A‑weighted)
SNR (balanced) ≥128 dB (32 Ω, A‑weighted)
Noise floor (single‑ended) < 1.6 μV (A‑weighted)
Noise floor (balanced) < 1.8 μV (A‑weighted)
Output impedance (single‑ended) < 0.3 Ω (32 Ω load)
Output impedance (balanced) < 0.35 Ω (32 Ω load)
THD+N (single‑ended) < 0.00037 % (1 kHz, 32 Ω)
THD+N (balanced) < 0.00037 % (1 kHz, −6 dB, 32 Ω)
Dimensions & weight Compact USB dongle; lightweight
📦 What’s in the Box
📦 FiiO KA5 USB DAC/AMP
🔌 Type‑C cable
🔌 Lightning OTG cable
📄 Quick start guide
🔄 Compatibility
✔ Works with Windows, macOS, Android, iOS (with OTG)
✔ Compatible with Switch, PS5, and other consoles via UAC 1.0
✔ Supports headphones and line‑level output (SPDIF via 3.5 mm)
✔ Controlled via onboard OLED & buttons or FiiO Control app
✔ Detachable cables — easily swap between Type‑C and Lightning
