🧾 Overview / Summary

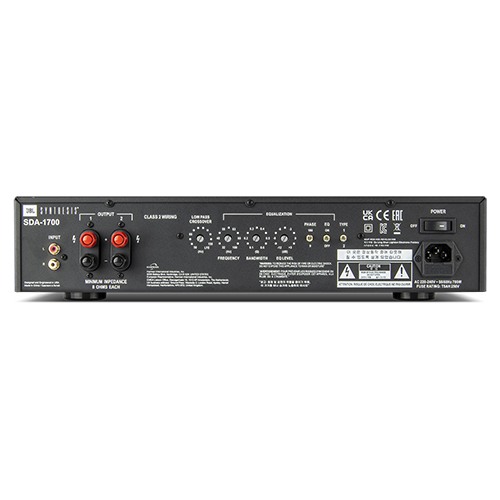

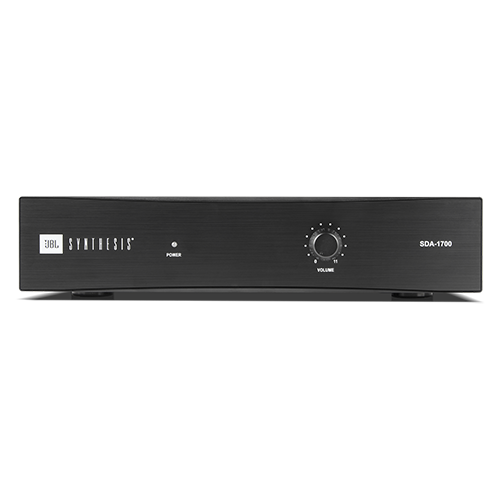

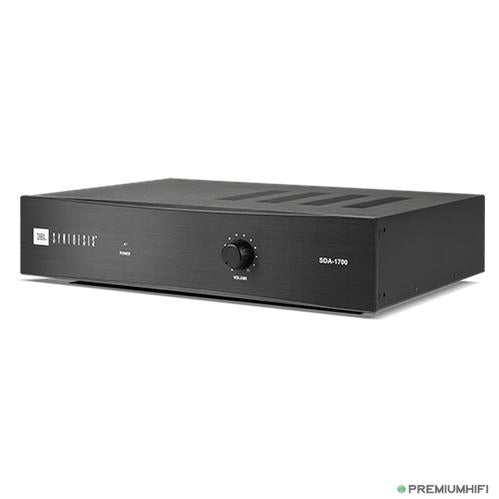

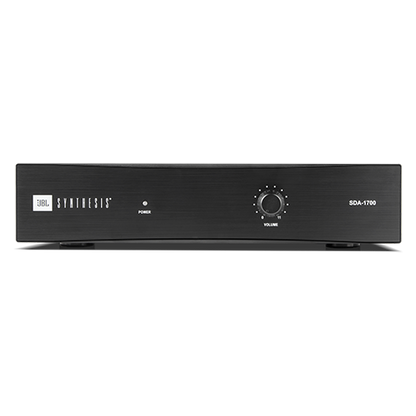

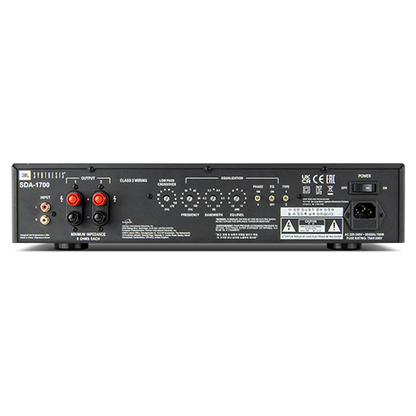

The JBL SDA 1700 is a high‑power Class D subwoofer amplifier delivering up to 700 W RMS and 1500 W peak output. Designed specifically for JBL SSW‑4 and C82W subwoofers, it provides model‑specific EQ, flexible low‑pass crossover, and reliable performance in a compact rack‑mountable form factor.
✅ Key Features
- ✅ 700 W RMS into 4 Ω, with 1500 W peak output
- ✅ Designed for JBL SSW‑4 and C82W with model‑specific EQ presets
- ✅ Class D topology for high efficiency and low heat
- ✅ Low‑pass crossover adjustable from 50–150 Hz
- ✅ Auto turn‑on with 10 mV input sensitivity
- ✅ Low distortion: THD+N < 0.3% @ 1 W, < 1% at full power
- ✅ Compact 2RU rack‑mount chassis with < 0.5 W standby consumption
📊 Technical Specifications
| Rated Output Power (RMS) | 700 W @ 4 Ω |
| Peak Power | 1500 W |
| Rated Impedance | 8 Ω per output |
| Minimum Load Impedance | 4 Ω |
| Model‑Specific EQ | JBL SSW‑4 / JBL C82W |
| Input Sensitivity (to 1 W @ 50 Hz) | 16.3 mVrms ± 1 dB (Gain = 41.7 dB) |
| Input Overload | ≥ 2.0 Vrms |
| Input Impedance | > 10 kΩ |
| Low‑Pass Crossover Range | 50–150 Hz |
| Auto Turn‑On Sensitivity @ 50 Hz | ~ 10 mV |
| THD+N @ 1 W | < 0.3% |
| THD+N @ Rated Power | < 1% |
| Signal‑to‑Noise Ratio @ 1 W | > 65 dBA |
| AC Mains Requirements | 100–120 VAC, 50–60 Hz, 700 W, 5 A 230 VAC, 50–60 Hz, 700 W, 3 A |
| Power Consumption (Standby) | 0.5 W |
| Dimensions (H × W × D) | 8.9 × 43.2 × 28 cm (3.50″ × 17″ × 11.04″) |
| Weight | 6.35 kg (14 lbs) |
📦 What’s in the Box
- 📦 JBL SDA 1700 Subwoofer Amplifier
- 🔌 Power cord
- 📖 User manual
- 🔩 Rack mounting hardware
🔄 Compatibility
✔ Optimized for JBL SSW‑4 and JBL C82W subwoofers
✔ Works with other passive subwoofers supporting 4–8 Ω
✔ Ideal for home theater and commercial subwoofer installations
