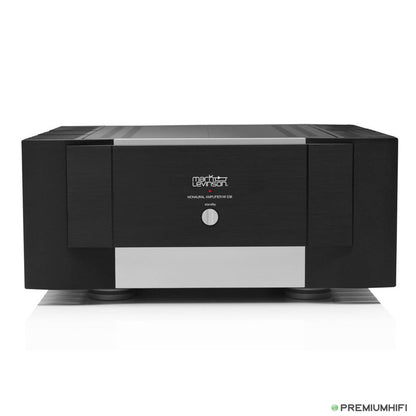

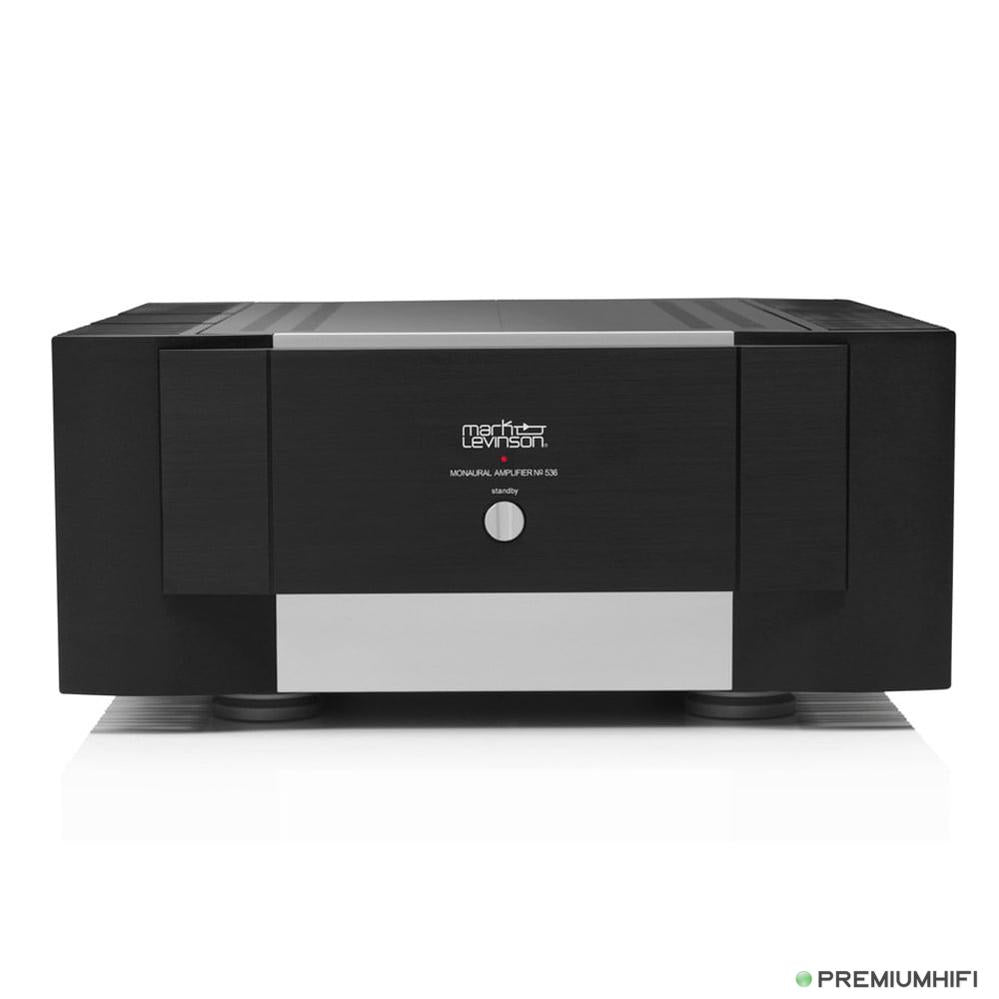

Mark Levinson No536 – Mono Power Amplifier

🧾 Overview

The Mark Levinson №536 is a reference monaural power amplifier delivering 400 W RMS into 8 Ω and 800 W into 4 Ω, with stability down to 2 Ω. Built around the brand’s Pure Path design philosophy, it combines fully discrete, fully balanced circuitry, high bias current, and mirror-image symmetrical topology for effortless power and sonic purity. Housed in precision-machined aluminum, it offers both power and finesse, driving the most demanding loudspeakers with ease.

✅ Key Features

✅ 400 W/8 Ω, 800 W/4 Ω output power, stable to 2 Ω loads

✅ Fully discrete, fully differential Class AB design, biased into Class A for most listening

✅ Pure Path architecture with low-feedback, high-linearity circuit design

✅ High-current power supply with 1,800 VA custom toroidal transformer and oversized capacitors

✅ Input stage with matched low-noise dual JFETs in double cascode configuration

✅ Premium component selection: tantalum nitride thin-film resistors, film capacitors, discrete Schottky rectifiers

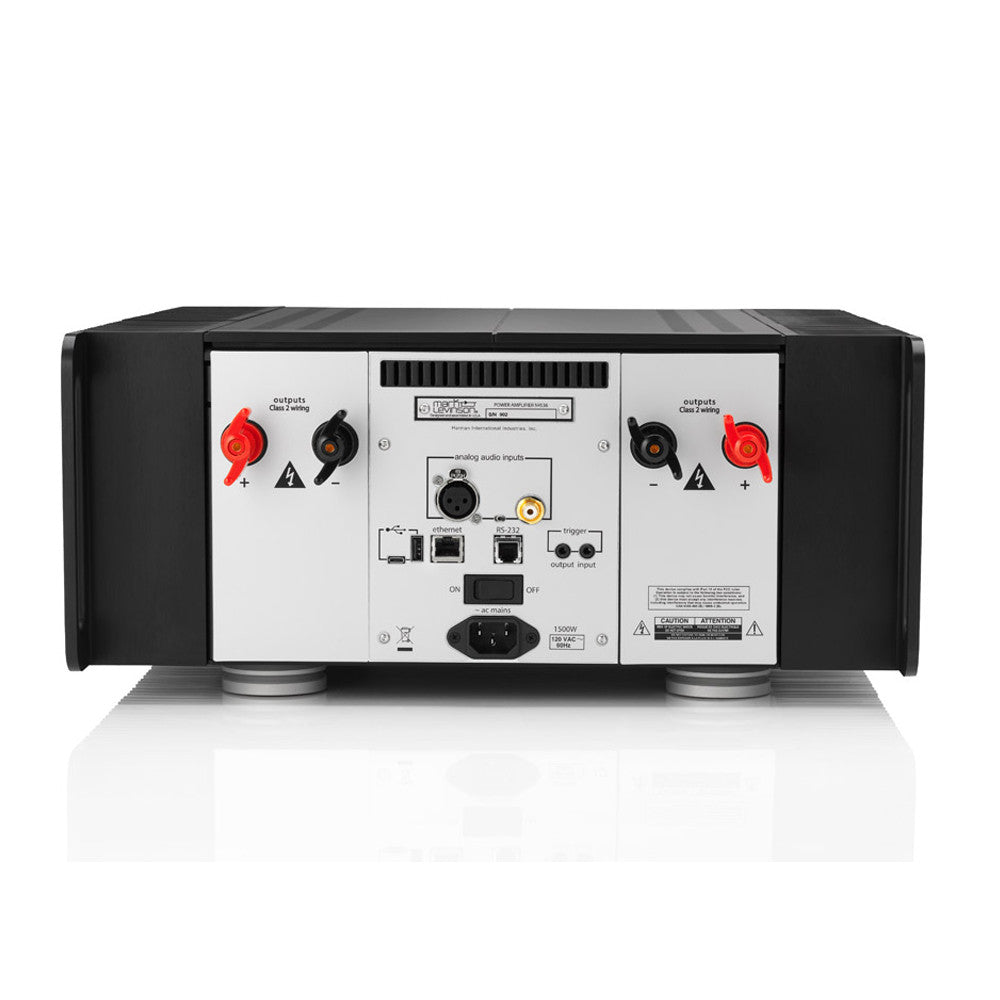

✅ Connectivity: balanced (XLR) and single-ended (RCA) inputs, Ethernet, RS-232, USB, IR, 12 V trigger I/O

✅ Precision-machined 6000-series aluminum chassis, handcrafted in the USA

📦 What’s in the Box

📦 Mark Levinson №536 Mono Power Amplifier

🔌 Power cable

📖 Owner’s Manual / Quick-Start Guide

🛠️ Accessory kit (control cables, as applicable)

🔄 Compatibility

✔ Drives virtually any loudspeaker, including demanding 2 Ω designs. Pairs with reference preamplifiers, DACs, and control systems via balanced or unbalanced inputs. Integration-ready with Ethernet, RS-232, IR, and 12 V trigger support.

📦✈️ Shipping & Returns

📦 Insured EU-wide delivery

🔄 14-day return policy

🛡️ 2-year EU warranty
