🧾 Overview

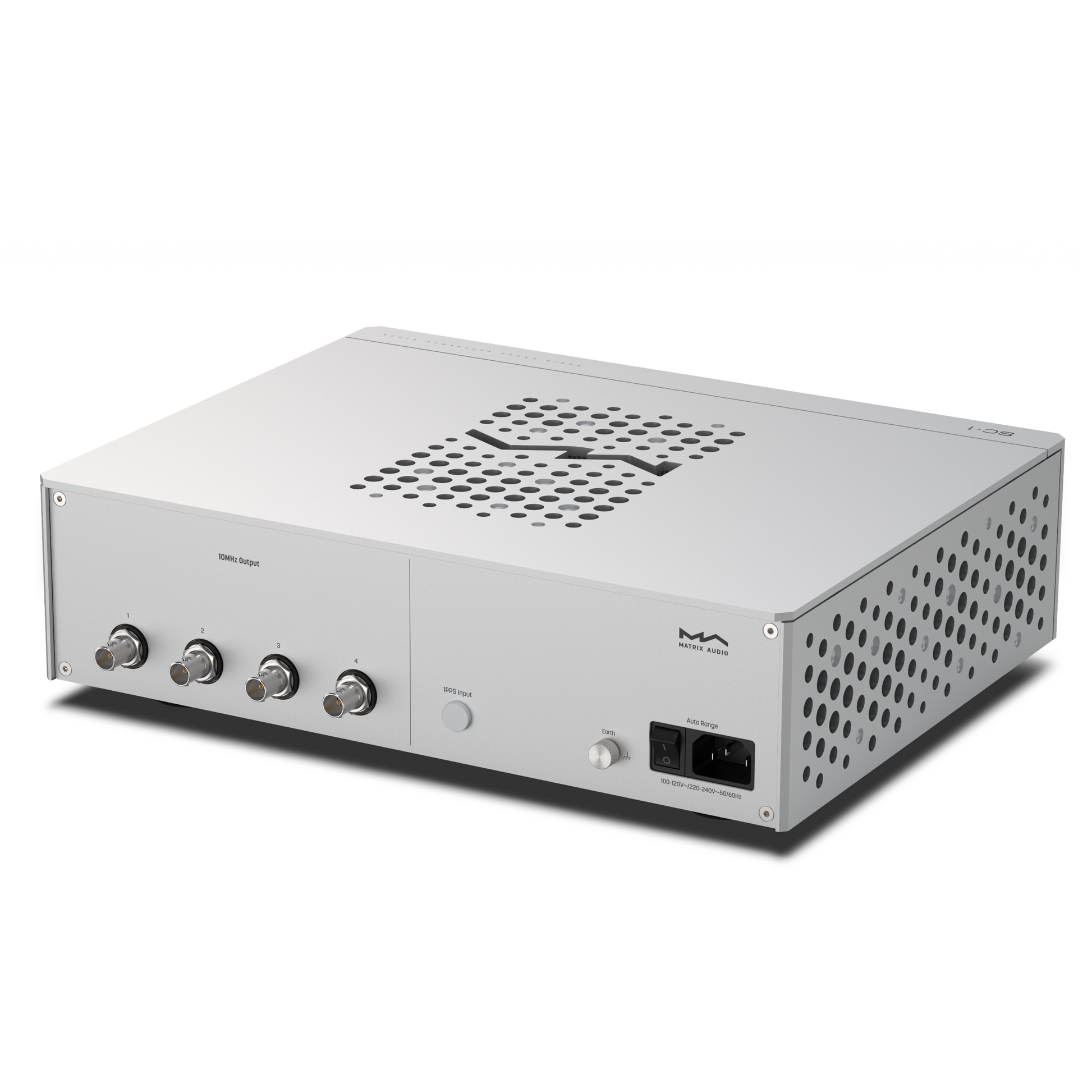

The Matrix Audio SC-1 is a 10 MHz audio-grade reference clock built to improve timing precision in compatible digital systems. It provides four synchronized, independently buffered BNC clock outputs and offers sine or square waveform options for device matching.
✅ Key Features
- ✅ 10.000 MHz ultra-low phase noise OCXO clock generator
- ✅ 4 × BNC clock outputs with independent driver buffers (synchronized source)
- ✅ Output waveform option: sine wave or square wave (factory set)
- ✅ Ultra-low phase noise specified at ≤ -118 dBc/Hz @ 1 Hz (measured at output)
- ✅ 1PPS reference input for automatic calibration against an external reference
- ✅ Automatic linear power supply with auto voltage detection
- ✅ Warm-up status indicator for operational readiness
📊 Technical Specifications ▼
| Parameter | Value |
|---|---|
| Device type | 10 MHz reference clock generator |
| Clock frequency | 10.000 MHz |
| Outputs | 4 × BNC independent driver buffers (50Ω) |
| Output level | 0.5 Vrms (sine) / 1 Vrms (square) |
| Phase noise (at output) | 1 Hz: ≤ -118 dBc/Hz; 10 Hz: ≤ -140 dBc/Hz; 100 Hz: ≤ -150 dBc/Hz |
| Jitter | 20 fs @ 1–100 Hz (measured at output) |
| Power | AC 100–120V or 220–240V (auto adaptive), < 20 W max |
| Dimensions (W×D×H) | 330 × 267 × 97 mm |
| Weight | 4.4 kg |
📦 What’s in the Box
- 📦 Matrix Audio SC-1
- 🔌 Power cable
- 📖 Printed material
🔄 Compatibility
Compatible with devices that accept a 10 MHz external reference clock input (50Ω) via BNC. Ideal for high-end digital transports, DACs, and network components that support reference clock synchronization.
📦✈️ Shipping & Returns
📦 Insured worldwide delivery
🔄 14-day return policy
🛡️ 2-year EU warranty
📝 Reviews
- “Tightens the sound and soundstage.” — PursuitPerfectSystem
- “Ultra-low phase noise… setting a new industry-leading standard.” — Matrix Audio (manufacturer technical highlight)
- “Very high quality 10 MHz reference clock… multiple synchronized outputs.” — dealer overview (Summit Hi-Fi)
⚠️ Warning
⚠️ Warning: Installing the SC-1 may cause sudden intolerance to jitter, compulsive re-listening to old albums, and the urge to explain phase noise to friends at dinner.
