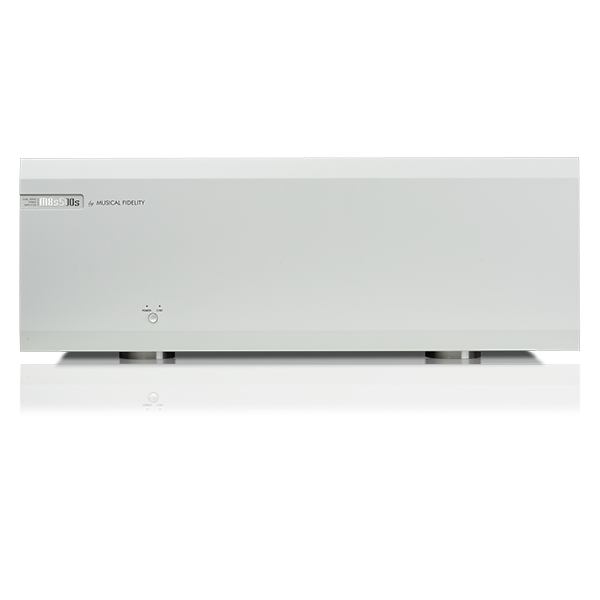

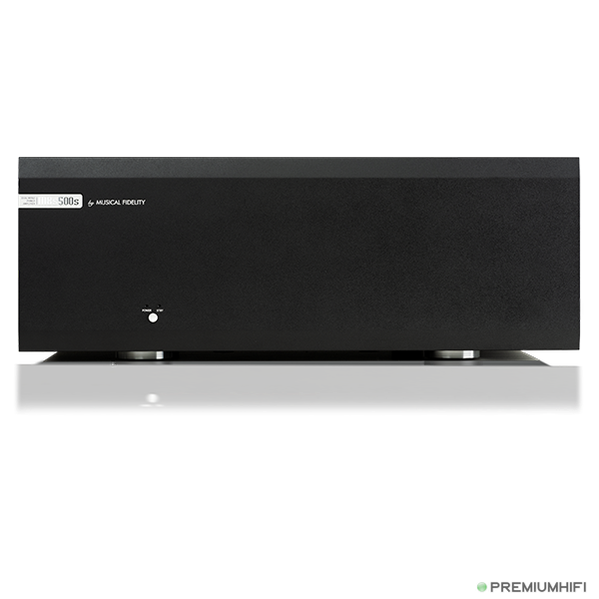

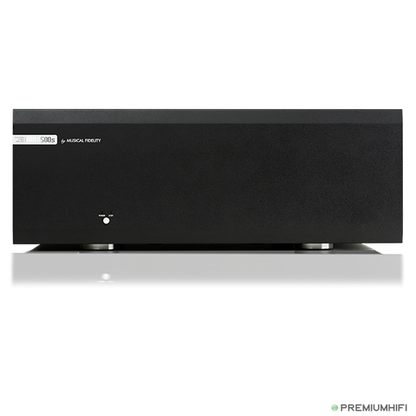

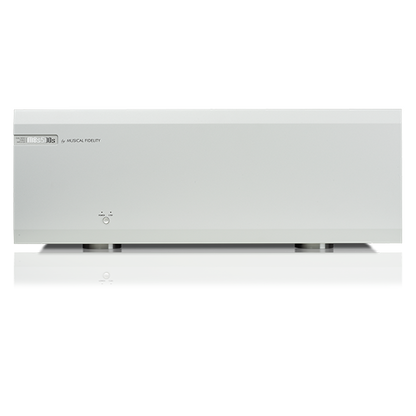

Musical Fidelity M8S-500S Stereo Power Amplifier
Musical Fidelity M8S-500S Stereo Power Amplifier
🚚 Delivery in 1-4 days in the Baltics. 2-8 days EU
💰 14 days return
🔒 Secure payment: PayPal, 💳card, invoice
🛡️Shipping insurance
🟢 2 years warranty
🧱 Installation service
💲Seen a better price? Let us know and we'll match it.
Couldn't load pickup availability
In stock
Shipping Terms
Shipping Terms
- Shipping method: Standard
Shipment cost: - EU 25€
- LT, EST 6€
- LV 3€
- RU, USA 200€
- Other countries 200€
- Dispatched usually 2 - 5 business days after order placement
- Some times, dispatched up to 20 business days, we will inform additional, after order placement.
🟠 Taxes 🟠
🟠 Taxes 🟠
Prices include VAT for EU countries. For non-EU countries, prices are shown without tax. Additional customs duties may apply. Please check with your local customs office for details.
🧾 Overview
The Musical Fidelity M8s 500s is a fully balanced dual mono power amplifier delivering 500 W per channel into 8 Ω. Based on the legendary Titan design, it provides immense dynamics, ultra-low distortion, and exceptional drive capability. With massive power reserves and refined circuit design, it easily handles the most demanding loudspeakers while delivering pure, detailed sound.
✅ Key Features
- ✅ 500 W per channel into 8 Ω (dual mono, bridged)
- ✅ Fully balanced design with XLR and RCA inputs
- ✅ Massive power supplies for transient control and dynamics
- ✅ Ultra-low distortion: <0.007% (20 Hz–20 kHz)
- ✅ Exceptional SNR: >120 dB (A-weighted)
- ✅ High current delivery with 200 A peak-to-peak output
- ✅ Loop outputs (XLR & RCA) for bi-amping
- ✅ 12 V trigger input/output for system integration
📊 Technical Specifications ▼
| Parameter | Value |
|---|---|
| Power Output | 500 W per channel into 8 Ω (27 dBW) |
| Voltage | 63.4 V RMS (20 Hz–20 kHz, onset of clipping) |
| Current (peak-to-peak) | 200 A |
| Damping Factor | >330 |
| Output Devices | 6 pairs per channel |
| THD+N | <0.007% (20 Hz–20 kHz) |
| Signal-to-Noise Ratio | >120 dB (A-weighted) |
| Input Impedance | 50 kΩ |
| Frequency Response | +0 / –1 dB (10 Hz–80 kHz) |

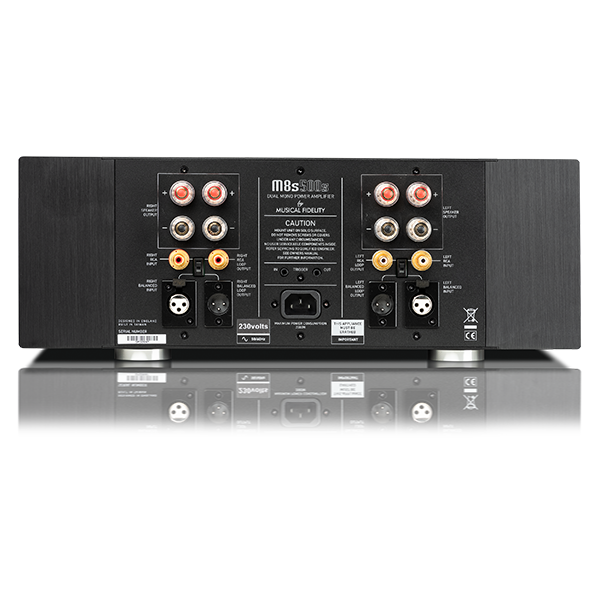

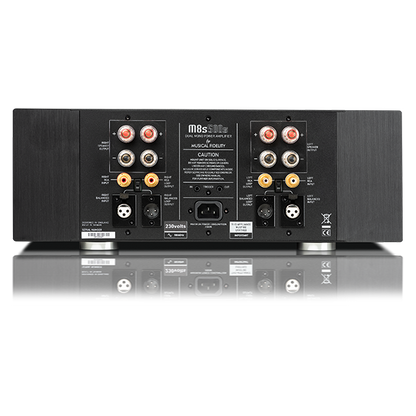

| Inputs | 1× XLR (balanced), 1× RCA (unbalanced) |
| Loop Outputs | 1× XLR, 1× RCA |
| Speaker Outputs | 2 sets per channel (4 mm binding posts) |
| Trigger | In: ±4.5–15 V DC (3.5 mm) / Out: +12 V DC |
| Power Consumption | 52 W (standby), 150 W (idle), 2000 W (max) |
| Dimensions (W×H×D) | 440 × 160 × 460 mm |
| Weight | 29 kg (unit), 34.5 kg (shipping) |
📦 What’s in the Box
- 📦 Musical Fidelity M8s 500s Power Amplifier
- 🔌 IEC mains cable (10 A type)
- 📖 User manual
🔄 Compatibility
✔ Works with any high-end preamplifier via RCA or XLR inputs. ✔ Drives virtually all loudspeaker types, including demanding low-impedance designs. ✔ Supports bi-amping and system integration with 12 V trigger control.
📦✈️ Shipping & Returns
- 📦 Insured worldwide delivery
- 🔄 14-day return policy
- 🛡️ 2-year EU warranty
📝 Reviews
- ⭐ Hi-Fi News: “The M8s 500s offers enormous power with delicacy and detail – a true high-end bargain.”
- ⭐ What Hi-Fi: “Musical Fidelity combines brute force with refinement, producing an amp that handles any speaker effortlessly.”
- ⭐ Audiophile Style: “Dynamic, transparent and powerful – the M8s 500s is among the best in its class.”
