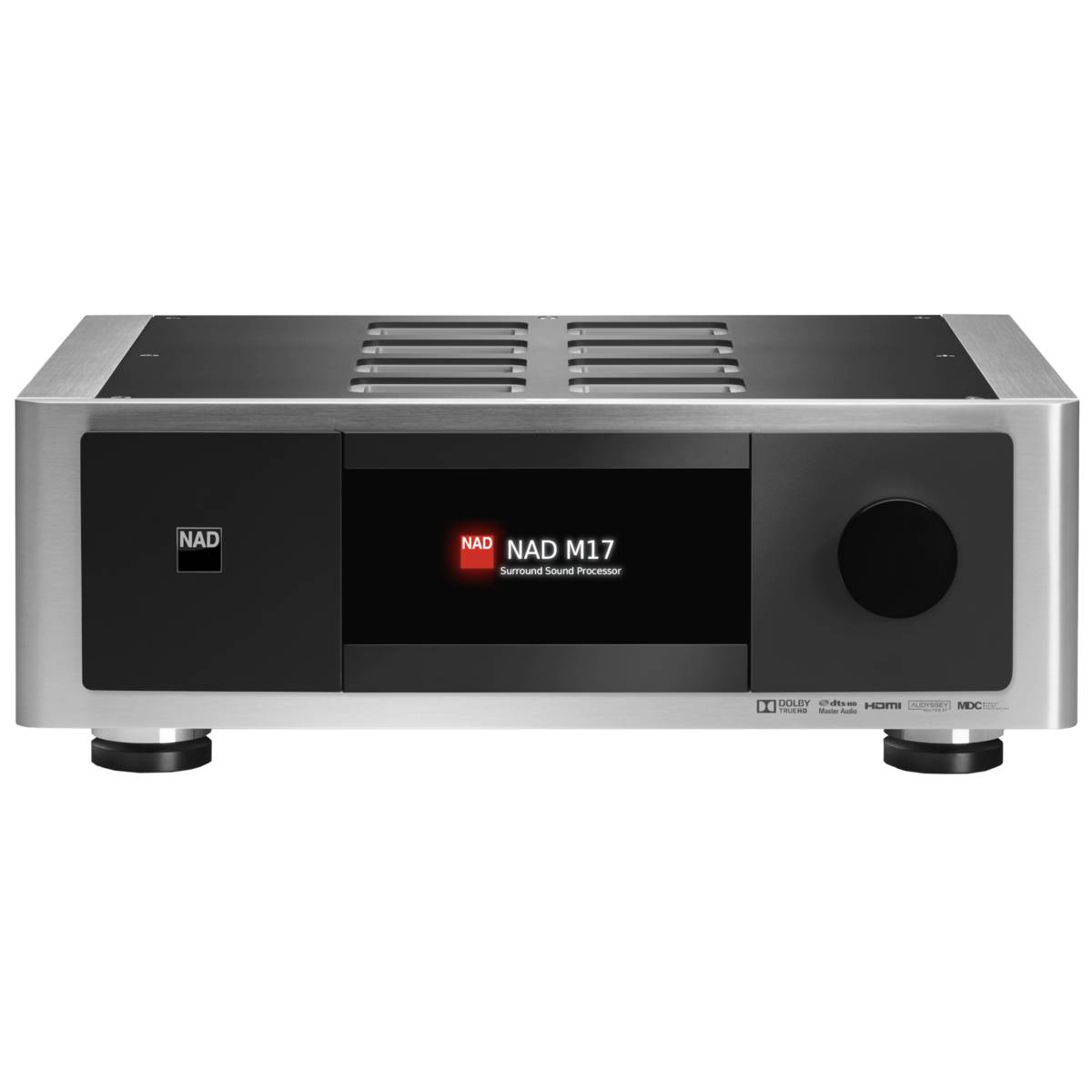

NAD M17 V2 home theater system, integrated amplifier, Streaming amplifier
CONNECTIONS
LINE INPUT/PRE OUT
- HDMI
- Up to 4K UHD
- Coaxial
- 0.5 Vpp
- Ethernet
- RJ45 10/100/1000 Ethernet
LINE LEVEL INPUT
- Input Impedance (R and C)
- 56kΩ + 220pF
- Input Sensitivity
- 40mV (ref. 500mV out)
- Maximum Input Signal
- >8Vrms
- Signal/Noise Ratio, A-weighted
- >90dB (ref. 500mV in, 500mV out, volume set to unity gain)
- >80dB (ref. 2V out, volume maximum)
- Channel Separation
- >70dB (ref. 1kHz / 10kHz)
- Frequency Response
- ±0.3dB (ref. 20Hz – 20kHz, Tone Active)
- ±0.3dB (ref. 20Hz – 20kHz, Tone Defeat)
- Frequency Response (subwoofer out)
- 10 – 200Hz (ref. -3dB)
OUTPUT
XLR
- Maximum output level
- >8 Vrms into 600 Ω
- THD (CCIF IMD, DIM 100)
- <0.005% (ref. 20 Hz – 20 kHz, 2 V out)
- Output impedance
- <100Ω
RCA
- Maximum output level
- >4 Vrms into 600 Ω
- THD (CCIF IMD, DIM 100)
- <0.005% (ref. 20 Hz – 20 kHz, 2 V out)
- Output impedance
- <100Ω
Tone Controls
- Treble
- ±10dB at 10kHz (ref. 2V in, 2V out)
- Bass
- ±10dB at 100kHz (ref. 2V in, 2V out)
GENERAL
- Standby power
- <0.5W
- Unit Dimension (WxHxD) – Gross*
- 435 x 156 x 386mm
- 17 1/8 x 6 3/16 x 15 1/4 inches**
- Net Weight
- 10.9kg (24lb)
- Shipping Weight
- 17.5kg (38.6lb)
