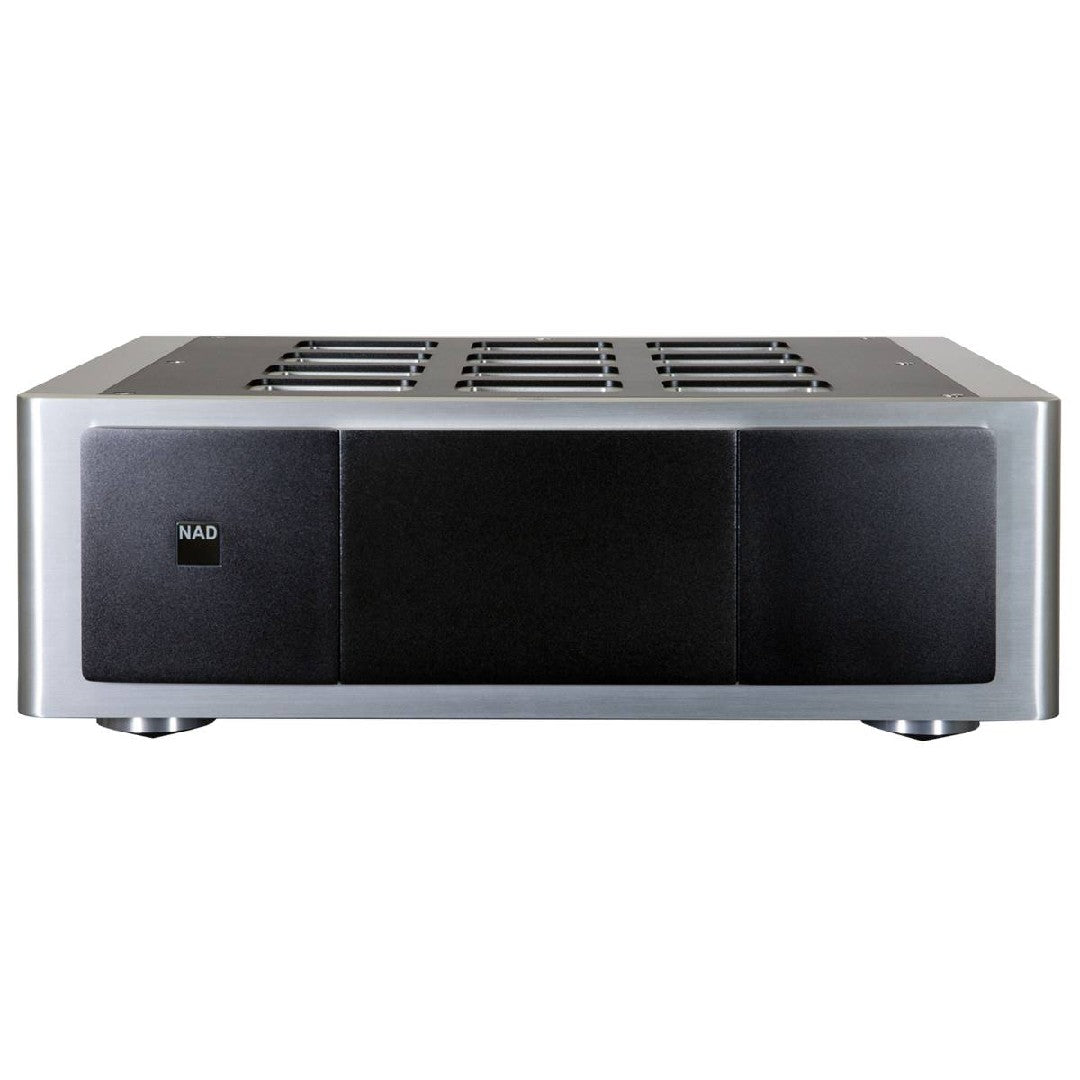

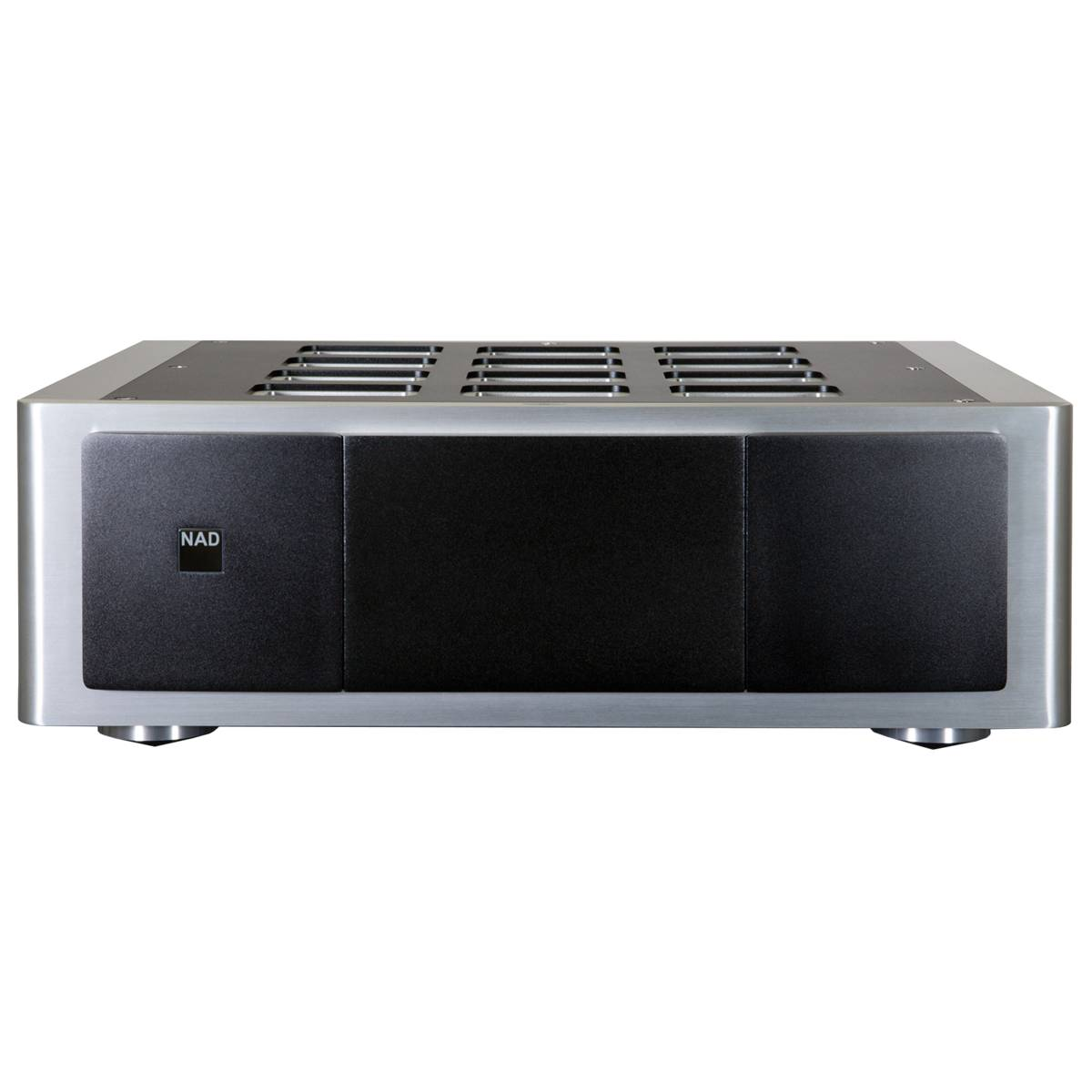

Nad M28 7 channel power amp

Nad M28 7 channel power amp

Regular price €6.799,00 EUR
Regular price Sale price €6.799,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Premium HIFI contacts

+37129541259

arkadijs.zenins@outlook.com

Shipping Terms

  • Shipping method: Standard
    Shipment cost:
  • EU 20€
  • LT, EST 5€
  • LV 2€
  • RU, USA 200€
  • Other countries 100

https://premiumhifi.lv/policies/shipping-policy

OVERALL SPECIFICATIONS

  • FTC power, two channels
  • ≥ 220 W (ref. rated THD, 8 Ohms , 20 Hz – 20 kHz, two channels driven)
    ≥ 400 W (ref. rated THD, 4 Ohms , 20 Hz – 20 kHz, two channels driven)
  • Rated power, all channels
  • ≥ 200 W (ref. rated THD, 8 Ohms , 20 Hz – 20 kHz, all channels driven)
    ≥ 340 W (ref. rated THD, 4 Ohms , 20 Hz – 20 kHz, all channels driven)
  • Rated THD (250 mW to rated power, CCIF IMD, DIM 100)
  • ≤0.003 % (ref. 20 Hz – 20 kHz)
  • IHF dynamic power
  • 280 W 8 Ohms, (all channels driven)
    560 W 4 Ohms, (one channel driven)
  • Damping factor
  • 1.3 V (ref. rated power)
  • Input impedance
    Input Impedance (r and c)
  • 47 kΩ (Balanced)
    23 kΩ (Single-ended)
  • >118dB (ref. rated power)
  • Damping Factor
  • >750dB (ref. 8 Ohms, 50Hz and 1kHz)
  • Frequency Response
  • ±0.1dB (ref. 20Hz-20kHz)
  • -2.5dB at 3Hz and 100kHz
  • Input Impedance
  • 47 kilohm (Balanced)
  • Signal/noise ratio
  • > 102dB (A-weighted ref. 1W, Balanced)
    > 97 dB (A-weighted ref. 1W, Single-ended)
    > 124 dB (A-weighted ref. rated power, Balanced)
    > 120 dB (A-weighted ref. rated power, Single-ended)
  • Frequency response
  • ± 0.1 dB (ref. 20 Hz – 20 kHz)
    – 3 dB at 3 Hz to 60 kHz
  • Time to go to Standby mode at no input signal
  • ≤ 30 minutes
  • Standby power
  • ≤ 0.5W

DIMENSIONS AND WEIGHT

  • Gross dimensions WxHxD
  • 435 x 156 x 380 mm (17 3/16 x 6 3/16 x 15”)
  • Shipping Weight
  • 21.2 kg (46.7 lbs)
