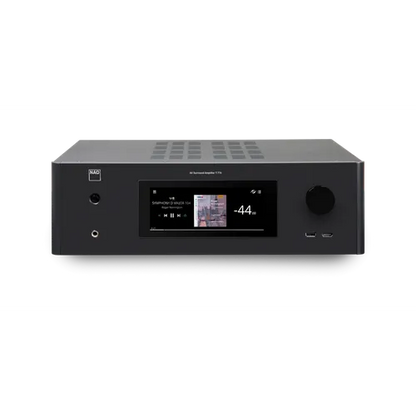

Nad T778

• FTC
• 8 Ohms
• 140W (21.5dBW)
• 4 Ohms
• 170W (22.3dBW)
• Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion)
• 9 x 85W
• IHF Dynamic Power
• 8 Ohms
• 165W (22.2dBW)
• 4 Ohms
• 280W (24.5dBW)
• Total harmonic distortion at rated power
• <0.08%
• IM distortion at 1/3 rated power
• <0.03%
• Damping factor
• >300 (20Hz-1kHz, 8 ohms)
• Input sensitivity and impedance
• 1.12Vrms (ref. 8 Ohms, VOL at 0dB)
• Frequency response
• +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
• Signal/noise ratio
• >100dB (ref. rated power at 8 Ohms, A-Weighted)
• Signal/noise ratio
• >85dB (ref. 1W at 8 Ohms, A-Weighted)

• LINE INPUT
• Frequency response
• ±0.3dB (ref. 20Hz – 20kHz)
• Signal-to-noise ratio
• >100dB (ref. 2V, A-Weighted)
• Total harmonic distortion
• <0.01%
• Input sensitivity
• 245mVrms (ref. 2V)
• Maximum output level
• >4.5Vrms
• PHONO INPUT
• Input Sensitivity
• 6.2mVrms (ref. 2V)(ref. 20Hz – 20kHz)
• Signal-to-noise ratio
• >80dB (ref. 2V, A-Weighted)
• Maximum Input Level
• >90mVrms (1kHz)

• Standby power
• <0.5W (full standby)
• <8W (network standby)

• Unit Dimensions (W x H x D)
• 435 x 140 x 430mm (Gross)*
•
• 17 3/16 x 5 9/16 x 16 15/16″**
• Net Weight
• 12.1kg (26.7lb)
• Shipping Weight
• 15.5kg (34.2lb)

^{*Gross dimensions include feet, extended buttons and rear panel terminals.}

^{**Non-metric measurements are approximate.}
