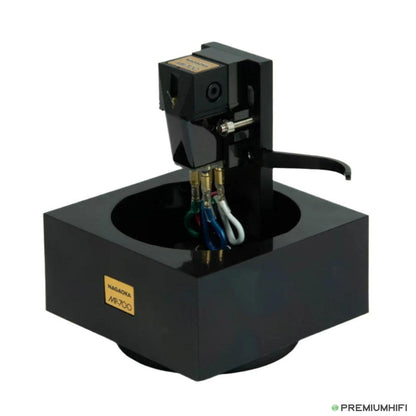

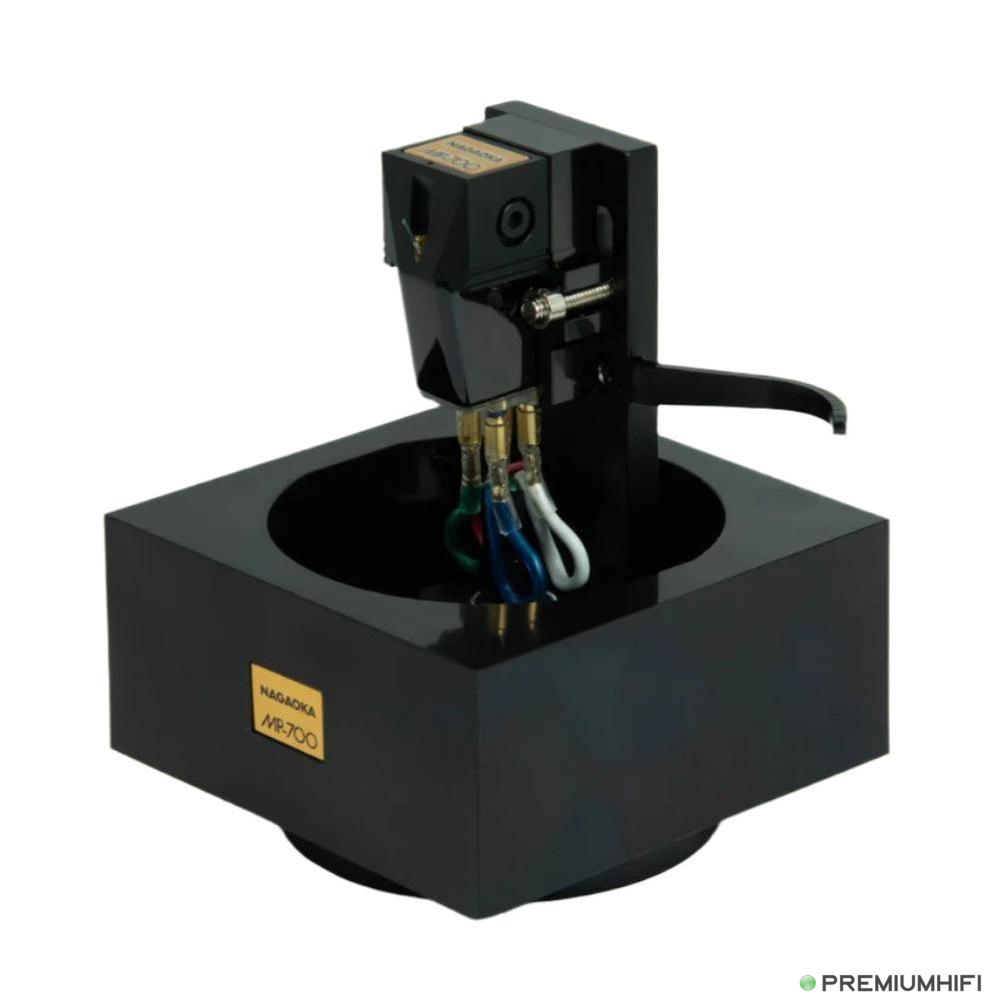

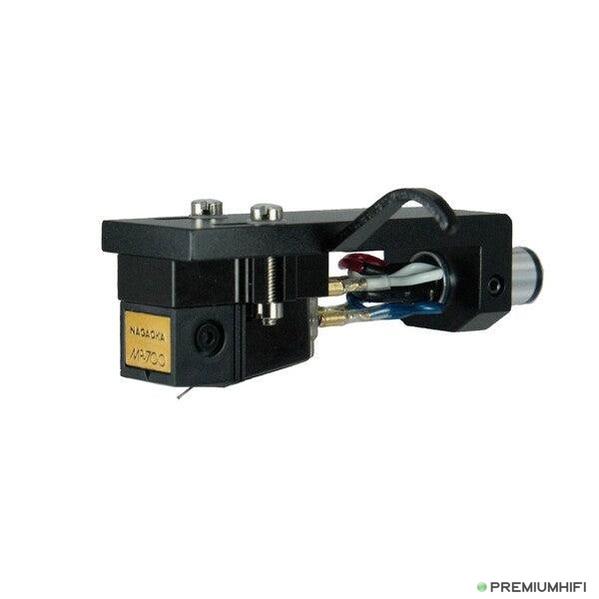

Nagaoka MP-700H Phono Cartridge & Headshell
Nagaoka MP-700H Phono Cartridge & Headshell
🚚 Delivery in 1-4 days in the Baltics. 2-8 days EU
💰 14 days return
🔒 Secure payment: PayPal, 💳card, invoice
🛡️Shipping insurance
🟢 2 years warranty
🧱 Installation service
💲Seen a better price? Let us know and we'll match it.
Couldn't load pickup availability
Low stock: 3 left
Shipping Terms
Shipping Terms
- Shipping method: Standard
Shipment cost: - EU 25€
- LT, EST 6€
- LV 3€
- RU, USA 200€
- Other countries 200€
- Dispatched usually 2 - 5 business days after order placement
- Some times, dispatched up to 20 business days, we will inform additional, after order placement.
🧾 Overview / Summary
The Nagaoka MP-700H is the ultimate cartridge + headshell combo for vinyl lovers chasing uncompromising clarity. With a MicroRidge stylus and pre-aligned permalloy-core design, it's a plug-in solution for studio-grade listening.
Key Features
- ✅ MicroRidge diamond stylus (5 × 18 μm)
- ✅ 10 mV output for strong signal transmission
- ✅ 20 Hz – 27 kHz full-spectrum playback
- ✅ 30 dB channel separation
- ✅ 20 Ω permalloy coil impedance
- ✅ Headshell with finger lift, anti-resonant body
- ✅ Pre-mounted and ready to install
Technical Specifications
| Stylus Type | MicroRidge diamond (5 × 18 μm) |
| Output Voltage | 10 mV @ 1 kHz (5 cm/s) |
| Frequency Response | 20 Hz – 27 kHz (±3 dB) |
| Tracking Force | 1.4 |
| Channel Separation | 30 dB @ 1 kHz |
| Impedance | 20 Ω coil |
| Recommended Load | 47 kΩ // 100 pF |
| Headshell | Anti-resonant aluminum with quick-release finger lift |
What’s in the Box
- Nagaoka MP-700 cartridge (pre-mounted)
- Aluminum headshell
- Mounting kit
- Quick start guide
Compatibility
Universal 1/2” mount. Compatible with MM phono stages and tonearms with standard headshell sockets.
Shipping & Returns
📦 Insured worldwide delivery
🔄 14-day return policy
🛡️ 2-year EU warranty
