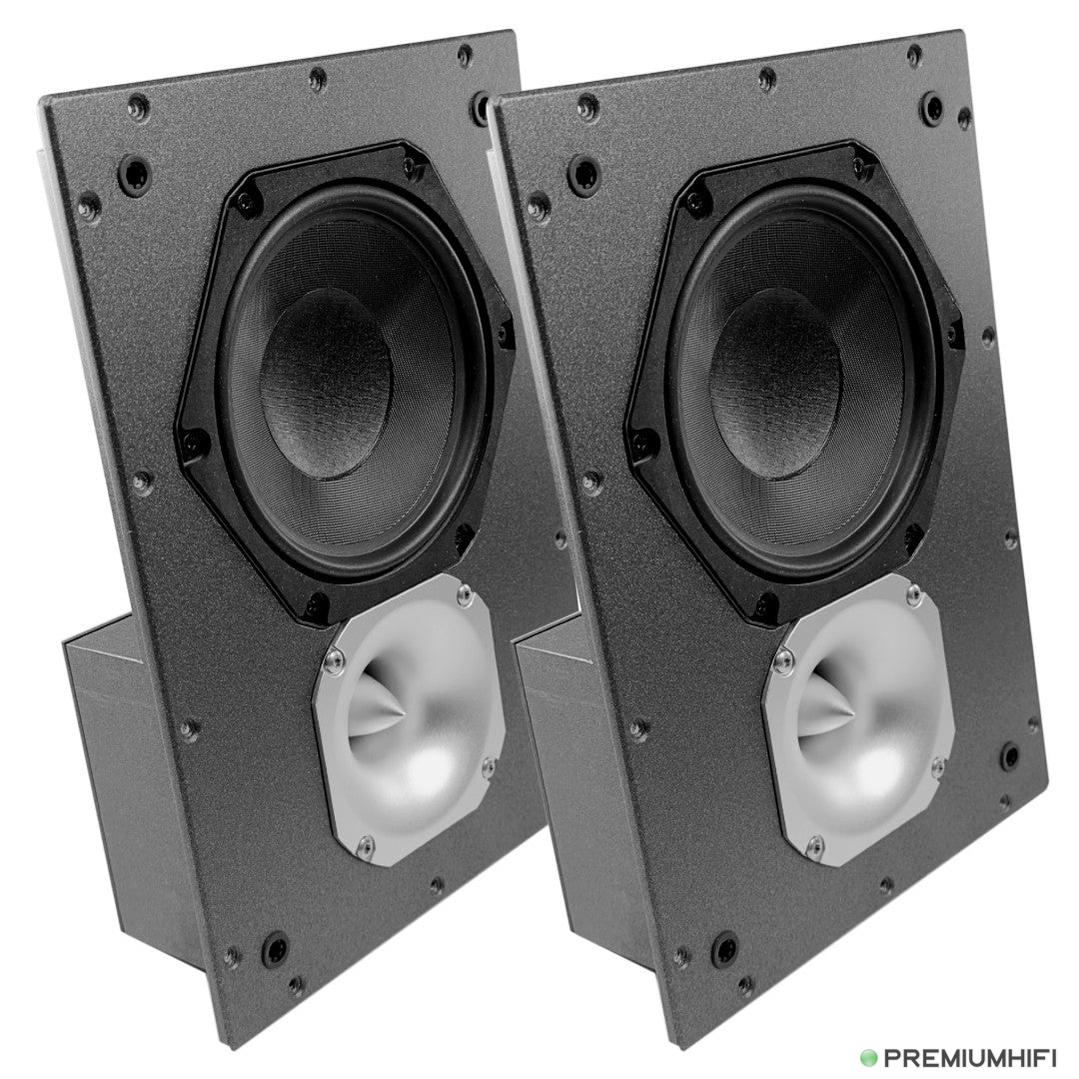

Reflector Audio Stage Pair Phase linear sound panel

🧾 Overview

The Reflector Audio Stage Pair are phase-linear sound panels designed for audiophiles seeking detailed, spacious sound on a modest budget. These 8-ohm speakers deliver natural tonality and a wide three-dimensional soundstage, suitable for custom installations in enclosures or built into walls and ceilings.

Each panel is engineered to reproduce frequencies from 40 Hz to 25 kHz with remarkable precision and clarity, making them ideal for both stereo and multi-channel setups.

✅ Key Features

• ✅ Phase-linear design for realistic spatial imaging
• ✅ 8 Ω nominal impedance for universal amplifier compatibility
• ✅ 50 W RMS power handling for clear and balanced output

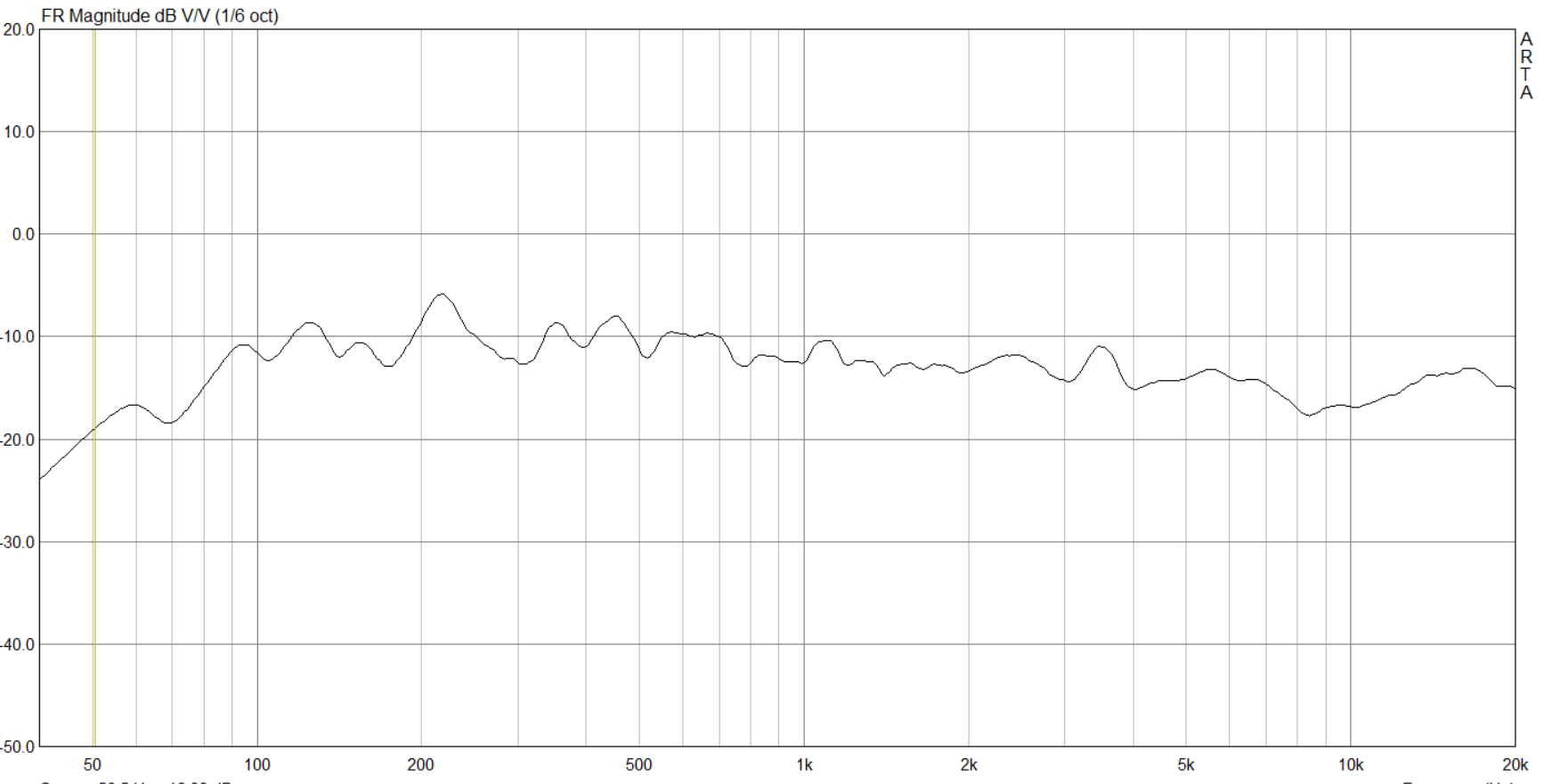

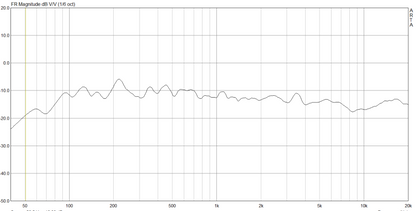

• ✅ Frequency response: 40 Hz – 25,000 Hz (measured in regular room)
• ✅ Sensitivity: 89 dB (1W/1m)
• ✅ Works optimally in 15–30 L enclosures
• ✅ Recommended bass reflex port: Ø 70 mm × 200 mm length
• ✅ Recommended outer box (H×W×D): approx. 39 × 28 × 35 cm
• ✅ Mundorf components in crossover
• ✅ Suitable for wall and ceiling installation or DIY projects

📦 What’s in the Box

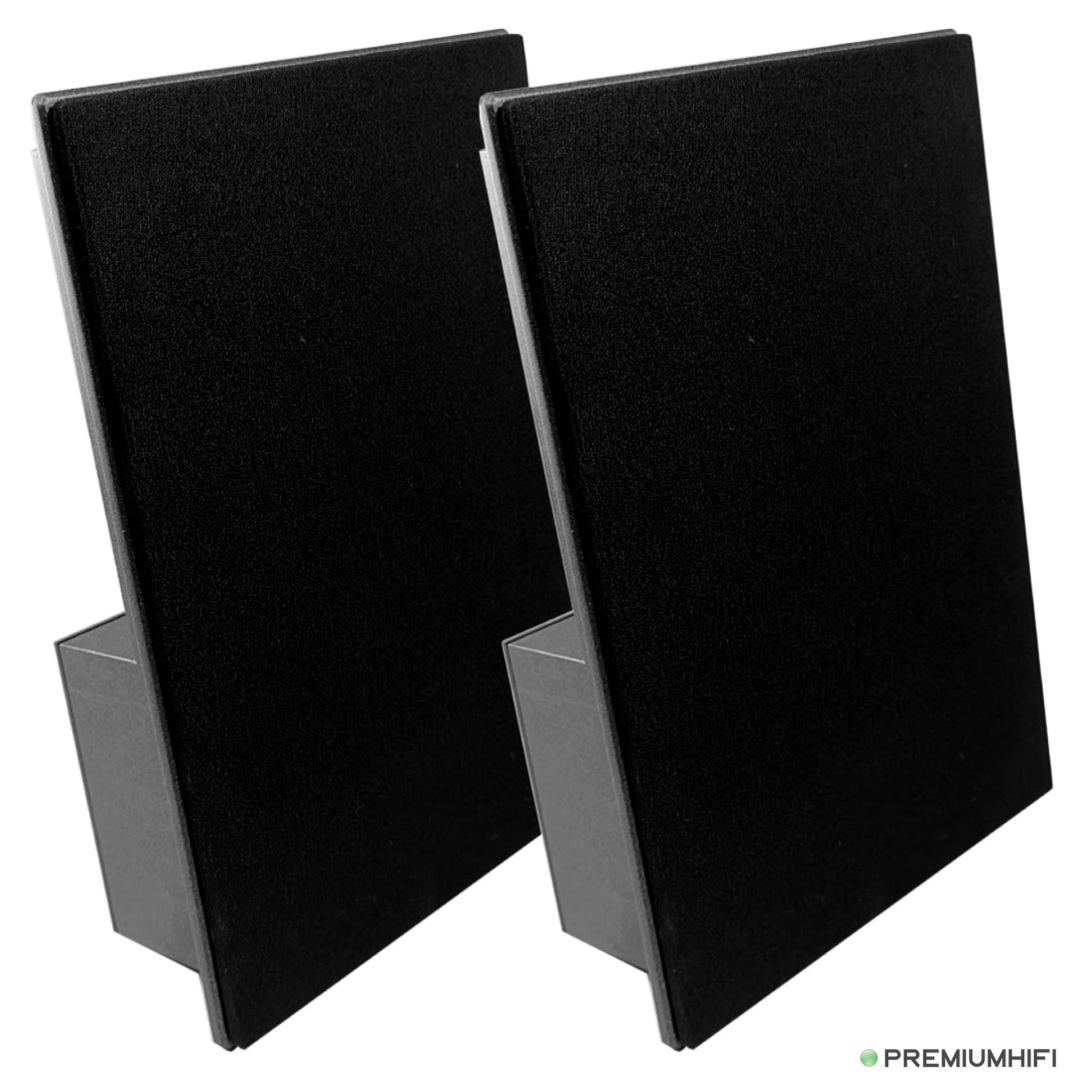

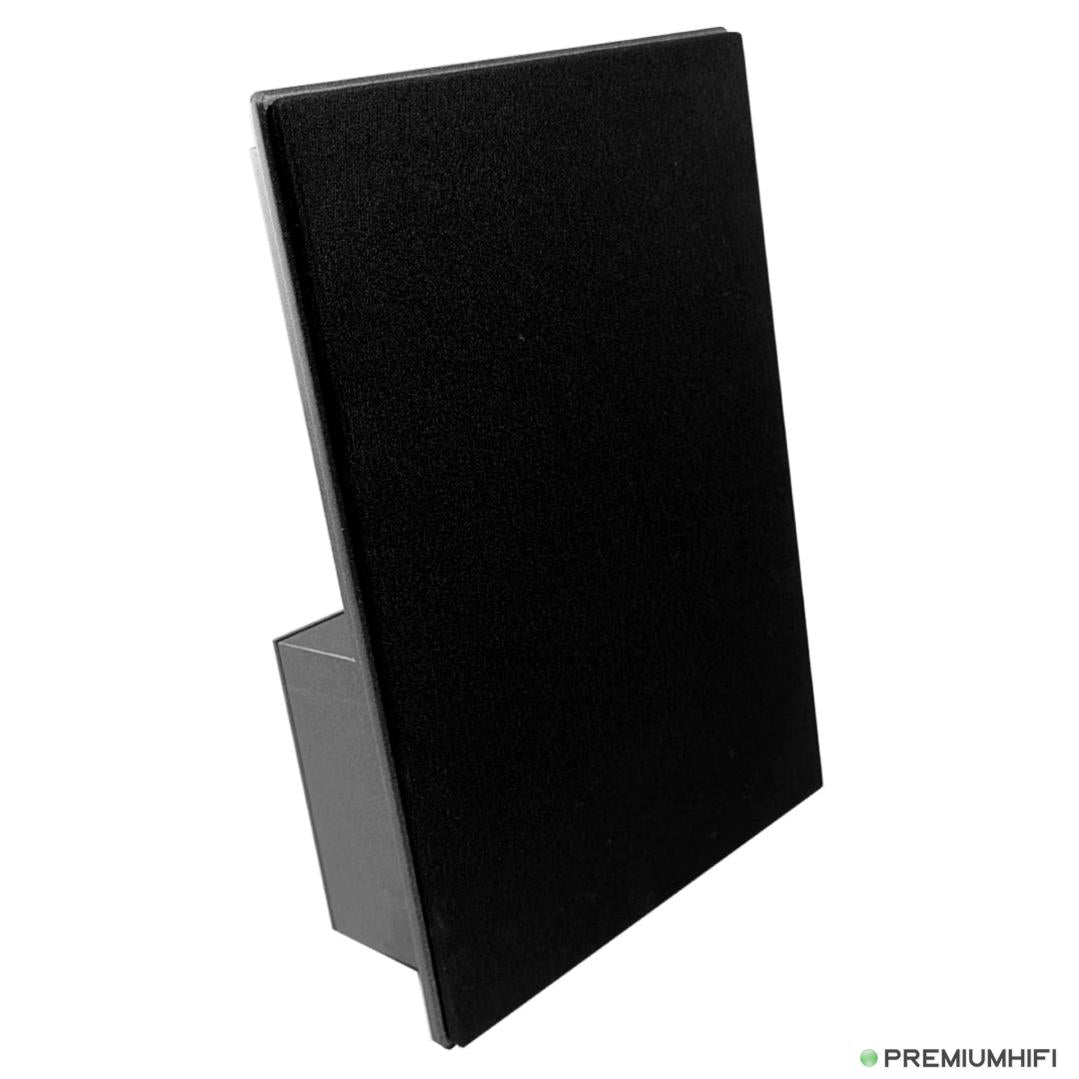

• 📦 Reflector Audio Stage Sound Panels with grills (Pair)

🔄 Compatibility

Compatible with most stereo amplifiers and AV receivers supporting 8 Ω loads. Ideal for use with integrated amps, or multi-room systems. Can be installed in walls, ceilings, or custom acoustic enclosures from 15–30 L with a 70 mm × 200 mm bass reflex port.

📦✈️ Shipping & Returns

• 📦 Insured worldwide delivery
• 🔄 14-day return policy
• 🛡️ 2-year EU warranty

⚠️ Warning

⚠️ Listening to these panels may cause an uncontrollable urge to redesign your living room for perfect acoustic symmetry. You have been warned.
