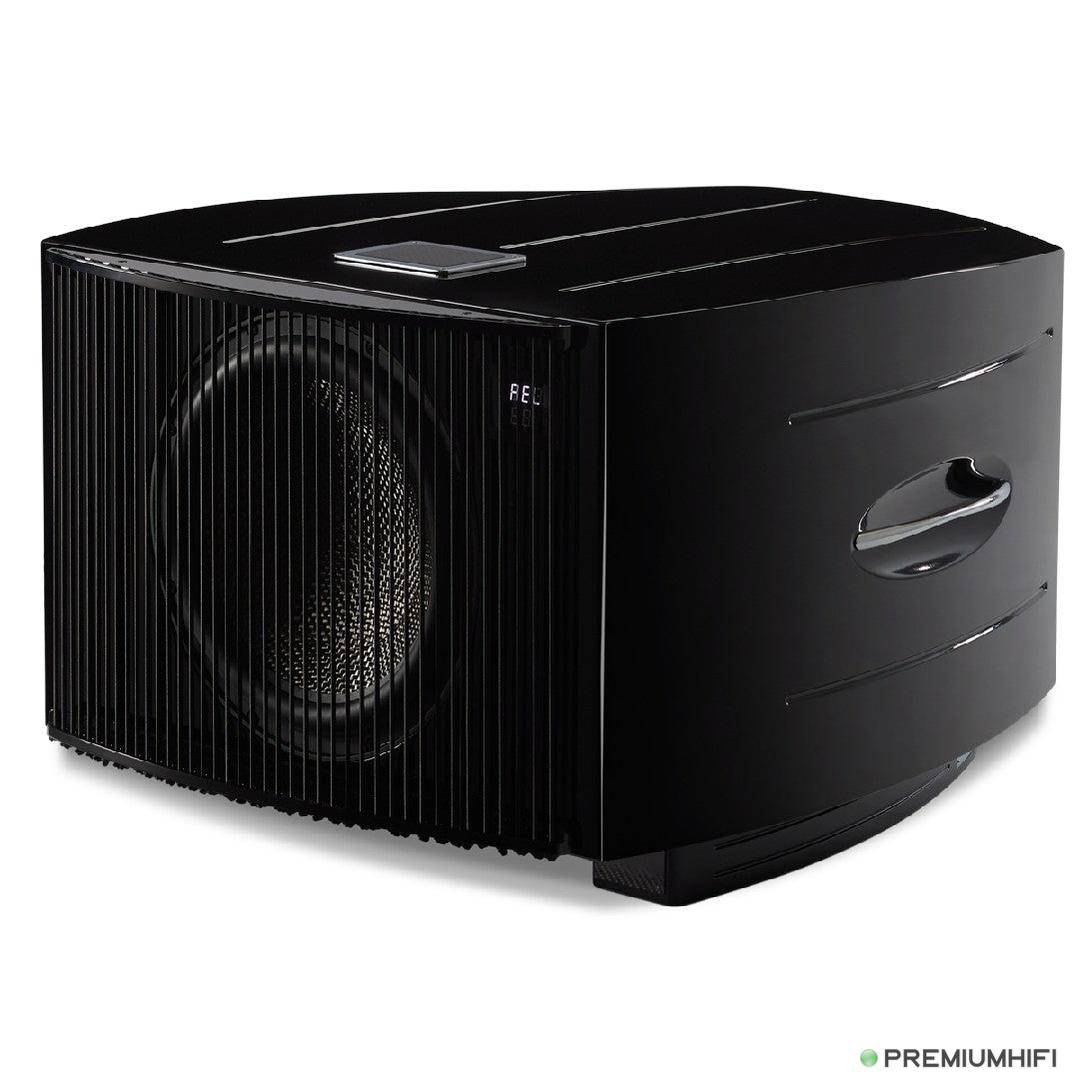

REL No.32

REL No.32 subwoofer Specifications
TYPE
Closed box, front-firing driver

ACTIVE DRIVER SIZE & MATERIAL
15 in., 380mm long-throw, carbon fibre cone with inverted carbon fibre dust cap

PASSIVE RADIATOR SIZE & MATERIAL
N/A

LOW FREQUENCY EXTENSION
15Hz at -6 dB

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA and XLR, LFE RCA, LFE XLR

OUTPUT CONNECTORS
High Level Neutrik Speakon, LFE XLR, Line XLR

POWER OUTPUT
1,000 watts (RMS)

AMPLIFIER TYPE
Pure Class D

WIRELESS CAPABILITY
Yes - Rel Airship II [required] sold separately

DUAL PARAMETRIC FILTER
Yes

Protection System
FULLY ELECTRONIC SET SAFE
Yes

D.C. FAULT
Yes

OUTPUT SHORT
Yes

MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets

FUSES
7 Amp semi delay 230 volts operation, 15 Amp semi delay 115 volts operation

Dimensions
W X H X D
29 1/4 x 21 x 32 1/8 in. (743 x 540 x 816 mm)

NET WEIGHT
187 lbs. (85 kg), shipping weight - 225 lbs. (102kg)

FINISH
Piano Black Lacquer, 12 coats

Supplied Accessories
MAINS LEAD
Yes

NEUTRIK SPEAKON
Yes (10 Meters Nominal)

INTERCONNECT
USERS MANUAL
Yes
