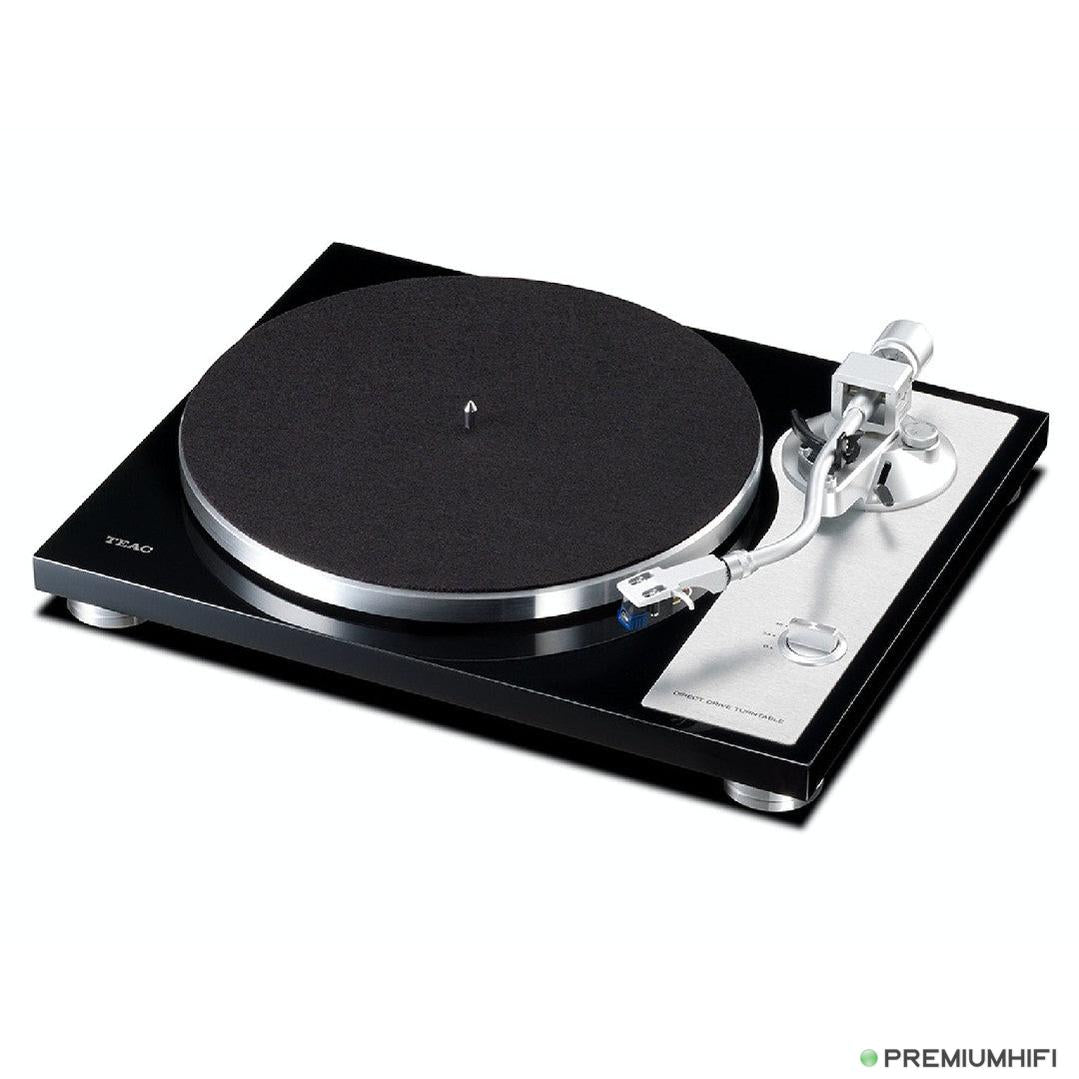

TEAC TN-4D-SE Direct Drive Turntable Black

TEAC TN-4D-SE Direct Drive Turntable Black Spec description
Turntable section
Type Direct Drive
Motor Brush-less DC Motor
Rotation Speeds 33-⅓ rpm, 45 rpm
Wow-and-Flutters 0.1%
S/N Ratio 67dB or higher (A-weighted, 20kHz LPF)
Turntable (Platter)
Material Aluminium Die-cast
Diameter 30cm

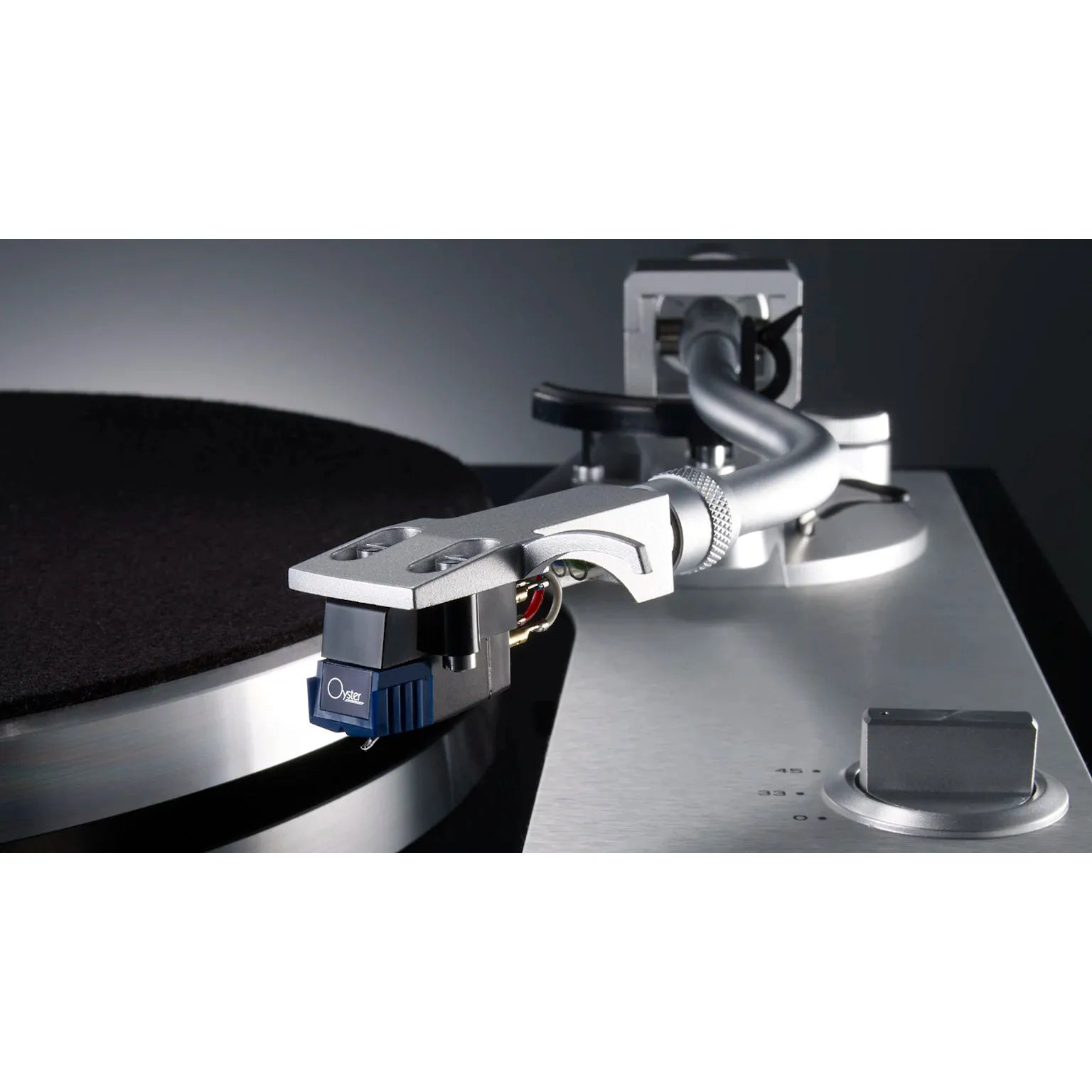

Tone-arm section
Type S-shaped, Static-balanced
Effective Length 223mm
Needle Pressure Range 0g to 5.0g
Compatible Cartridge Weight 4.0g to 13.0g
14g to 23g (including Head-shell)
Head-shell and Cartridge sections
Type MM-type (SUMIKO Oyster factory installed)
Output Voltage 4.0mV (1kHz)
Needle Pressure 1.5 to 2.5g (appropriate value: 2.3g)
Weight 5.3g
Head-shell weight 10g (including nuts, screws, and wires)
Compatible Stylus Styluses for SUMIKO Oyster

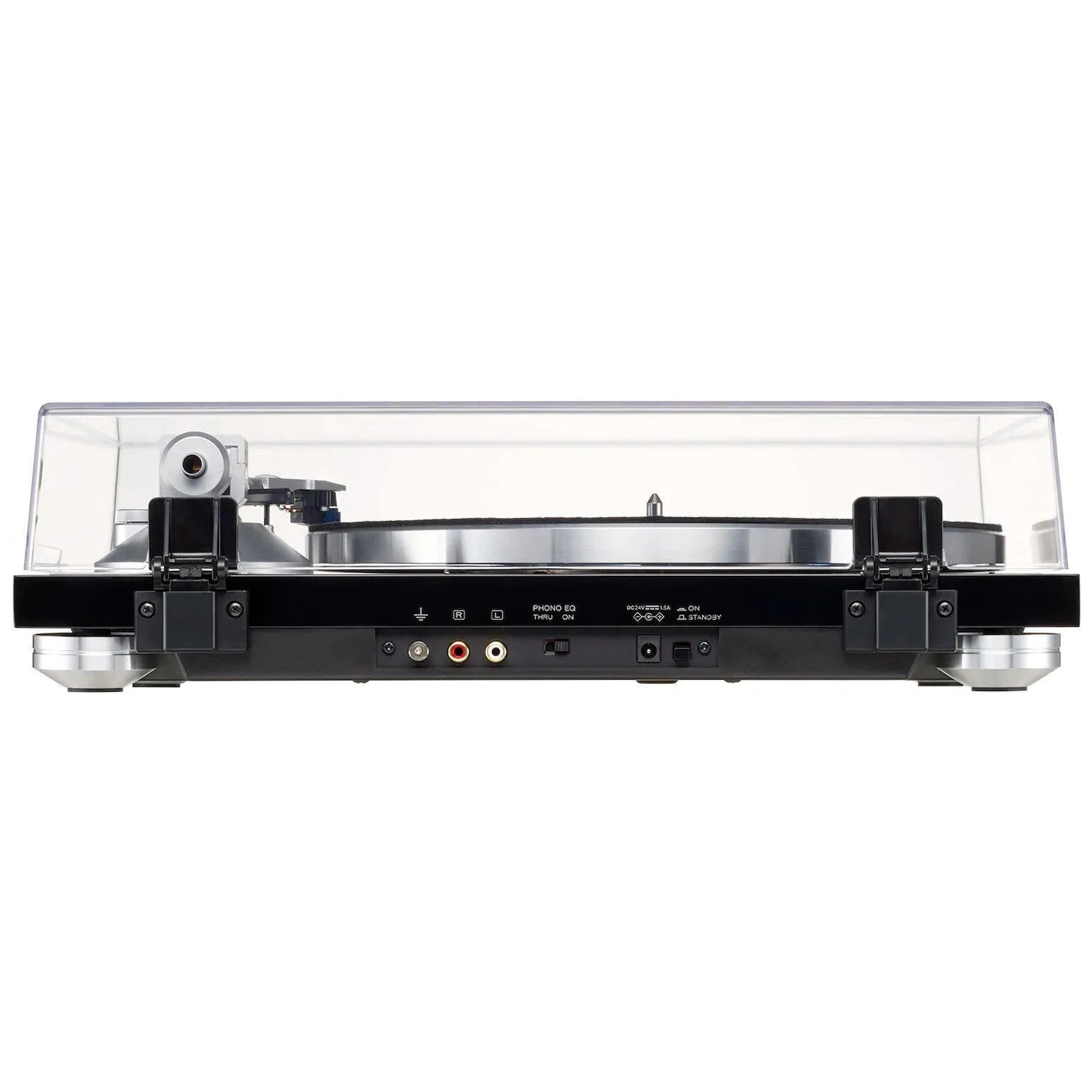

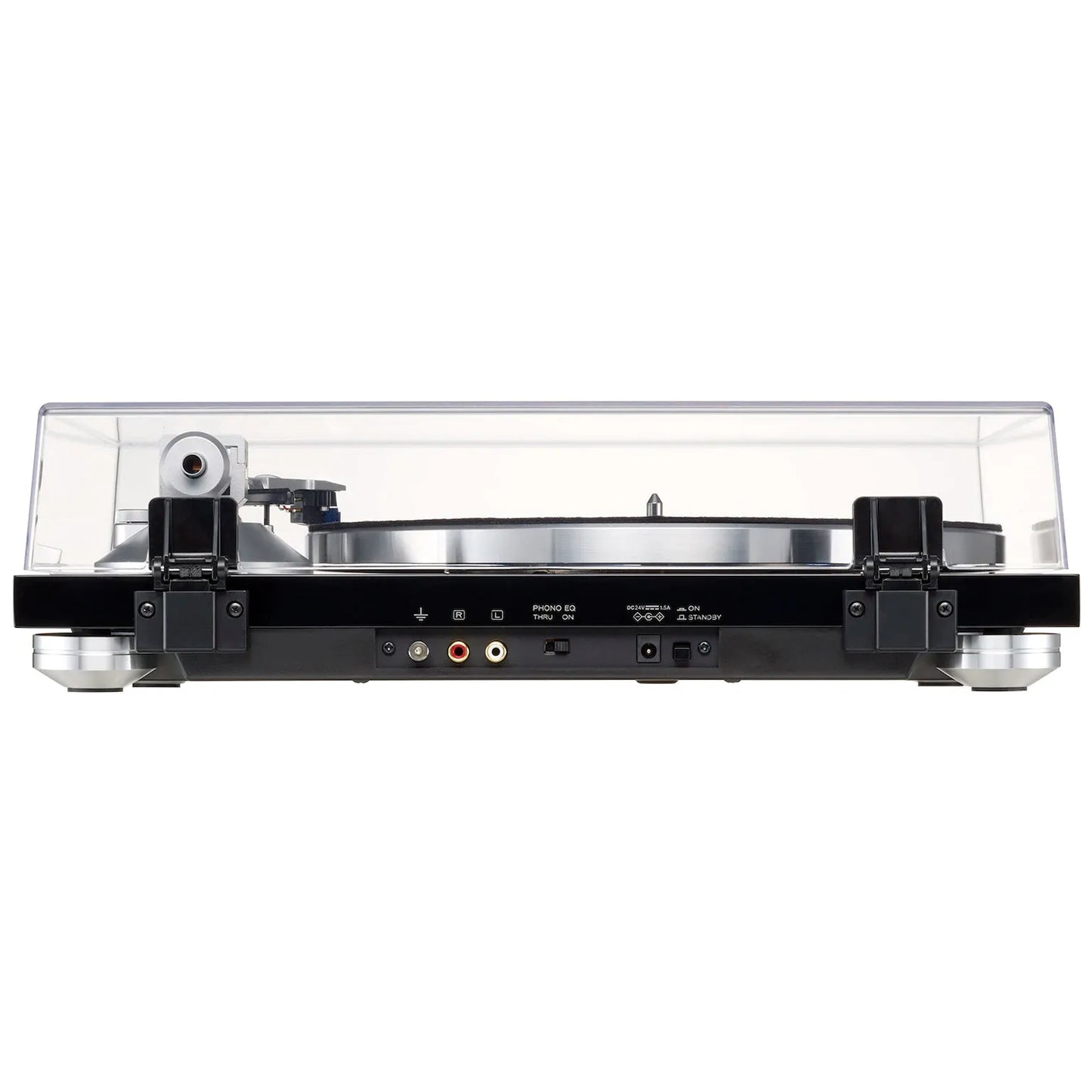

Analog Outputs
Connector RCA Pin jack × 1 pair (PHONO/LINE switchable)
Output Voltage
PHONO 4.0mV (1kHz)
LINE 224mV (–13dBV)
Operating Power AC 100 to 240V, 50/60Hz
Power Consumption 2W
Standby Power 0.5W or less
Overall Dimensions (W×H×D) 420 × 117 × 356 mm /
16.5" × 4.6" × 14.0"
Weight Approx. 6.1kg / 13.5 lbs.
Included Accessories Felt Mat, EP Adapter, Counter Weight, Head-shell (SUMIKO Oyster installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE036W-24015), Owner's Manual (including Warranty Card)
