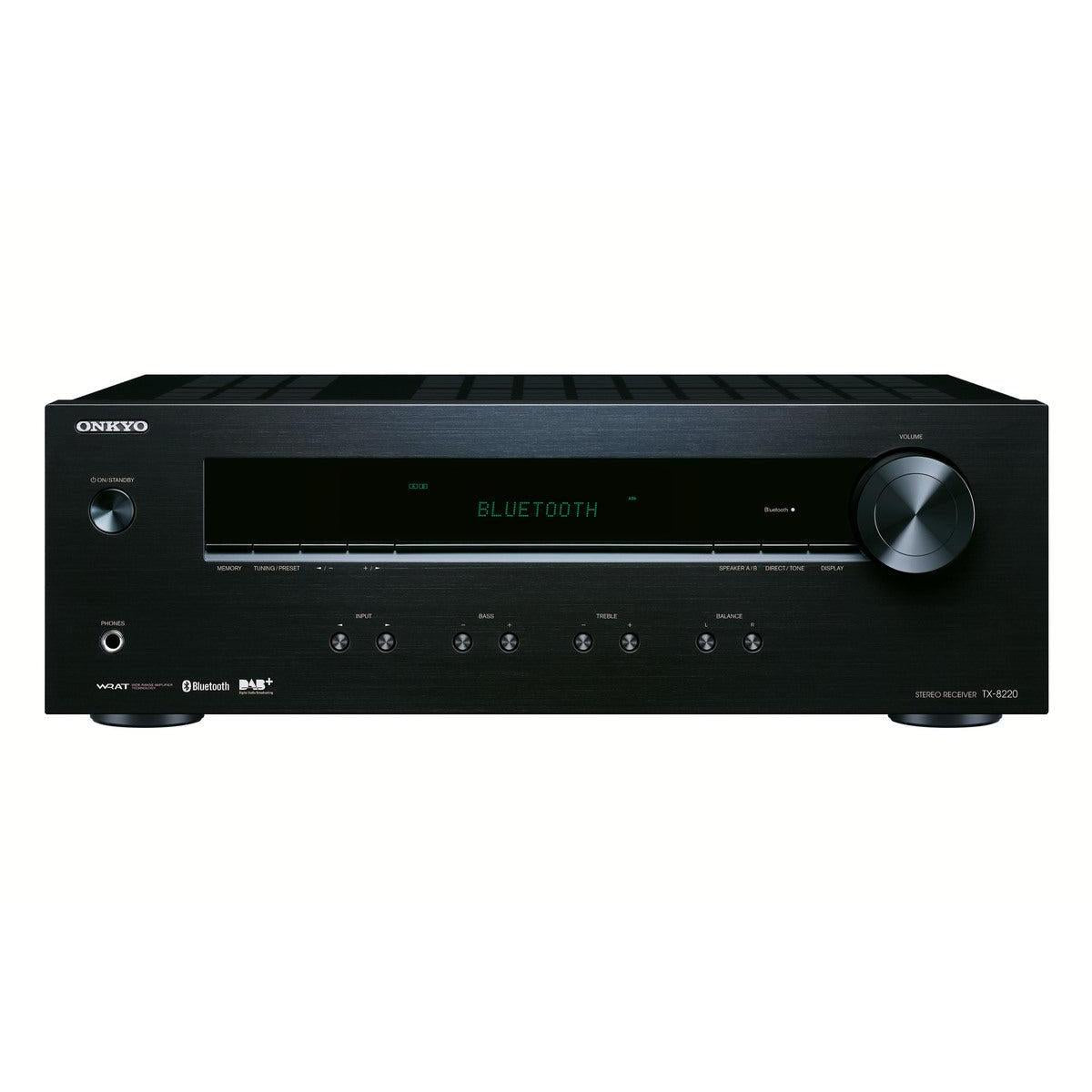

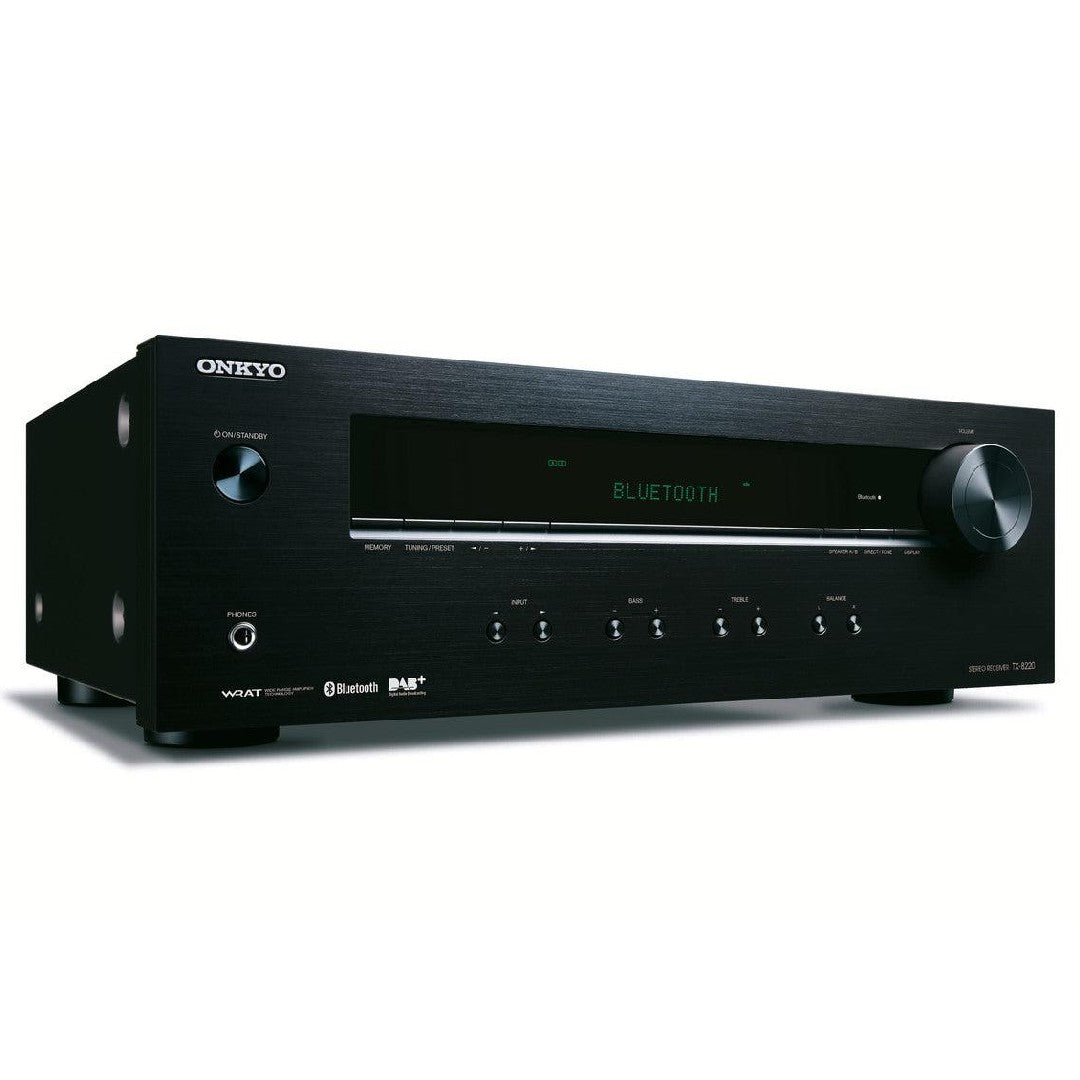

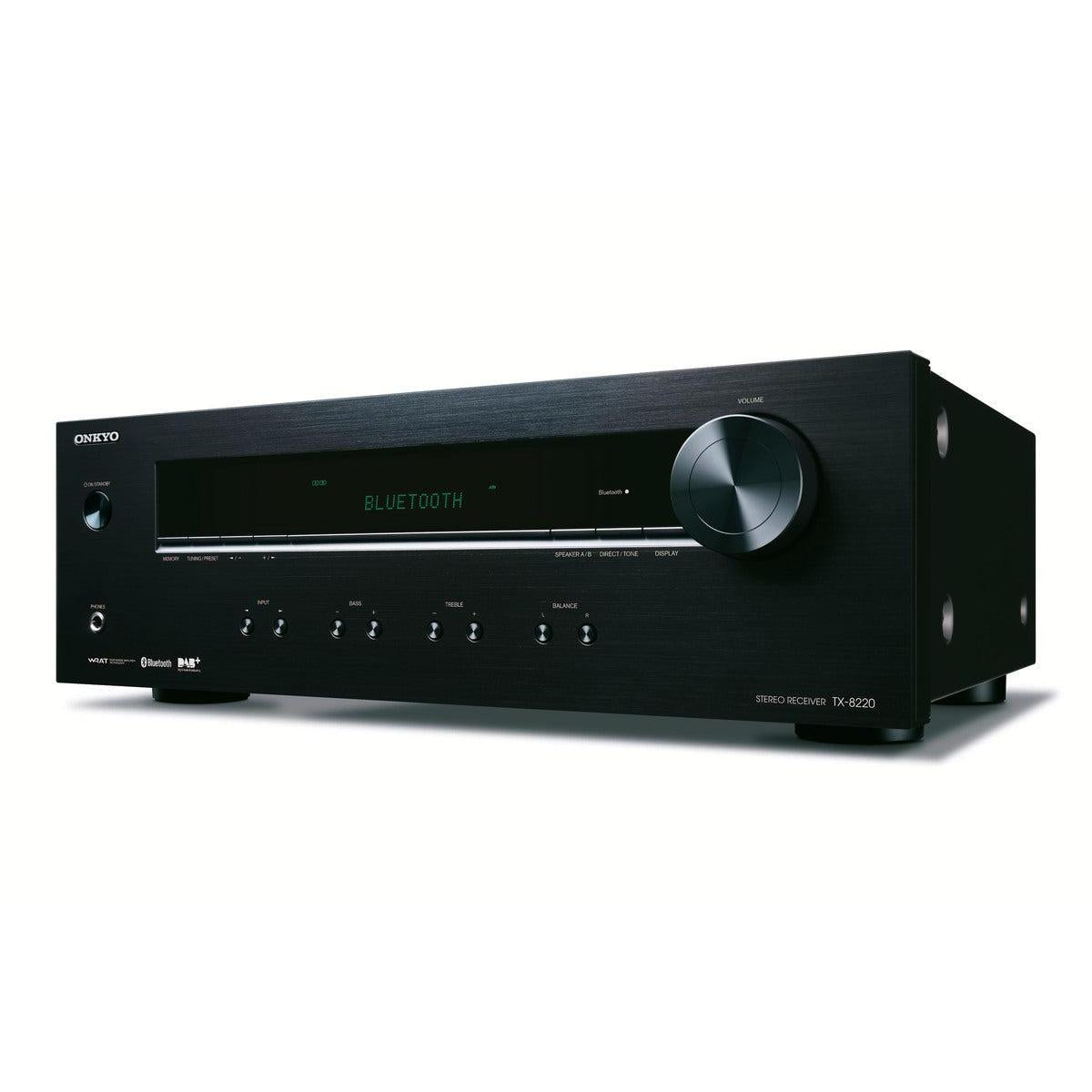

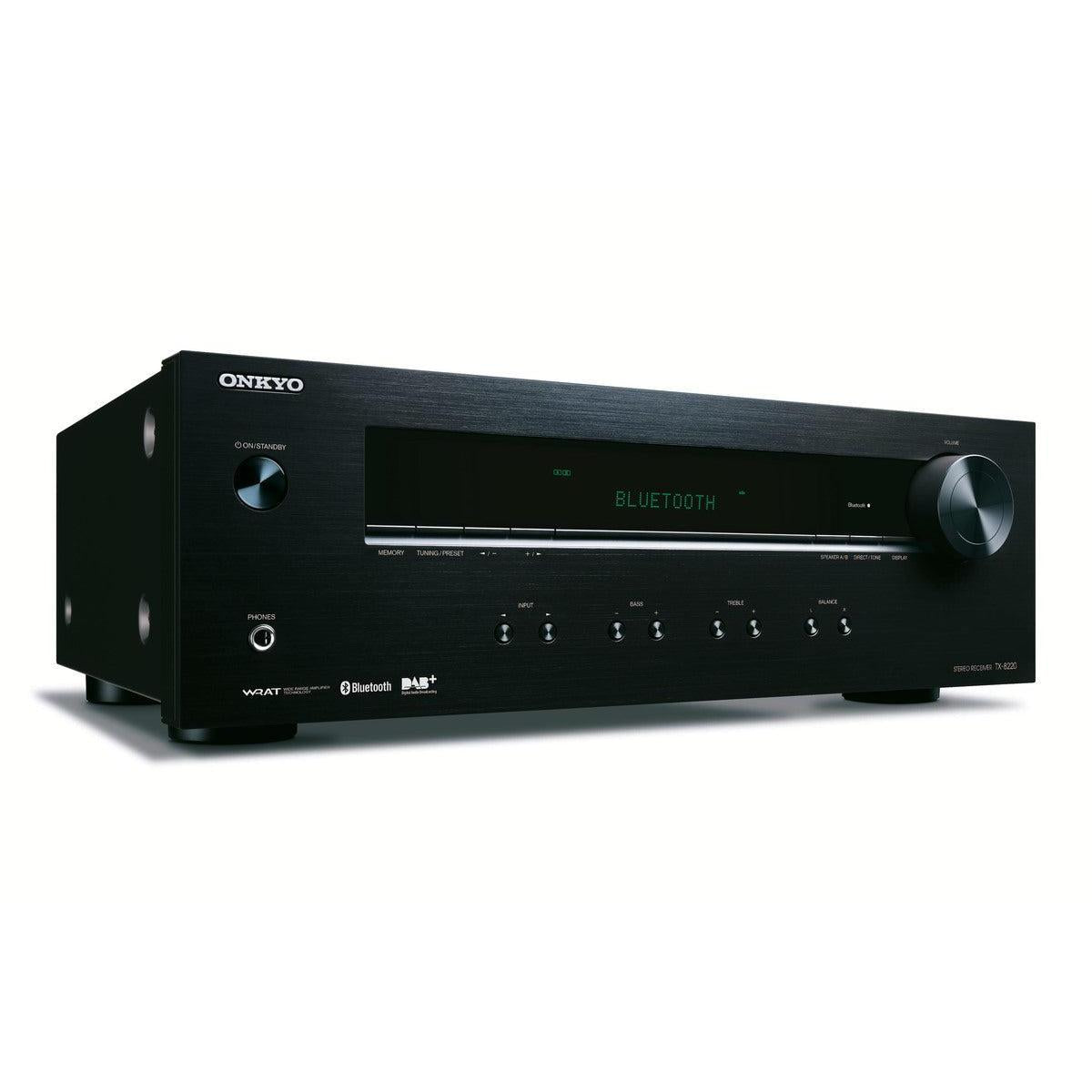

TX8220 Stereo Receiver with Built-In Bluetooth AMPLIFIER
Power Watts/Ch (6 Ohms 1kHz, 2 Ch Driven, FTC) 100, 0.10% THD
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) 45, 0.08% THD
Dynamic Power 140 W (3 Ohms, Front)
120 W (4 Ohms, Front)
80 W (8 Ohms, Front)
WRAT (Wide Range Amplifier Technology) ✓
H.C.P.S. (High Current Power Supply) -
Non-Phase-Shift Amp Design ✓ (for Realistic Sound Imaging)
6 Ohm Capable ✓
4 Ohm Capable ✓
Direct/Pure Mode ✓/-
384K/32 Bit DACs -
192K/24 Bit DACs ✓(PCM1754))
CONNECTIVITY
MISCELLANEOUS
Specs
AMPLIFIER SECTION
TUNER SECTION
GENERAL
Power Supply AC 120 V˜, 60 Hz
Power Consumption 2.7 A
Standby Power Consumption 0.4 W
No-Sound Power Consumption 20 W
Network Standby Power Consumption 2.9 W
Dimensions (W x H x D) 17 1/8" x 5 7/8" x 12 15/16" (435 x 149 x 328 mm)
Weight 15.0 lbs. (6.8 kg)
