VSXLX505

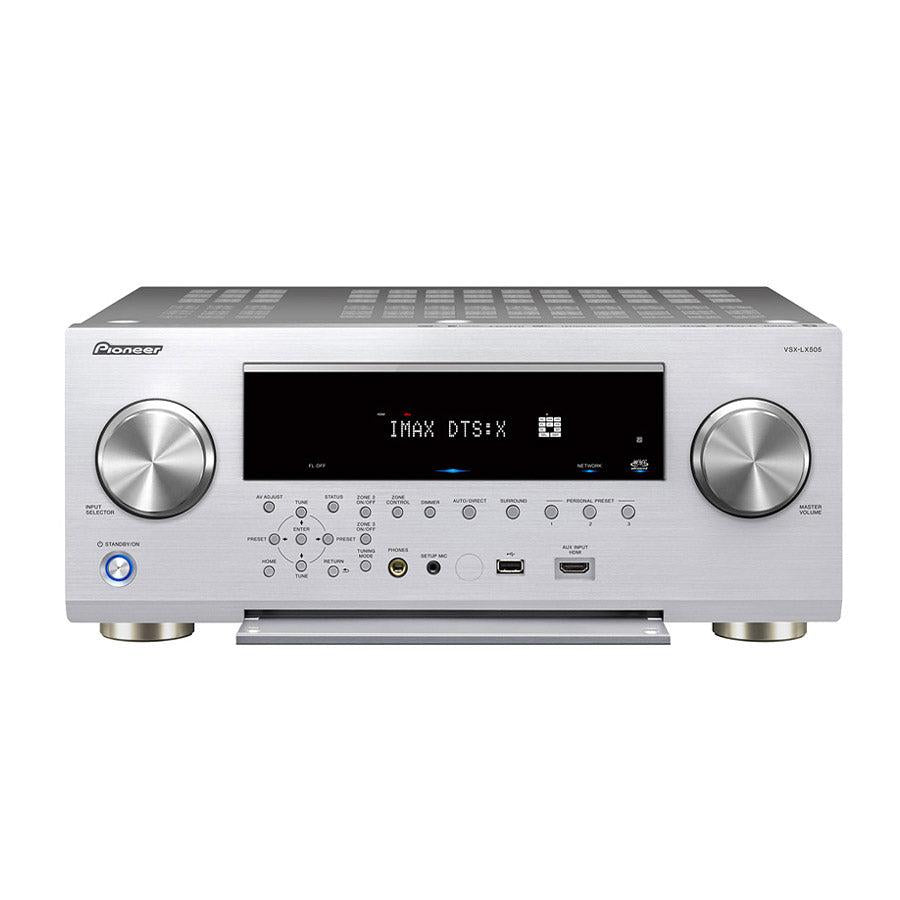

VSXLX505 PIONEER Elite 9.2 Channel Network AV Receiver Amplifier
Channels: 9.2 With External Amplifier: 11.2
Power Output per Channel: 1-Channel Driven: 230 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 120 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Audio Processing
DTS Compatibility: DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
Dolby Compatibility: Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD
Auro 3D Support: No
Upmixing Technology: Dolby Surround, Dolby Atmos Height Virtualization Technology
DAC: 192 kHz / 24-Bit
Video
HDR Compatibility: HDR10+, Hybrid Log Gamma
Upscaling: 1080p to 8K UHD
GUI: Yes
Connectivity
Rear A/V Inputs: 6 x HDMI 2.1 1 x USB Type-A 1 x Digital Coaxial 1 x Optical TOSLINK 1 x 3RCA Component 2 x RCA Composite 4 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs: 1 x HDMI 1 x HDMI Zone 2 1 x Stereo RCA Zone 2 / Zone B Line-Out 1 x Stereo RCA Zone 3 Pre-/Line-Out 1 x 9-Channel RCA Pre-Out 2 x RCA Subwoofer Pre-Out
Front I/O: 1 x HDMI Aux Input 1 x USB Type-A Input 1 x 1/8" / 3.5 mm Setup Mic Input 1 x 1/4" / 6.35 mm Headphone Output
Other Rear I/O: 1 x RJ45 (Ethernet) Input/Output 1 x DE-9 (RS-232C) Input 1 x 1/8" / 3.5 mm (IR) Input 1 x 1/8" / 3.5 mm (IR) Output 1 x 1/8" / 3.5 mm (12 V Trigger) Input 1 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x FM Coaxial F-Type Input 1 x AM Block Input
Speaker Connectors: 11 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround)
HDCP Support: Version 2.3
HDMI Compression Modes: Not Specified by Manufacturer
Audio Return Channel (ARC): ARC, eARC
HDMI CEC: Yes
Media Card Slot: None
Wireless Connectivity
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Supported Audio Codecs: AAC, SBC, aptX, aptX HD
Wireless Audio Protocols: AirPlay 2, Chromecast built-in, DTS Play-Fi
Control
External Control Support: Android/iOS Control App
Virtual Assistant: Works with Alexa, Works with Google Assistant
Tuner Section
Tuner Type: AM, FM
Number of Tuner Presets: 40 Stations
Power
AC Input Power: 120 VAC, 60 Hz
Power Consumption: Active: 850 W Standby: 0.1 W
Physical
Dimensions (W x H x D): 17.1 x 7.3 x 15.2" / 435.0 x 185.0 x 386.0 mm
Weight: 28.7 lb / 13 kg
Packaging Info
Package Weight: 32.835 lb
Box Dimensions (LxWxH): 20.7 x 19.2 x 13.2"
